Gantner GAT NET.Lock 7000 Installation, Configuration & Operation

Electronic rfid locker locks
Hide thumbs Also See for GAT NET.Lock 7000:
Table of Contents

Advertisement

Quick Links

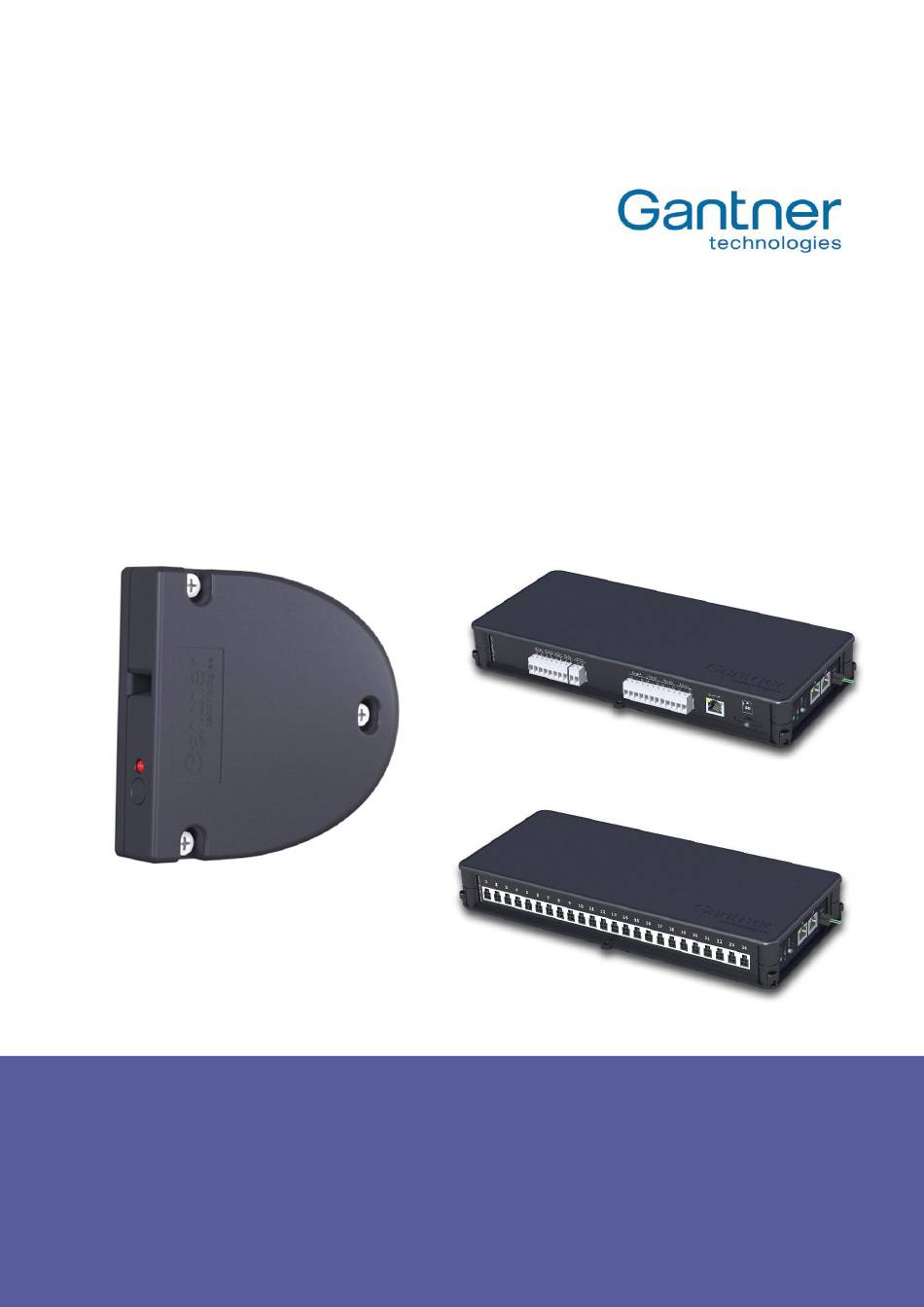

GAT NET.Lock 7000 System
Electronic RFID Locker Locks
Installation, Configuration, Operation
Document Version 3.0
www.gantner.com
HB_GAT-NETLOCK7000--EN_30
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GAT NET.Lock 7000 and is the answer not in the manual?

Questions and answers

Related Manuals for Gantner GAT NET.Lock 7000

Summary of Contents for Gantner GAT NET.Lock 7000

  • Page 1 GAT NET.Lock 7000 System Electronic RFID Locker Locks Installation, Configuration, Operation Document Version 3.0 www.gantner.com HB_GAT-NETLOCK7000--EN_30...
  • Page 2 GAT NET.Lock 7000 System www.gantner.com HB_GAT-NETLOCK7000--EN_30...
  • Page 3 Dear customer, we congratulate you on having selected a product (device resp. software) of GANTNER Electronic GmbH. So that our product functions in your installation with safety and to your complete satisfaction, we take this opportunity to familiarise you with the following...
  • Page 4 GAT NET.Lock 7000 System 14. However, even if you just want to tell us that everything has functioned perfectly, we still look forward to hear from you. We wish you a successful application of our appliances. We will be pleased to welcome you as a customer again soon.

  • Page 5: Table Of Contents

    Door Status Contact ..........................15 Mounting in Lockers with Non-Metallic Doors ..................16 3.5.1 Important Measures when Mounting the GAT NET.Lock 7000 and Bolt Set (Non-Metal Doors) . 16 3.5.2 Steps for Mounting of the GAT NET.Lock 7000 at Non-Metallic Doors ........17 Mounting in Lockers with Metallic Doors ....................
  • Page 6 GAT NET.Lock 7000 System Table of Contents GAT Relaxx - Operation Software for GAT NET.Lock 7000 System ........... 34 5.6.1 User Interface ..........................34 Technical Data ............................37 GAT NET.Lock 7000 ..........................37 GAT NET.Controller S 7000 ......................... 37 GAT NET.Controller M 7000 ........................ 38 www.gantner.com...

  • Page 7: Introduction

    This manual contains all important information necessary to install the RFID locker locks GAT NET.Lock 7000 in the lockers/depots. The operation by the end user is described as well. In order to use the GAT NET.Lock 7000 locks the slave controller GAT NET.Controller S 7000 is necessary as well as the master controller GAT NET.Controller M 7000, a PC software (e.g.

  • Page 8: General Information

    GAT NET.Lock 7000 System General Information GENERAL INFORMATION System Parts The GAT NET.Lock 7000 system consists of the following system parts: 3. GAT NET.Lock BoltSet 7200 2. GAT NET.Lock BoltSet 7100 (for metallic doors, includes the 1. GAT NET.Lock 7000...

  • Page 9: Ordering Guide

    Set consisting of five master cards and an assumption of liability sheet. The master cards have master key func- tionality and can be used to open all lockers in an GAT NET.Lock 7000 locker system (e.g. used for service- and ®...
  • Page 10 GAT NET.Lock 7000 System General Information www.gantner.com HB_GAT-NETLOCK7000--EN_30...

  • Page 11: Basic Function Of The Gat Net.lock 7000 System

    The various operating modes enable the flexible use of these locks. The GAT NET.Lock 7000 is installed on the inner side of the locker. A bolt set is mounted on the inside of the locker door.

  • Page 12: Rfid Technology

    Electronic component for amplifying the RFID reading field of the GAT NET.Lock 7000. A booster is often used to extend the RIFD reading range of the GAT NET.Lock 7000, e.g. at metallic or thick doors or small data carriers. The bolt sets for the GAT NET.Lock 7000 already include boosters - 1 in the GAT NET.Lock BoltSet 7100 for non-metallic...

  • Page 13: Mounting

    For non-metallic doors no cut-out but only a drilling for the LED field is required. Since the reading range of the GAT NET.Lock 7000 is limited, the locker door at non-metallic doors may not be too thick.

  • Page 14: Dimension Drawings For The Mounting

    The minimum door width allowed (measured from the door shackle to the hinge) is 230 mm. If the door is narrower, the door shackle would hit the locker when the door is being closed. Figure 3.2 - Minimal door width 3.3.2 Basic Dimensions of GAT NET.Lock 7000 and the GAT NET.Lock Bolt Sets www.gantner.com HB_GAT-NETLOCK7000--EN_30...

  • Page 15: Door Status Contact

    Door Status Contact The GAT NET.Lock 7000 has a feedback which gets activated by the door contact (5) at the bolt set as soon as the locker door is closed. To guarantee the correct functionality of the GAT NET.Lock 7000 it is important, that this contact is clean and not damaged.

  • Page 16: Mounting In Lockers With Non-Metallic Doors

    During the mounting, please pay particular attention to the following points: - When the door is pressed shut, the gap between the bolt set and the front of the GAT NET.Lock 7000 must not exceed 0.5 mm. Ideally the bolt set should touch the front of the lock (see measure in Figure 3.5).

  • Page 17: Steps For Mounting Of The Gat Net.lock 7000 At Non-Metallic Doors

    GAT NET.Lock 7000 System Mounting - If right and left doors are used in a mix, please note the LED positions, since the GAT NET.Lock 7000 is mounted upside-down on the left doors, compared to the right doors. Figure 3.6 - LED positions of GAT NET.Lock 7000 at right and left doors Before mounting all locks of the locker system a test installation of one lock in a mechanically finalized locker and a subsequent function check must be performed like described below.

  • Page 18: Mounting In Lockers With Metallic Doors

    Mounting in Lockers with Metallic Doors In lockers with metallic doors the GAT NET.Lock 7000 is mounted on the left or right inner locker wall (depending if it is a right or left locker). In the door 2 cut-outs have to be made - one on the inside door sheet and one on the outside door sheet.

  • Page 19: Cut-Outs In The Locker Door

    - The door thickness must be between 18 and 26 mm (see Figure 3.7). - When the door is pressed shut, the gap between the bolt set and the front of the GAT NET.Lock 7000 must not exceed 0.5 mm (see measure in Figure 3.7). Ideally the bolt set should touch the front of the lock.

  • Page 20: Steps For Mounting Of The Gat Net.lock 7000 At Metallic Doors

    3.6.3 Steps for Mounting of the GAT NET.Lock 7000 at Metallic Doors Please perform the following steps in order to mount the GAT NET.Lock 7000 at metallic doors.  Drill the 3 holes (3) for the GAT NET.Lock 7000 into the locker wall.

  • Page 21: Points To Be Observed During Installation

    Replacement after a Burglary Attempt If a burglary (forced opening) has been attempted on a locker, the entire GAT NET.Lock 7000 must be replaced by a new one. The bolt set with the door shackle must be replaced as well.
  • Page 22 GAT NET.Lock 7000 System Mounting www.gantner.com HB_GAT-NETLOCK7000--EN_30...

  • Page 23: Electrical Connection

    Electrical Connection ELECTRICAL CONNECTION This chapter describes the electrical connection of a GAT NET.Lock 7000 and also of the control units GAT NET.Con- troller S 7000 and GAT NET.Controller M 7000. Cable connection must only be done in powerless state and only by trained and specialised personnel.

  • Page 24: Cable Connection Of The Gat Net.lock 7000

    4.2.2 Cable Outlets Cut-out one of the cable outlets (1 in Figure 4.2) in order to feed the cable out of the GAT NET.Lock 7000 housing. Depending on the orientation of the GAT NET.Lock 7000 and the cable routing in the locker use the outlet which allows cable routing with minimal length and efford.

  • Page 25: Connections At The Slave Controller Gat Net.controller S 7000

    Connections at the Slave Controller GAT NET.Controller S 7000 4.3.1 GAT NET.Lock 7000 Connection The locks GAT NET.Lock 7000 are connected via the 4-pin MOLEX connectors on the sockets at the side panel of the GAT NET.Controller S 7000. Attention, always use the original cables of GANTNER Electronic GmbH. The connection cable of the lock must not be modified (shortened or extended).
  • Page 26 GAT NET.Lock 7000 System Electrical Connection Observe the following values for the number of connectable controllers per interface: - A maximum of 8 slave controllers per RS 485 line - Maximum of one RS 485 line length = 200 m Figure 4.5 - Maximal RS 485 line length...

  • Page 27: Power Supply

    GAT NET.Lock 7000 System Electrical Connection 4.3.3 Power Supply The GAT NET.Controller S 7000 is connected to the mains power supply via an external power supply unit. Depending on the type of power supply unit and the country mains voltage may be U...

  • Page 28: Led Signals And Buttons

    1. See "5.3. Restart a Controller GAT NET.Controller S 7000 or GAT NET.Controller M 7000" 2. See "5.4. Delete Configuration Parameters of a Controller (= Reset to Default Settings) " - MODE: See "5.1 Antenna Adjustment of the GAT NET.Lock 7000" www.gantner.com HB_GAT-NETLOCK7000--EN_30...

  • Page 29: Connections At The Master Controller Gat Net.controller M 7000

    GAT NET.Lock 7000 System Electrical Connection Connections at the Master Controller GAT NET.Controller M 7000 4.4.1 Connection of the Slave Controllers GAT NET.Controller S 7000 to the Master Controller The slave controllers are connected to the master controllers via the RS 485 interface using RJ 45 plugs. The con- nection must be made at the "RS 485 SLAVES"...

  • Page 30: Connection Of The Power Supply

    GAT NET.Lock 7000 System Electrical Connection 4.4.3 Connection of the Power Supply The GAT NET.Controller M 7000 is connected via an external power supply unit to the mains power supply, i.e. depending on the type of unit and the country of use U 230 V or U 115 V (please refer to technical data).

  • Page 31: Configuration And Operation

    (i.e. the user) is allowed to use the locker, a command will be sent so that the GAT NET.Lock 7000 will lock the locker. With a push button at the front of the GAT NET.Lock 7000 the lock detects, if the locker door is closed or not. This allows indication of the locker status by a PC software.

  • Page 32: Restart A Controller Gat Net.controller S 7000 Or Gat Net.controller M 7000

    GAT NET.Lock 7000 System Configuration and Operation Restart a Controller GAT NET.Controller S 7000 or GAT NET.Controller M 7000 In certain situations (e.g. after an error or network problems) it may be helpful to restart a master or slave controller.

  • Page 33: Status Information At Gat Net.controller S 7000 And Gat Net.controller M 7000

    GAT NET.Lock 7000 System Configuration and Operation Status Information at GAT NET.Controller S 7000 and GAT NET.Controller M 7000 LED 2 shows the following status information at a slave and master controller. 5.5.1 Slave Controller LED 2 Status Information Emergency operation (no connection, neither to the master controller nor to the server/software)

  • Page 34: Gat Relaxx - Operation Software For Gat Net.lock 7000 System

    GAT Relaxx installation CD. General In order to configure, operate and monitor the locker system, GANTNER Electronic GmbH offers the PC software GAT Relaxx. GAT Relaxx runs on a Microsoft Windows PC (for supported operating systems see the installation manual of GAT Relaxx).
  • Page 35 6 - Locker overview: Here the lockers (GAT NET.Lock 7000) of the controller selected on the left are displayed together with their current states. 7 - Information area: Here, the information regarding the locker selected in middle area (6) is displayed.
  • Page 36 GAT NET.Lock 7000 System Configuration and Operation Organization View Figure 5.16 - GAT Relaxx, Organization View The areas (5), (6) and (7) serve a somewhat different purpose in the user interface: 5 - System overview: Here the lockers of a system are divided logically into "areas", (e.g. "male locker room"...

  • Page 37: Technical Data

    GAT NET.Lock 7000 System Technical Data TECHNICAL DATA GAT NET.Lock 7000 Nominal voltage U Power supply: Via connection cable from the slave controller Average power consumption: 60 mW RFID frequency: 13.56 MHz Retaining force: Min. 1,500 N Force on inner side of the door: Max.

  • Page 38: Gat Net.controller M 7000

    GAT NET.Lock 7000 System Technical Data GAT NET.Controller M 7000 Nominal voltage U 24 V Power supply unit: External power supply units (use only power supply units approved by GANT- NER Electronic GmbH for the GAT NET.Controller 7000) Average power consumption: GAT Lock Network: Max.
  • Page 40 GANTNER Electronic GmbH GANTNER Electronic GmbH Deutschland GANTNER Electronics PTY LTD Australia Montafonerstraße 8 Industriestraße 40F Unit 6 15/17 Chaplin Drive, West Lane Cove 6780 Schruns, Austria 44894 Bochum, Germany Sydney NSW 2006, Australia T +43 5556 73784-0 T +49 234 58896-0...
