Summary of Contents for Vident iEasy320HD

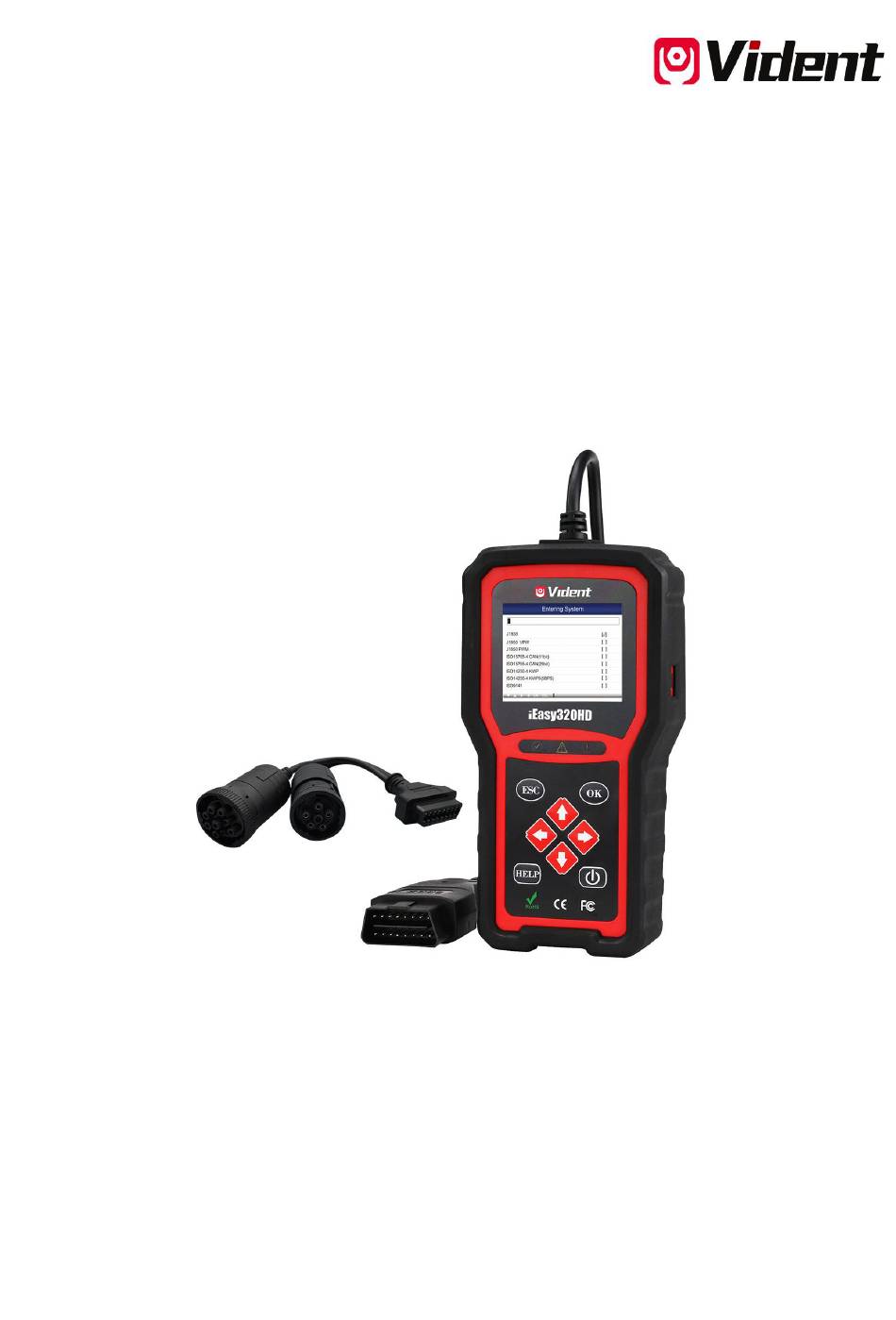

- Page 1 Diesel&Petrol OBDII/EOBD+CAN Code Reader iEasy320HD USER MANUAL SHENZHEN VIDENT TECHNOLOGY CO., LTD Copyright ©2017 Vident Tech.
-
Page 2: Limited One Year Warranty
The exclusive remedy for any automotive meter found to be defective is repair or replacement, and VIDENT shall not be liable for any consequential or incidental damages. -
Page 3: Table Of Contents
4.2.3.1 View All Items................9 4.2.3.2 Select Items................10 4.2.3.3 View Graphic Items..............11 4.3 Tool Setup ................... 11 4.4 Tool Information ................... 13 4.5 Help ..................... 13 5. Update......................13 6. FAQ ......................14 Diesel&Petrol OBDII/EOBD+CAN Code Reader iEasy320HD User Manual V1.0... -
Page 4: Introduction
This section explains the basic elements of fault codes for J1587/J1708 and J1939 data bus protocols, how to view these codes on iEasy320HD, and what they mean. Each fault code on iEasy320HD contains three distinct pieces of information, as described below. -
Page 5: Tool Description
ESC button - cancels an action and returns to previous screen or level. OK button - confirms an action or movement and moves to next level. Power button - switches on the tool. Diesel&Petrol OBDII/EOBD+CAN Code Reader iEasy320HD User Manual V1.0... -
Page 6: Specification
2.OBDII PIN DLC adaptor 3.Adaptor for 6pin and 9pin 3.4 Power supply The power of the iEasy320HD is provided via the vehicle's Data Link Connector(DLC). Follow the steps below to power it up: 1.Find DLC on heavy-duty vehicle A plastic DLC cover may be found for some vehicles and you need to remove it before plugging the 6 PIN and 9 PIN DLC diagnostic adaptor. -
Page 7: Diagnose
In Figure 4-1, use[▲ ][▼] button to select [Diagnose] and press [ok], the system will switch to the following selection: Figure 4-2 If [Auto Scan] is selected, following figure will appear: Figure 4-3 If [manual select] is chosen, following figure will appear: Diesel&Petrol OBDII/EOBD+CAN Code Reader iEasy320HD User Manual V1.0... - Page 8 Press [▲ ][▼ ]button to highlight [J1587/1708 6/9 Pin] or [J1587/1708 16 Pin], and press [OK], the following screen will appears: Figure 4-6 If [J1939] is selected in Figure 4-5, press [OK], the screen will appear as follows: Diesel&Petrol OBDII/EOBD+CAN Code Reader iEasy320HD User Manual V1.0...
-
Page 9: Read Dtc
After selecting the system item, press [OK],the screen will appear as below: Figure 4-8 4.2.1 Read DTC Select [Read DTC] and press [OK] in Figure 4-8, it will jump to the following screen: Figure 4-9 Diesel&Petrol OBDII/EOBD+CAN Code Reader iEasy320HD User Manual V1.0... -
Page 10: Clear Dtc
Press [▲ ][ ▲]to view the next or previous code; press [ESC] to exit and return to the Function screen. 4.2.2 Clear DTC Select [Clear DTC] and press [OK], the system will switch to the following screen: Diesel&Petrol OBDII/EOBD+CAN Code Reader iEasy320HD User Manual V1.0... - Page 11 Press [OK] to erase DTCs, and if successfully, "Succeed" will be shown on the screen. Press [ESC] to exit and return to the Function screen.If it fails to communicate with ECU, a screen similar to Figure 4-14 will appear: Figure 4-14 Diesel&Petrol OBDII/EOBD+CAN Code Reader iEasy320HD User Manual V1.0...
-
Page 12: Live Data
Figure 4-15: Figure 4-15 4.2.3.1 View All Items Use [▲ ][▼ ]button to select [View All Items] and press [OK], a screen similar to Figure 4-16 will appear: Figure 4-16 Diesel&Petrol OBDII/EOBD+CAN Code Reader iEasy320HD User Manual V1.0... -
Page 13: Select Items
Press [OK] button to select items or remove selection, and press [ ][ ]to turn page,the screen will appear as shown in Figure 4-17: Figure 4-18 After selecting items and press [ESC], it will enter Figure 4-18. See Figure 4-18 shown as above. Diesel&Petrol OBDII/EOBD+CAN Code Reader iEasy320HD User Manual V1.0... -
Page 14: View Graphic Items
Figure 4-20 will appear: Figure 4-19 Figure 4-20 4.3 Tool Setup Select [Tool Setup] in the main menu and press [OK],the system will enter the following screen: Diesel&Petrol OBDII/EOBD+CAN Code Reader iEasy320HD User Manual V1.0... - Page 15 Beeper is set to ON. 2) Language Select [Language] in the main menu and press [OK]to enter the setting screen, as shown in Figure 4-23. Diesel&Petrol OBDII/EOBD+CAN Code Reader iEasy320HD User Manual V1.0...
-
Page 16: Tool Information
Select [Unit System Setting] in the main menu and press [OK]to enter the setting screen, as shown in Figure 4-24. Figure 4-24 4.4 Tool information Tool Information: includes software version, hardware version, serial number,supported. 4.5 Help This function is to introduce OBDII and HD OBD. 5 Update Diesel&Petrol OBDII/EOBD+CAN Code Reader iEasy320HD User Manual V1.0... -
Page 17: Faq
Here we list some frequently asked questions and answers relating to iEasy320HD. Question: System halts when reading data stream. What is the reason? Answer: It may be caused by a slackened connector. Please turn off the iEasy320HD, firmly connect the connector, and switch on it again.
