Precautions
• This operation uses up to 1100kg of pressure and therefore extreme care
should be taken.
• Always wear head and eye protection.
• Make sure the threads are always well greased.
• Always fit the safety hooks provided to help prevent the spring compressors
sliding together.
Guarantee
If this product fails through faulty materials or workmanship, contact our
service department direct on: +44 (0) 1926 818186. Normal wear and tear
are excluded as are consumable items and abuse.
www.lasertools.co.uk
Distributed by The Tool Connection Ltd
Kineton Road, Southam, Warwickshire CV47 0DR
T +44 (0) 1926 815000 F +44 (0) 1926 815888
info@toolconnection.co.uk www.toolconnection.co.uk
www.lasertools.co.uk
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tool Connection Coil Spring Compressor 5560
Summary of Contents for Tool Connection Coil Spring Compressor 5560
- Page 1 • Make sure the threads are always well greased. • Always fit the safety hooks provided to help prevent the spring compressors sliding together. Guarantee If this product fails through faulty materials or workmanship, contact our service department direct on: +44 (0) 1926 818186. Normal wear and tear are excluded as are consumable items and abuse. www.lasertools.co.uk Distributed by The Tool Connection Ltd Kineton Road, Southam, Warwickshire CV47 0DR T +44 (0) 1926 815000 F +44 (0) 1926 815888 info@toolconnection.co.uk www.toolconnection.co.uk www.lasertools.co.uk...
- Page 2 5560 Coil Spring Compressor Complete with safety hooks INSTRUCTIONS • Maximum extension: 235mm • Working pressure: 1200kgf (kilogram/force) • An essential service tool www.lasertools.co.uk...

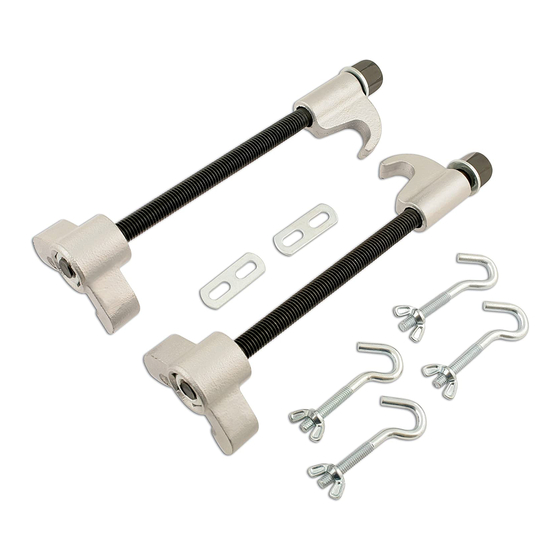

- Page 3 Contents Component 2 x Compressor Units 4 x Safety Hooks 2 x Safety Hook Plates...
- Page 4 Instructions for use 1. Loosen both compressors so the compressor hooks are at, or close to, their maximum distance apart. Remember the tool will need more length to release the tension when the spring is removed from the tool. 2. Place each compressor either side of the coil spring opposite each other. Ensure the compressor hooks are an equal distance apart. 3. Tighten each compressor just enough to hold them in place and fit the safety hooks as shown across the backs of the single hooks. 4. Once the clamps are secure continue to compress the spring tightening each compressor 10mm at a time. NB: always tighten the compressors evenly so the spring is compressed evenly. If the spring begins to bend or the clamps start to slide stop loading the compressors immediately. 5. Once the strut top cap can be rotated it can be removed. 6. It is just as important to be careful when removing the tool from the spring if, for example, you are changing the spring for a new one. 7. Care should also be taken when compressing the new spring ready to fit the damper.
