Summary of Contents for Primo Water PRI-450G

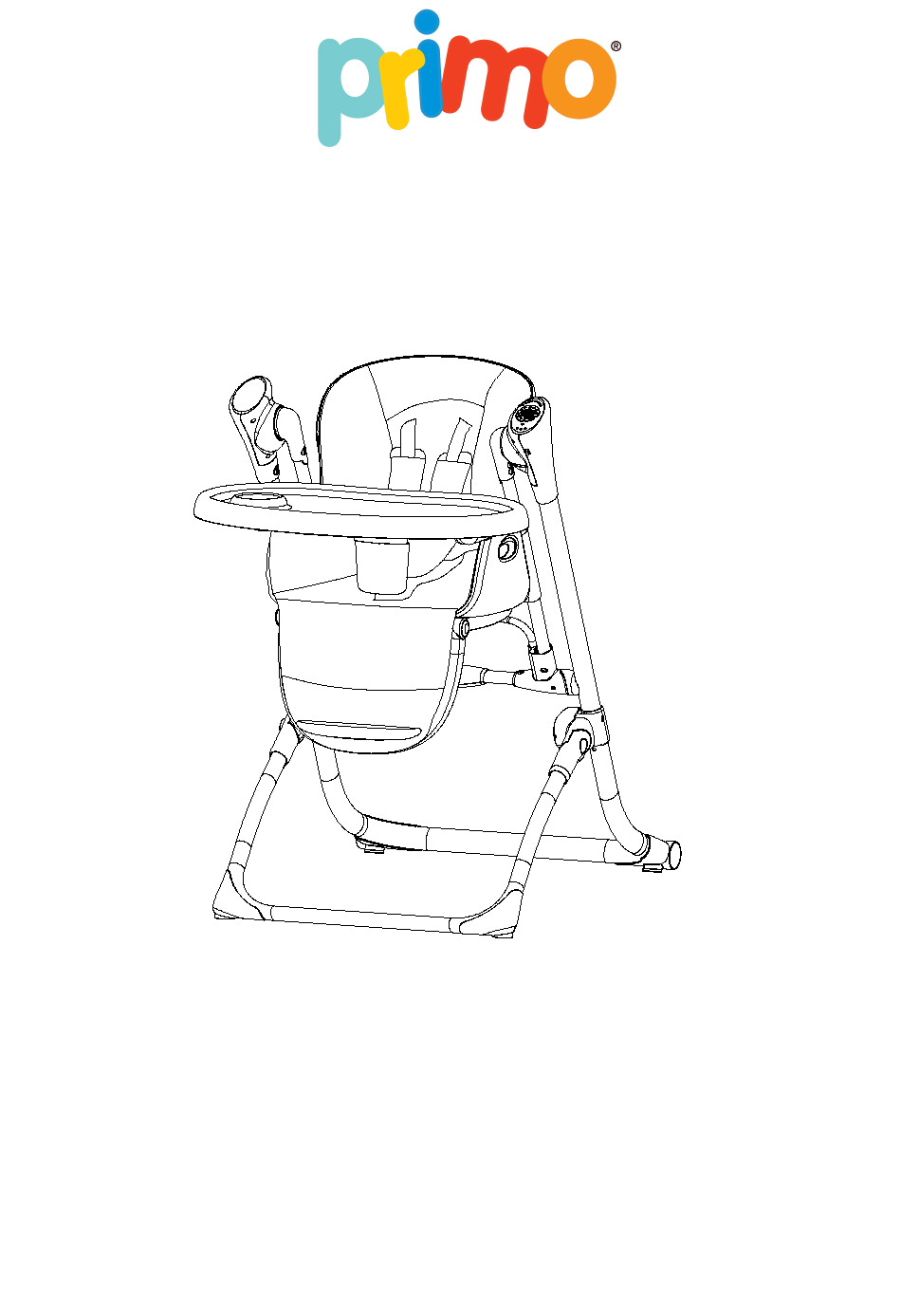

- Page 1 2-in-1 Smart Voyager Swing and High Chair PRIMO 149 Shaw Avenue, Irvington, NJ 07111 Tel: (973) 926-5900 Fax: (973) 926-1745 e-mail: info@primobaby.com www.primobaby.com Model No.：PRI-450G Standard：ASTM F404-17/ASTM F0288-15...
- Page 2 Contents I. Part List..........Page 1 II. Assembly..........Pages 2-10 III. Use Instructions........Pages 11-13 IV. Cleaning and Maintenance....Page 14 V. Warnings..........Pages 14-15 VI. Warranty..........Page 15 I.Part List Part Name Quantity Part Name Quantity Swing Release Main Control Arm Feeding Tray Assist Arm...
- Page 3 . Assembly Instructions 1. Combine the front base tube (A) with the main frame (A). A "click" will indicate that the pieces have locked together properly. “ ” C lick 2. Combine the rear base tube (B) with the main frame (B). A "click" will indicate that the pieces have locked together properly.
- Page 4 3. Slide the left and right swing arms (C) into the seat (C). The arms should not be able to be pulled out of the frame without pressing in the button to remove them. 4. Insert the swing release bar (D) into the bottom of the seat (D).
- Page 5 5. Connect the Left and Right Swing Arms as shown in the image below to complete the main assembly of the 2-2-in-1 Smart Voyager Swing & High Chair. Main Arm Assist Arm 6. To disconnect the seat from the frame follow the instructions in the image below. Use a rod or paper clip that is about 4mm wide to push the button located on each arm...
- Page 6 8. To install the toy bar, slide the rails into the seat until they lock into place. NOTICE: Only use toy bar in the swing configuration. Remove Toy Bar when baby can reach or grab toys. 9. Adjust the height of the footrest by sliding the plate into the desired height level as shown in the image below.
- Page 7 10. To power the Voyager, insert DC plug of adapter to receiver on the main frame. Insert the AC plug into a wall socket to power on the Voyager. 1. AC adapter plug 2. Power connector 3. DC plug 11. This product requires 4 AA batteries to run without being plugged in to an electrical outlet. 1.Line negative polarity with - sign.
- Page 8 WARNING！ Different types of batteries or old and new batteries cannot be mixed. The batteries should be placed in the correct polarity. Exhausted batteries need to be removed from the infant swing. The Infant Swing shall only be used with the included adapter or 4 AA bateries. ...
- Page 9 13. As shown in the figure, press the adjustment button on both sides and select one of the five height adjustment levels. Once you hear a "click" the seat height has locked into place. 6 Height Levels 14. Feeding tray has 3 adjustable positions that can be changed by pressing adjustment button located under tray.
- Page 10 17. Only when the seat is in the lowest height position can you switch between High Chair and Swing mode. Notice: While in Swing Mode the seat height can not be adjusted. WARNING! Do not use the Voyager's swing function while in High Chair mode or it will wear out the motor and impact the function of the chair.
- Page 11 19. Baby should be safely secured by safety harness at all times while using the Voyager. Ensure that safety harness is fitted properly and that baby is held securely in place. 2.Press 2.Press Slide 1.Slide 1.Slide 20. To fold the chair, press the buttons on the left and right side, and step on the back foot tube. Then fold the front tube towards the back tube.
- Page 12 . Using your Voyager 2-in-1 1. Control Panel Diagram 11. Speed indicator 10. Mode Change 2. Slow Down 1. Speed Up 6. Water Sounds 7. Bird Sounds 5. N ext Song / V olum e Adjustment 4. Pause/Play Tim er Setting 9.
- Page 13 4. "Swing Control" app layout Timer Setting Menu Timer Mode Switch Music Toy/Light Activation (Unavailable on Bird Sounds Voyager 2-in-1) Sound Activation Mode Water Sounds Swing Speed Down Swing Speed Up Pause/Play Previous Song Next Song Volume Down Volume Up Volume control 1) Previous Song/Next Song: Go back to prior song or move to the next song.
- Page 14 5. App Download Instructions (iOS 8.3.0 and up or Android 4.3.0 and up) Go to the App Store and search for "SwingControl" by "xiaomei su" (our production partner) or go to www.primobaby.com/ products/2-in-1-smart-voyager-swing-and-high-chair 6. Connecting to the Voyager (Note: Pair with Swing-018A) ooooo ooooo ooooo...
- Page 15 IV. Care & Maintenance Instructions 1. Voyager Seat Cushion a. Wash in cold water. b. Use mild soap or upholstery shampoo. c. Wash separately. d. Do not bleach, soak, tumble dry, or dry clean. e. Dry flat in the shade thoroughly before reuse and avoid direct heat. 2.
- Page 16 To activate this limited warranty, the purchaser must complete the enclosed product registration card and have returned it to the PRIMO® address on the enclosed warranty registration card within thirty (30) days of the original purchase date. (PRIMO® 2-in-1 Smart Voyager Swing and High Chair PRI-450G)
