with the included adapter. Attach the ends of a serial cable to the serial port of the PC and
the Serial Console Port of the module.
Start the terminal emulation program and select the correct COM Port. Set the serial port
to the following:
Bits Per Second
57,600
Data Bits
8
Hardware Flow Control
NONE
Once connected, press <ENTER> to bring up a command line prompt on the attached PC.
A new GM4 module does not have a password, and will skip the Password Entry screen and
go straight to the Management Options screen. If a password has been set, the Password
Entry screen will be displayed. Type the password and press <ENTER>, the GM4 will respond
with the Management Options screen.
The CLI interface allows for the detailed configuration of the module. It is recommended to
configure:
Serial port password - option 3 from the Management Options screen
Telnet password - option 3 from the Management Options screen
IP address of the module - option 3 from the Management Options screen
SNMP parameters - option 4 from the Management Options screen
See the full version of the User Manual for more information.
4) VERIFY OPERATION
Once the module has been installed and configured per steps 1 - 3, verify the module is
operational by viewing the LED indicators.
LED Function
Color
OFF State
"Legend"
Power
Green
No power
"PWR"
P1 Link Activity
Green
Port not linked at 100M
"100"
P1 Link Activity
Green
Port not linked at 1000M
"1000"
P1 Link Activity
Green
Port not linked at 10M
"100" and "1000"
P2 Link Activity
Green
Port not linked at 100M
"100"
P2 Link Activity
Green
Port not linked at 1000M
"1000"
P2 Link Activity
Green
Port not linked at 10M
"100" and "1000"
Test/Alarm
Green
Reserved
"Tst/Alm"
Management Mode
Green
N/A
"Msr/Slv"
Figure 4: LED Indicators
Omnitron Systems Technology * 38 Tesla * Irvine, CA 92618
949.250.6510 tel * 949.250.6514 fax * www.omnitron-systems.com
©2015 Omnitron Systems Technology, Inc.
Stop Bits
1
Parity
NONE
ON/Blinking State
ON: Module has power
ON: Port linked at 100M
Blinking: Data activity
ON: Port linked at 1000M
Blinking: Data activity
ON: Port linked at 10M
Blinking: Data activity
ON: Port linked at 100M
Blinking: Data activity
ON: Port linked at 1000M
Blinking: Data activity
ON: Port linked at 10M
Blinking: Data activity
Reserved
ON: Master (normal)
5 Hz Blinking: Secure Slave
040-8999R-001B 1/15
iConverter 2-Port SFP to SFP GM4
Network Interface Device

Quick Start Guide

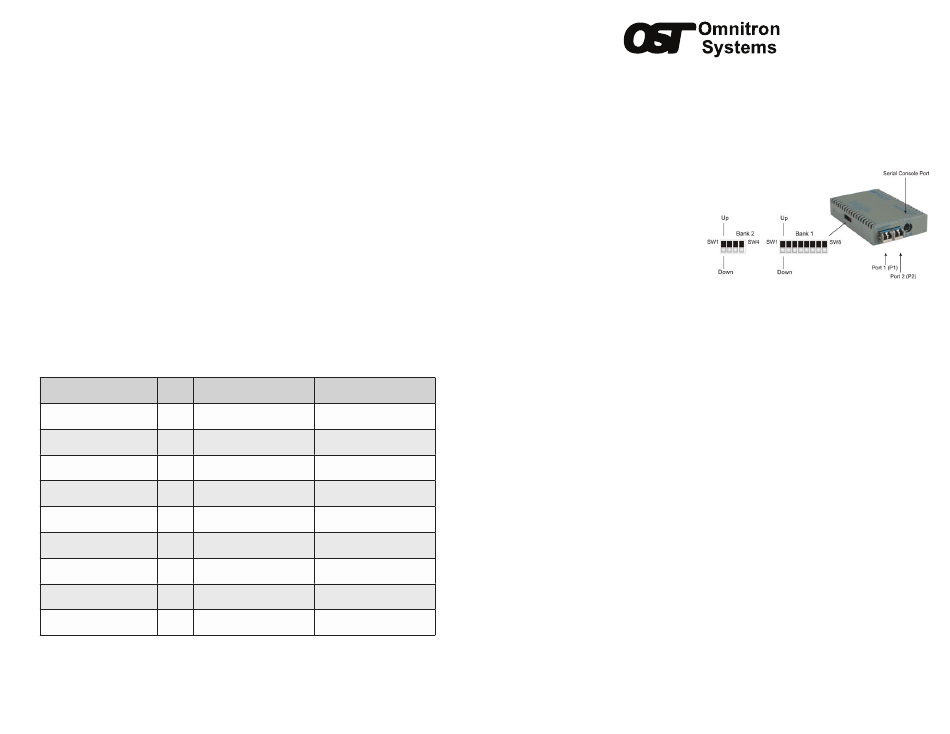

PRODUCT OVERVIEW
This document describes the basic installation and configuration of the 2-Port SFP to SFP
GM4 standalone modules.
The GM4 features two SFP ports and a
RS-232 Serial Console Port. The SFP
ports support SERDES 100/1000BASE-X
SFP fiber and Omnitron approved SGMII
10/100/1000BASE-T copper transceivers.
NOTE: When using third party 100BASE-FX
and unapproved SGMII SFPs, the port must
be manually configured using the Command
Line Interface (CLI). Interface settings can
be changed using the port command. For more information including the complete User
Manual on the 2-Port SFP to SFP GM4 modules, access Omnitron's registration page and
register the product:
http://www.omnitron-systems.com/forms/product_registration.php
INSTALLATION PROCEDURE
1) Configure DIP-Switches
2) Install Standalone Module and Connect Cables
3) Configure Module via Command Line Interface
4) Verify Operation
1) CONFIGURE DIP-Switches
DIP-SWITCH BANK 1
SW1 and SW2: P1 and P2 AUTO/MANUAL NEGOTIATION "AN / Man"
When this DIP-switch is in the "AN" position (factory default), the port automatically determines
the duplex and pause modes of the connected device. If the connecting device cannot provide
the proper signal to indicate its own mode of operation, the DIP-switch should be set to the
"Man" position. When in manual mode, no capabilities are advertised and the port operates
in full-duplex mode.
NOTE: If 1000Mbps fiber transceivers are installed, the port always operates in 1000Mbps
full-duplex mode.
NOTE: If 100Mbps fiber transceivers are installed, the port will operate in 100Mbps full-duplex
manual mode.
SW3, SW4, SW5 - Reserved
Page 1
