This installation construction contains important advice for handling, installing and starting up a
2Power solar plant. Read these advice carefully before mounting. The mounting and the start-up have
to be conducted by a permitted specialized company. With an improper installation the guaranty
expires.
Agiba Heating
Frjentsjerterdyk 1
8855 XC Sexbierum
www.agibaheating.nl
2
Power storage tank
Installation instructions
Advertisement
Table of Contents
Summary of Contents for 2Power 2P 400l
- Page 1 This installation construction contains important advice for handling, installing and starting up a 2Power solar plant. Read these advice carefully before mounting. The mounting and the start-up have to be conducted by a permitted specialized company. With an improper installation the guaranty expires.
- Page 2 1.2. Intended use The described 2Power storage tank is provided for the storing of heating water and the heating of the drinking water. Any use which goes beyond these limits is not regarded as the intended use.
- Page 3 2.1. Regulations and guidelines Follow the relevant accident prevention regulations, environmental regulations and statutory rules for assembly, installation and operation, as well as the relevant safety regulations of DIN, EN, DVGW, VDE and VDI and any national standards, laws and regulations. The electrical wiring work may only be carried out by qualified electricians.
- Page 4 3.4. Water connection and safety group Perform all connecting and installing work according to the valid rules and regulations. Take assembling hints of the safety group into account. Flush all pipes connected to the storage tank. Assemble the hot water pipe and the cold water pipe as well as the safety group to the cold water supply line.

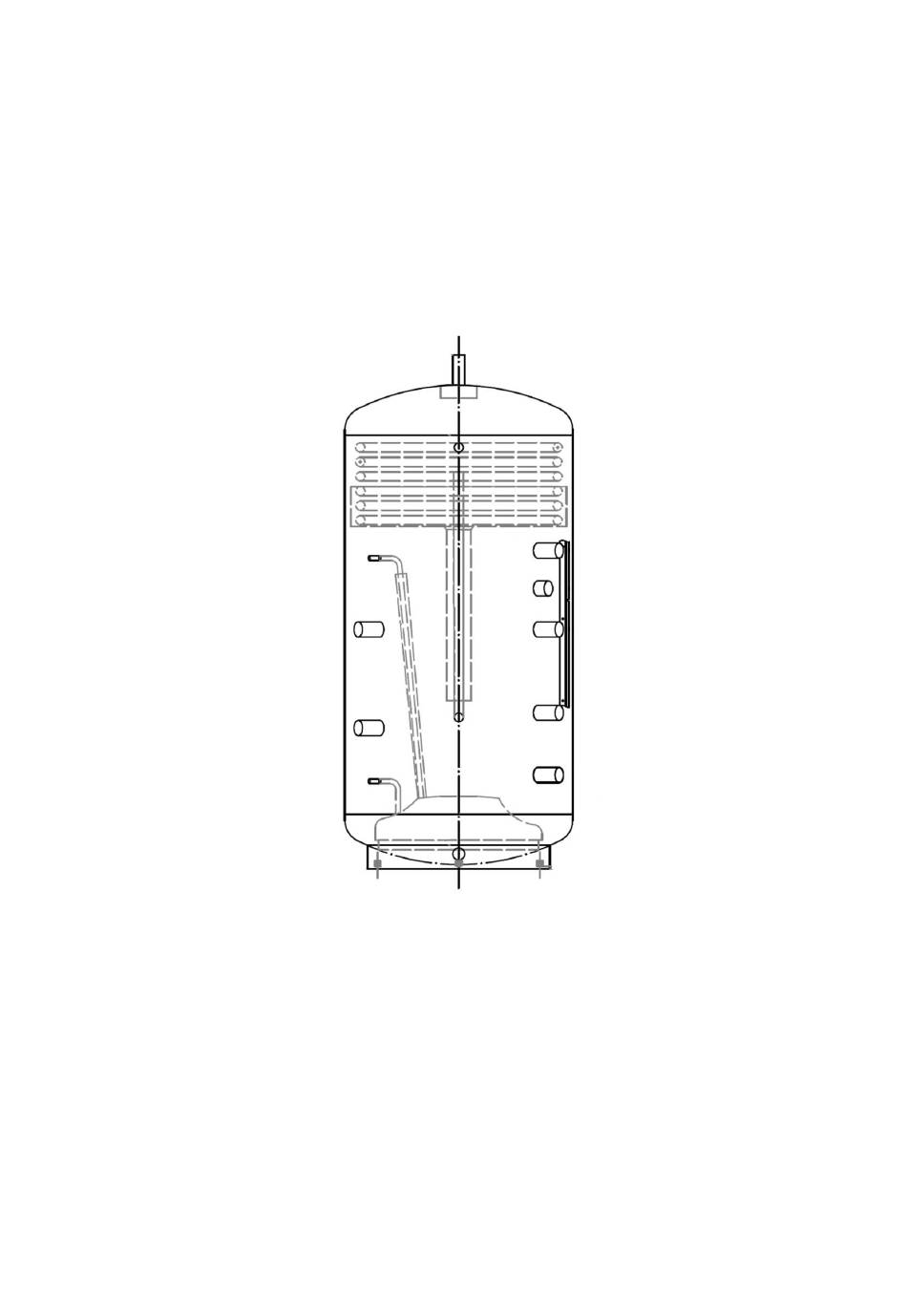

- Page 5 5. Technical Data 5.1. Measures and connectors Recommended terminal assignment: 2Power flow pipe 2Power return flow Cold water supply line Hot water outlet Heat generator flow pipe Heat generator return flow Flow pipe heat generator 1/ heating flow pipe Return flow heat generator 2/ heating return flow...
- Page 6 Storage dimensions in mm: 2P 400l 1,406 1,306 2P 600l 1,695 1,595 1,050 2P 850l 1,885 1,785 1,080 1,205 2P 1000l 1,885 1,785 1,080 1,205 InstAnl.V08-2014-0 Pagina 6 ǀ 8...
- Page 7 31l/min Storage temperature = 55°C 11l/min 15l/min 22l/min 22l/min Pressure drop drinking water approx.: 0.08 bar 0.11 bar 0.17 bar 0.17 bar at 20l/min Specific volume flow per 2Power-unit: 50l/h 50l/h 50l/h 50l/h Solar heat exchanger InstAnl.V08-2014-0 Pagina7 ǀ 8...
- Page 8 Tel.: +31 (0)72 7920174 agibaheating.nl Agiba Heating disclaims any and all responsibility for units damaged after having been operated together with 2Power modules supplied by Agiba Heating but failing to take heed of technical data sheets and the installation instructions Subject to technical modifications in the course of product advancement.
