Summary of Contents for KWS B-210
-
Page 1: User Manual

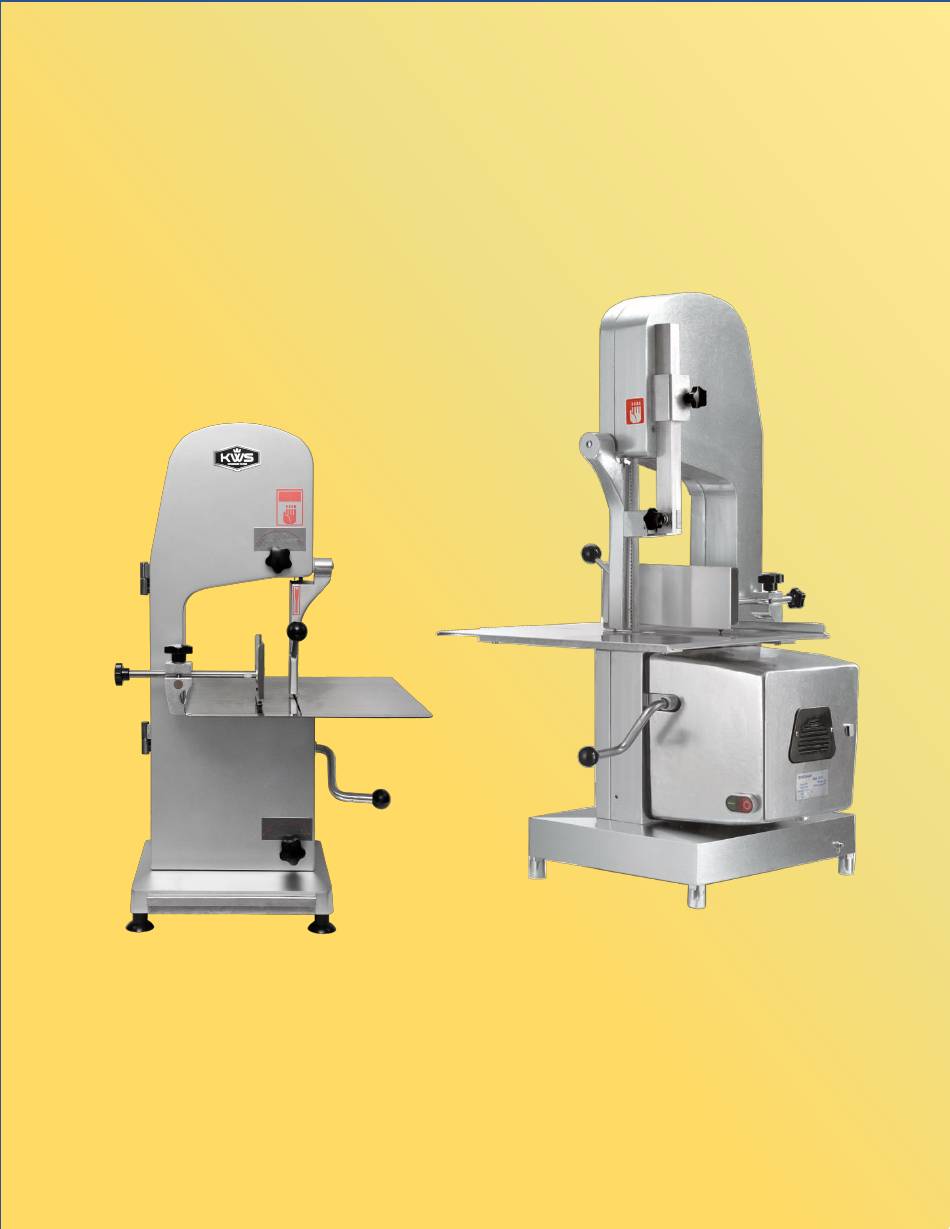

Bone Saw Machine User Manual B-310 B-210 Thank you for purchasing this KitchenWare Station bone saw machine. Before operating the equipment, read and familiarize yourself with the following operating and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. -
Page 2: Table Of Contents
Table of Contents Brief Introduction ....................3 Components ......................3 Unpacking ......................4 Safety Instruction ....................5 Operating Instruction ..................... 6 Cleaning and Sanitizing Instruction ................ 7 Bone Saw Disassembly, Cleaning and Sanitizing........... 7 Maintenance ......................8 Technical Parameters ....................9 Circuit Diagram ....................... -
Page 4: Unpacking
UPON RECEIVING UNPACKING: 1. Unpack the bone saw machine immediately after receipt. If the machine is found to be damaged after unpacking, save the packaging material and contact carrier and KitchenWare Station Customer Service Department within fifteen (15) days of delivery. 2. -
Page 5: Safety Instruction
IMPORTANT SAFETY INSTRUCTION Thank you for purchasing KitchenWare Station Bone Saw Machine. Each unit has been manufactured to ensure safety and reliability. Before using for the first time, please read the instructions carefully and keep them for further reference. WARNING! READ AND SAVE THESE INSTRUCTIONS. -
Page 6: Operating Instruction
OPERATING INSTRUCTIONS WARNING! Safety devices incorporated in this saw must be in their correct operating positions anytime the saw is in use. It is forbidden to cut materials such as wood, plastic, paving tiles, bricks, stones, glass, metals, leather, cardboard, fabrics, etc. SAFETY FEATURES DOORS, COVERS, and GUARDS All doors, covers, and guards must be closed at all time during operation for the machine to... -
Page 7: Cleaning And Sanitizing Instruction
CLEANING AND SANITIZING IMPORTANT: To maintain the appearance and increase the service life, clean your equipment daily after use. TO AVOID SERIOUS PERSONAL INJURY: • BEFORE CLEANING, SERVICING, OR DISASSEMBLE ANY PARTS, always turn bone saw OFF and unplug unit. •... -
Page 8: Maintenance
NOTICE: 1. During remounting saw blade, make sure the teeth pointing downward. 2. The right side of the saw blade need to be in between of the meat scraper. 3. Make sure the teeth of the blade should be sitting out on the edge of the pulley. 4. -
Page 9: Technical Parameters
If damaged or bad working components are detected, do not allow staff to use the machine and put a warning about the prohibition on it; then contact the dealer or KitchenWare Station for further assistance. TECHNICAL PARAMETERS Model B-210 B-310 Rated Voltage / V AC 110V / 60Hz AC 110V / 60Hz Power 1900W ;... - Page 10 Models: B-210, B-310...
-
Page 11: Component List
Part No. Description Part No. Description ECCENTRIC SMALL SHAFT DISMANTLING TOOL CHAMPION WHEEL AXLE MOTOR HOUSING SEAL CLAMPING SLEEVE MOTOR HOUSING POSITIONING WHEEL MOTOR HOUSING HEAT SINK MEAT SCRAPING SEAT LOCKING NUT CLAMPING SCREW BASE MEAT SCRAPER BODY DOOR LOCKING KNOB DOOR GAUGE PLATE KNOB LOWER PULLEY... -
Page 12: Troubleshooting
TROUBLESHOOTING Issue Cause Solution Machine does not start. Lack of power from the Restore the supply of electrical network. power from the electrical network. Machine’s On-Off switch is Push the green button to in “o” position. “I” position. The door is not closed and Close the door, and turn tightly locked. -
Page 13: Customer Care
CUSTOMER CARE If you should ever have questions or require service, training, spare parts or additional manuals of this bone saw, please contact KitchenWare Station Customer Service Department. KitchenWare Station, LLC 13732 Milroy Pl Santa Fe Springs, CA 90670 Toll Free: 1-888-505-3698 (Monday – Friday 10:00am – 5pm PST) Email: Customerservice@kitchenwarestation.com Official Website:... -
Page 14: Limited Warranty
LIMITED WARRANTY Thank you for purchasing KitchenWare Station’s product. This bone saw machine was tested and meets our stringent quality standards. This product is warrantied to be free from manufacturing defects under normal/ proper use and conditions for 1 year. To register your warranty for this product, complete the warranty registration form provided in the package, and send it back to us.
Need help?
Do you have a question about the B-210 and is the answer not in the manual?
Questions and answers
The blade falls off? It has only been used cutting 2 pork loins
The blade may fall off due to bone or meat pieces getting between the blade and pulley. This can cause the machine to change speed and shut down. The obstruction may also loosen the blade from its position. To resolve this, stop the machine, let it cool down, and clean out the meat and bone pieces before operating again.
