Summary of Contents for VisionNet 560780
-

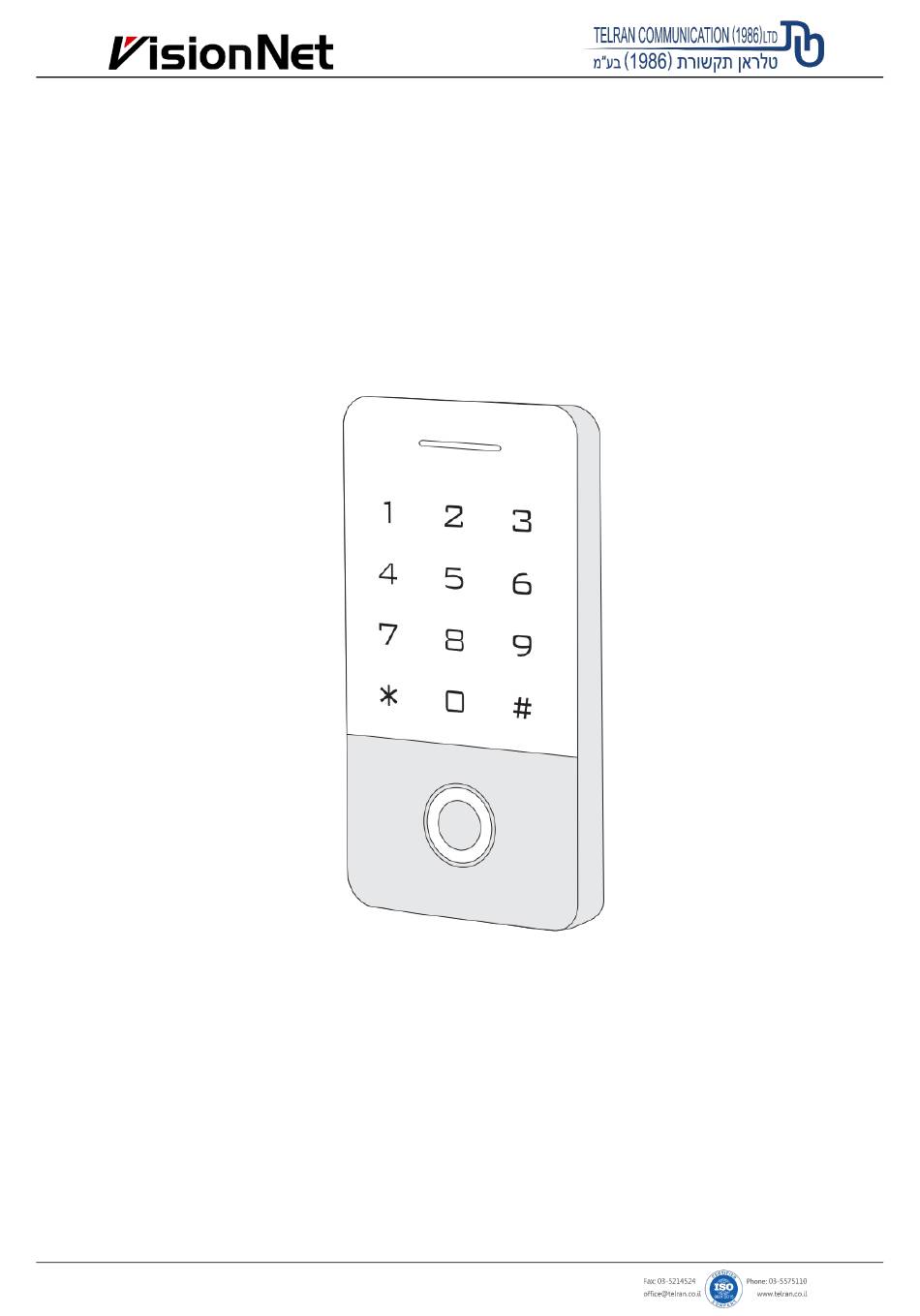

Page 1: User Manual
Keypad Fingerprint Access Control User Manual Please read and understand this instruction completely before installation or operation - 1 -... -
Page 2: Technical Specifications
1. Introduction This series’ product is a new generation of multi-function standalone access control. It adopts new ARM core 32-bit microprocessor design, which is powerful, stable and reliable. It contains reader mode and standalone access control mode etc.. It’s widely applied to different occasions, such as office, residential communities, villa, bank and prison etc.. 2. -
Page 3: Common Power Supply
Wiring Color Marks Description Green Wiegand input (Wiegand output as reader mode) White Wiegand input (Wiegand output as reader mode) Grey ALARM Alarm signal MOS tube drain output end (optional) Yellow OPEN/ BEEP Exit button input end (Beeper input as reader mode) Brown D_IN/ LED Door contact switch input (LED input as reader mode) (optional) -
Page 4: Reader Mode
6.2 Special Power Supply Note: The door contact and alarm function are optional Reader Mode - 4 -... -
Page 5: Sound And Light Indication
Sound and Light Indication Operation Status Light indicator Buzzer Stand by Operation successful Green Beep— Operation failed Beep-Beep-Beep Admin card enter programming Beep-Beep Admin card exit programming Beep— Press digital key Beep Press * key Beep— Press access code Red indicator flash slowly Read card under card plus code mode Red indicator flash slowly Read multi user cards... - Page 6 Add and Delete Users Enter Menu Operation steps Description Default value programming Read card Add card users or fingerprint users / Input a fingerprint twice... * continuously Press 8 or 10 digits card Add card users by card number number # … * Press ID number # read Add card users or fingerprint users by card...
- Page 7 Advanced Settings Operation Default Enter programming Menu Description steps value Door opening time range: 0-300S (0-300) # 0 equals to 50mS Alarming time sets 0S, means no alarm (1-99) # Alarming time range: 1-99 min Normal working mode The external alarm and built-in buzzer will work if wrong operations are over 5 times.
-
Page 8: Delete Card
Default Enter programming Menu Operation steps Description value (1-99)# Alarming time range: 1-99 min (0-255)# Set device number (26-58)# Wiegand output：26-58 bits Keypad transmission format 4 bits Keypad transmission format 8 bits Virtual card number output Disable light indicator Enable light indicator Disable the keypad backlight Enable the keypad backlight (2-99)#... - Page 9 User Operation 10.1 Change the User Code Change the user code by card Press * Read card Old code # New code # New code # Note: The default code “1234” of matching card can’t open the door unless revising other codes. Change the user code by fingerprint Press * Input fingerprint...
