Summary of Contents for BURR KING 1001

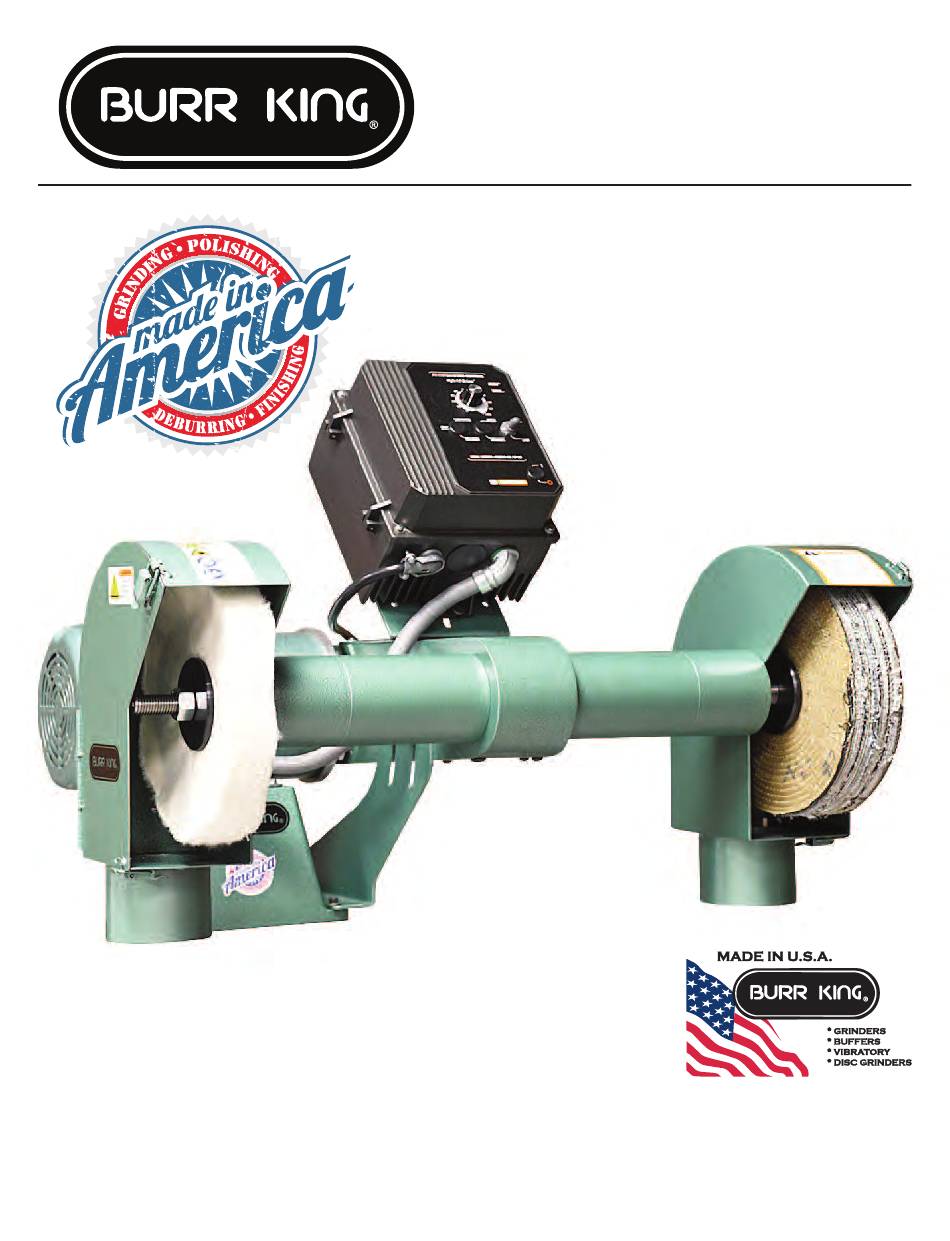

- Page 1 BURR KING MFG. CO., INC 1220 Tamara Lane Warsaw, MO 65355 www.burrking.com (660)438-8998 • Fax (660)438-8991 1001 ODEL NSTRUCTION ANUAL Model 11011 shown with optional dust scoop kits and wheels 1001 ODEL & P EBURRING OLISHING ATHE...
-
Page 2: Warranty Card
*Motors, speed controllers, and certain other accessories are warranted by their respective manufacture. To receive warranty service on these items you must contact a brand label service center that supports the product in need of service. Burr King Manufacturing Company; Inc. will assist you in locating a service center. - Page 3 January 01, 2019 LETTER OF AUTHENTICITY This letter is to certify that all Burr King Belt grinders, Disc grinders, Polishing machines Vibra King Chambers and Bowls are manufactured and assembled in the United States of America. Tariff number 847990 criterion A)
-
Page 4: Table Of Contents
Burr King Model 1001 Congratulations on your purchase of a Burr King polishing lathe. Please take a moment to complete and mail your product warranty registration card. Doing so will validate your machine’s warranty period and ensure prompt service if needed. Thank you for purchasing a product from Burr King Manufacturing. -
Page 5: Product Specifications
Product Specifications The Burr King policy of continuous improvement determines the right to change specification without notice Stock/Model Number ................................ 11011-11999 Product Family ....................................1001 Voltage ..........................120V 1Ph – 480V 3PH Depending on SKU Motor ................................1-1/2 HP / 1.1 KW and up Motor RPM .................................... -
Page 6: Operator And Operating Area Safety
M1001 Polishing Lathe Important Safety Instructions OPERATOR, and OPERATING AREA SAFTEY WARNING! WHEN USING ELECTRIC TOOLS, BASIC SAFTEY PRECAUSTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE RISK OF FIRE, ELECTRIC SHOCK AND PERSONAL INJURY. READ AND SAVE ALL INSTRUCTIONS FOR FUTURE REFERENCE Subject equipment includes Grinders, buffers, polishers, and other rotating equipment. - Page 7 7. USE SAFETY GLASSES • Everyday eyewear does not feature impact resistance lenses, and they are NOT safety glasses 8. WEAR DUST MASK • Some dust created by polishing/buffing activities may contain chemicals known to cause cancer, birth defects or other harm.
- Page 8 21. DO NOT USE STONE WHEELS • The use of stone or vitreous wheels on any Burr King grinder is prohibited. The machine guarding and dust scoops if equipped are not suitable for these types of wheels. To do so will create an operator safety hazard.
-
Page 9: Dust Scoop Installation
M1001 Dust Scoop Installation Your new Model 1001 Polishing Lathe is fully assembled and ready to use. If you have ordered the optional dust scoop kits please follow the directions below. The dust scoops are not wheel guards. The dust scoop primary function is to funnel particulate to a collection unit. -
Page 10: Operating Instructions
Model 1001, or who will work in the vicinity of the Model 1001 read, understand, and comply with these instructions. 6. Ensure that the Model 1001 is located in an area that provides safe access to the machine such that operators have clear and unobstructed working space. The work place should be free from floor obstructions, trip points, and other faults that may reduce operator safety. -
Page 11: Maintenance
The right spindle has a right-hand thread. 3. Your Model 1001 has been shipped to you with 2 cap plugs on each end of the spindle it is very important that once you have selected the wheel you will be using on your machine that you cut the plug to the size of the exposed thread. - Page 12 Do not mix alloys in your buffing. To do so may create an explosion hazard. Do not use stone or vitreous wheels on the Model 1001. To do so will create an operator safety hazard. Do use eye, hand, face, arm, leg, feet and body protection that is adequate to protect against flying debris, forcibly ejected work pieces, etc.
-
Page 13: Variable Speed Controller Instructions
(660)438-8998 • 800-621-2748 Fax (660)438-8991 Variable Speed Controller Instruction Manual Addendum Congratulations on the purchase of your new Burr King. Your machine has been configured with a variable speed controller also know as a VFD (variable fre- quency drive) Your VFD operates on 120 volt single phase power. - Page 14 (660)438-8998 • 800-621-2748 Fax (660)438-8991 Variable Speed Controller Instruction Manual Addendum Congratulations on the purchase of your new Burr King. Your machine has been configured with a variable speed controller also know as a VFD (variable fre- quency drive) Your VFD operates on 220 volt, single phase power. The VFD converts this power to 220 volt 3 phase power.
-
Page 15: Machine Schematics & Part List
M1001 EXPLODED VIEW 1220 TAMARA LANE WARSAW, MO 65355 PH: 660-438-8998 800-621-2748 FAX: 660-438-8991 E-MAIL: info@burrking.com Page 15... - Page 16 M1001 PARTS LIST ITEM NO. PART NUMBER DESCRIPTION QTY. BASE-MACHINE MOTOR-CALL CUSTOMER SERVICE 908-1 C-FACE ADAPTER 1026A-2M FRAME ASSEMBLY (M1001) 1033-1 MOUNT-BEARING 1034-1 SHROUD-BEARING 1028-7 SHAFT-SPINDLE 1030 FLANGE, WHEEL 1049-1 BRACKET-SUPPORT 1035 PLATE-COVER CAPSCREW 5/16-18 X 3/4 WASHER 5/16 SAE 1-0003 CAPSCREW 3/8-16 x 1 1/4 WASHER 3/8 AN960-616...
- Page 17 M1001 FOOTPRINT 21.57 29.44 19.17 9.24 12.84 8.30 8.80 R.H. VIEW FRONT VIEW 7.75 .31 THRU 7.25 4X MOUNTING HOLES BOTTOM VIEW 1220 TAMARA LANE WARSAW, MO 65355 PH: 660-438-8998 800-621-2748 FAX: 660-438-8991 E-MAIL: info@burrking.com Page 17...
- Page 18 M1001 D.S. PARTS LIST ITEM NO. PART NUMBER DESCRIPTION QTY. 1034-2 SHROUD-BEARING MOUNT DS1022LH SCOOP-DUST L.H. DS1022RH SCOOP-DUST R.H. 2-0026 SHCS 1/4-28 x 1 1435 SHCS 1/4-28 x 3/4 2-0065 WASHER 5/16 SAE 5-0032 WASHER 1/4 SPLIT LOCK 1220 TAMARA LANE WARSAW, MO 65355 NOTE: 1034-2 REPLACES 1034-1 ON STANDARD M1001 PH: 660-438-8998...
- Page 19 M1001 DUST SCOOP DIM. 10.17 29.64 4.57 R6.09 15.22 14.25 9.13 FRONT VIEW R.H. VIEW 3.90 BOTTOM VIEW 1220 TAMARA LANE WARSAW, MO 65355 PH: 660-438-8998 800-621-2748 FAX: 660-438-8991 E-MAIL: info@burrking.com Page 19...
- Page 20 PART NO. 1001 w DS REV. THE DATA CONTAINED HEREIN IS THE SOLE PROPERTY OF BURR KING MFG. CO., INC. REPRODUCTION OR DISTRIBUTION OF THIS DATA IS STRICTLY PROHIBITED DATE DRAWN: WITHOUT CONSENT OF BURR KING MFG. CO., INC. Page 20...
- Page 21 M1001 SPEED CONTROL DIMENSIONS 7.14 11.83 12.00 1220 TAMARA LANE WARSAW, MO 65355 PH: 660-438-8998 800-621-2748 FAX: 660-438-8991 E-MAIL: info@burrking.com Page 21...
- Page 22 M1001 SPEED CONTROL PARTS LIST ITEM PART NUMBER DESCRIPTION QTY. MB-4C4 BRACKET-CONTROL S.C. SPEED CONTROL-CALL FACTORY 2-0014 BHSHCS 1/4-20 X 1/2 5-0032 WASHER 1/4 SPLIT LOCK SHCS 1/4-20 X 3/4 1220 TAMARA LANE WARSAW, MO 65355 4-0013 NUT 1/4-20 KEP PH: 660-438-8998 800-621-2748 WASHER 1/4 AN960-416...
