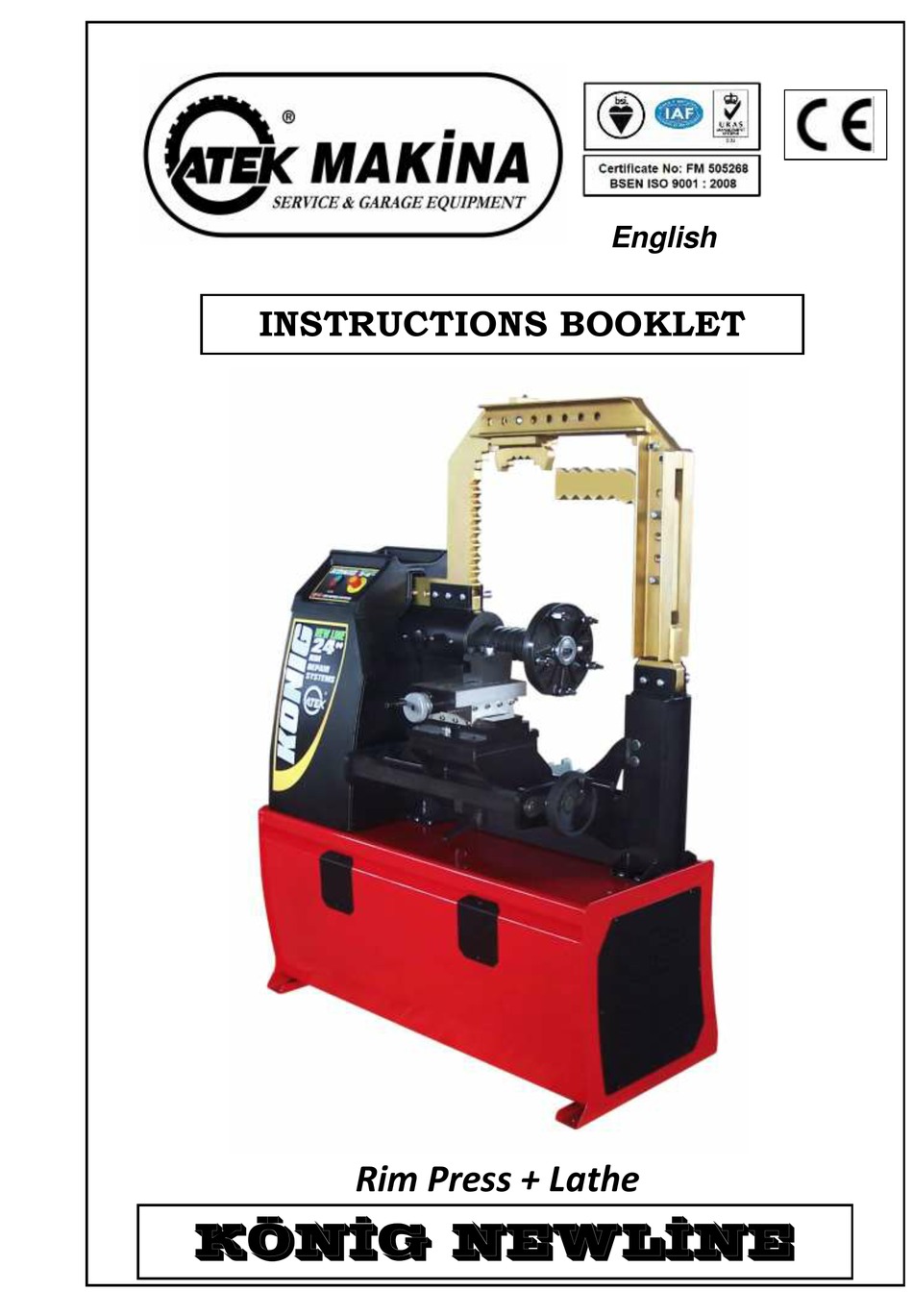

  • Page 1 English INSTRUCTIONS BOOKLET Rim Press + Lathe KÖNİG NEWLİNE...
  • Page 3 The Machines which are produced By ATEK MAKINA are under warranty against defects of the material and production for one(1) Year from date of it is sold. Our Company ATEK MAKINA is not responsible for the damages or defects due to damages occured by faulty used and out of purpose of use.
  • Page 4: Table Of Contents

    CLAUSE 1 IMPORTANT NOTICE The presents instructions booklet is an integral part of the product.Carefully study the warnings and instructions contained in it. This information is important for safe use and maintenance. Conserve this booklet carefully for further consultation. THIS MACHINE Is a rim pres to repair defective rims.
  • Page 5: Clause

    PARTS OF THE MACHİNE CLAUSE 3 FLANSH must rotate in arrow direction RIM CONNECT FLANSH The flansh desinged to serve different size of rims CONTROL UNIT controls the HYDRAULIC UNIT moves the LATHE UNIT lathes the defective rims pistons movements piston up and down position after repair ACCESSORIES PROVIDED...
  • Page 6: Clause

    CLAUSE 4 INTRODUCTION Thıs Manual Has Been Prepared For Workshop Personnel Expert In The Use Of The Machıne (Operator) And Technıcıans Responsıble For Routıne Maıntenance (Maıntenance Fıtter); Read The Manual Before Carryıng Out Any Operatıon Wıth The Rım Repaır And/Or Packıng . Thıs Manual Contaıns Important Informatıon Regardıng : Rım Repaır Machınes Safety He Personnel Safety Of Operators And Maıntenance Workers CONSERVING THE MANUAL...
  • Page 7: Clause

    CLAUSE 6 SAFETY WARNİNGS DON’T USE YOUR PLEASE READ THE İNSTRUCTİONS MACHINE WITHOUT MANUAL CAREFULLY GLASSES AND DO NOT PUT YOUR HANDS DO NOT USE THE PISTON BEFORE START GLOVES. USİNG THE MACHİNE BETWEEN THE PISTON AND ON LIVING THINGS. FLANSH DURING THE OPERATION.
  • Page 8: Clause

    CLAUSE 7 RIM REPAIR EQUIPMENT Portable thrusting group Lower thrusting group Type Lathe Slidable and Turnable CLAUSE 8 PROBLEMS – CAUSES - REMEDIES PROBLEMS CAUSES REMEDIES 1.The mains connection is not plugged in. 1,2,3.Check the correct insertion of the 2.The plug is not correctly wired. plug and its connections.
  • Page 9: Clause

    CLAUSE 9 MACHINE FIXING ONTO FLOOR LOCATION For a good functioning the machine must be fixed onto floor with expansion dowels. SAFE DISTANCE: 1)Drill the floor with a helical concrete bit with a diameter of 15 mm. , using the holes in the base as a drilling template. For the safe and ergonomic use of the machine it is advisable to locate it so as to 2)Move the rim repair and insert anchor bolts into the...
  • Page 10: Clause

    CLAUSE 10 OPERATIONS AND USE  CONNECTING THE DEFECTIVE RIM TO THE FLANSH Clean the muds and the balance weights from the rim. Choose suitable sized Tight the connecting flansh and connecting flansh for the rim. fasten to the suitable canals on the flansh.
  • Page 11: Clause

    OPERATIONS AND USE SOME EXAMPLES OF THE REPAIR If the defect is on the front surface to the outer side of the rim If the defect is from outer to the inner side of the rim. If the defect is from inner to the outer side of the rim OPERATIONS AND USE ***When repairing iron rims use also the manuel handle plus to the pres.
  • Page 12: Clause

    CLAUSE 11 ROUTINE MAINTENANCE To gurantee the efficiency of the machine and for its correct functioning is essential to carry out routine cleaning and maintenance. Routine maintenance must be carried out by the user according to the maker’s instruction. Before starting any cleaning or maintenance switch off the main switch and remove the mains plug from socket. EVERY DAY...
  • Page 13: Electric Curcuıt Plan

    CLAUSE 13 ELECTRICAL PLAN V U W SWITCH...
  • Page 14: Demontage Plan And Spare Parts List

    CLAUSE 13 DEMONTAGE PLAN...
  • Page 16 SPARE PARTS LİST PART. NR. DESCRIPTION 86R 01 000-CE Lower Body Group 86R 01 001-CE Body Group 01 0073 016 Imbus Bolt Screw 86R 01 002-CE Lower Body Cover 84 01 003 Fixing Plate Of Drawer Slider 86R 01 003-CE Bottom Body Back Cover 01 0107 040 Screw...
  • Page 17 01 0275 07 Engine 86R 03 000-CE Lathe Unit Group 86R 03 001-CE Right Connection Group Of Lathe Unit 86R 03 002-CE Left Connection Group Of Lathe Unit 86R 03 003-CE Sport Skidding Metal Sheet 86R 03 004-CE Sport Handling Axle 84 03 005 Bearing Stopping Plate 84 03 006...
  • Page 18 01 0107 040 Screw 35 08 000 Bridge Group 35 00 003-380-50 Top Support 35 04 000-380-50 Vertical Support Rail Group 35 05 000-380-50 Horizontal Support Rail Group 01 0064 030 Bolt 01 0112 12 Washer 35 06 002-380-50 Thrust Top Supporting Metal Sheet 35 06 001-380-50 Portable Support 01 0112 12...
