Summary of Contents for DAEYANG MEDICAL LUMISLIM

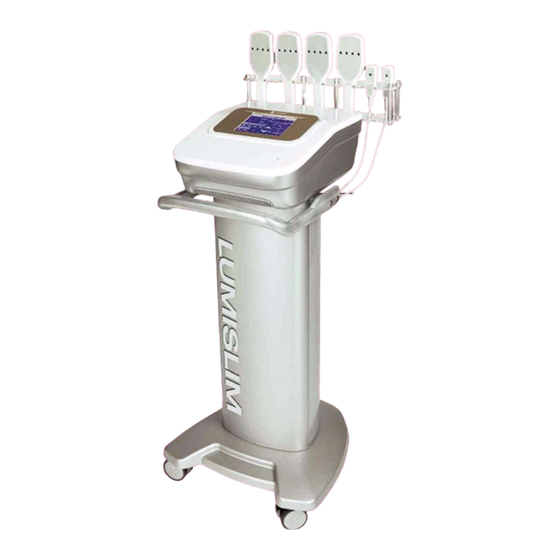

- Page 1 Doc. No. DYMLUMISLIM-a Rev. No. Date JUL 9, 2010 LUMISLIM manual DAEYANG MEDICAL CO., LTD.
-
Page 2: Table Of Contents
General Information CONTENTS LUMISLIM is a device used for reducing the fat by shining the emitted light energy (laser) over the skin. Read, understand and follow all of the Safety Precautions found in this section and throughout this manual prior to System use. -
Page 3: Precautionary Instructions
(There may be a risk of circuit damage or fire unless the rated voltage is not used.) • The person in charge of handling the LumiSlim should be familiar with all safety regulations and operation procedures specified in this User Manual. -
Page 4: Warning
• People who suffer from or are suspicious to have a disease including malignancy, (Light emitted from this LUMISLIM contains visible rays or invisible substances harm high fever, pregnancy, skin disease or any other diseases around the used body part, ful to eyes. -
Page 5: Introduction
All operations of the device can be made by direct touch, and you can see the whole functions on the monitor. The LUMISLIM is designed to operate from any 50/60Hz single phase supply between AC • Its one-touch way makes the program setting simple and convenient 85~264Vac. -
Page 6: Safety Precautions
Features of LUMISLIM Unit Side View Safety Precautions Rear View Please read the manual thoroughly before using the product. Using this manual, you can easily and quickly understand how to use the product. People who suffer from or are suspicious to have a disease including malignancy, high... - Page 7 Accessories User Interface Name Function Name Function Composed of four outlet ports, as the part from which Multi Pad Displayed Program the light is released Program (POWER,PULSE,TIME,WAVELENGTH) Composed of one outlet port, as the part from which Single Pad Operation Display Display of the picture of motion by channel the light is released INTENSITY...
-
Page 8: How To Use
How to Use 3) How to operate and use the device How to use the product (1) Preparations before use 1) Before setting up Connect the power supply cable to the power connection terminal of the body and then turn ①... - Page 9 (3) How to use the Pad on the part of the body. (2) Operation method for light emission Procedure Description Check whether the Pad cable is properly connected Multi Pad should be connected to to the equipment. Ch1~Ch4 Apply enough Accent PPC cream on the desired part. Attach pad to the desired part such as abdomen and arms or legs by using band.
- Page 10 2. CALL It is the function used to call the functions saved in the No. 1 SAVE mode, and if the CALL part is touched in the main screen (Picture screen 2), the screen changes as in the Picture (4) How to save (SAVE touch) to or call (CALL touch) from the memory screen 5.
-
Page 11: Administration And Caution
The screen returns to the normal state. All connected Channels “ON” Administration and caution - It is used when converting various channels of the state of the artificial stop at one go. Safety Tips The handpiece is not connected 6) Do not handle or pull the power 1) Unplug the electrical cord from cord with wet hands. -
Page 12: Before Calling For Service
GUARANTEE vice. I can’t see the output of Red lamp of Laser. All DaeYang Medical units are guaranteed against defects in material and workmanship for a Check Solution period of one year after the date of purchase – with the exception of accessories and subject to normal wear.
