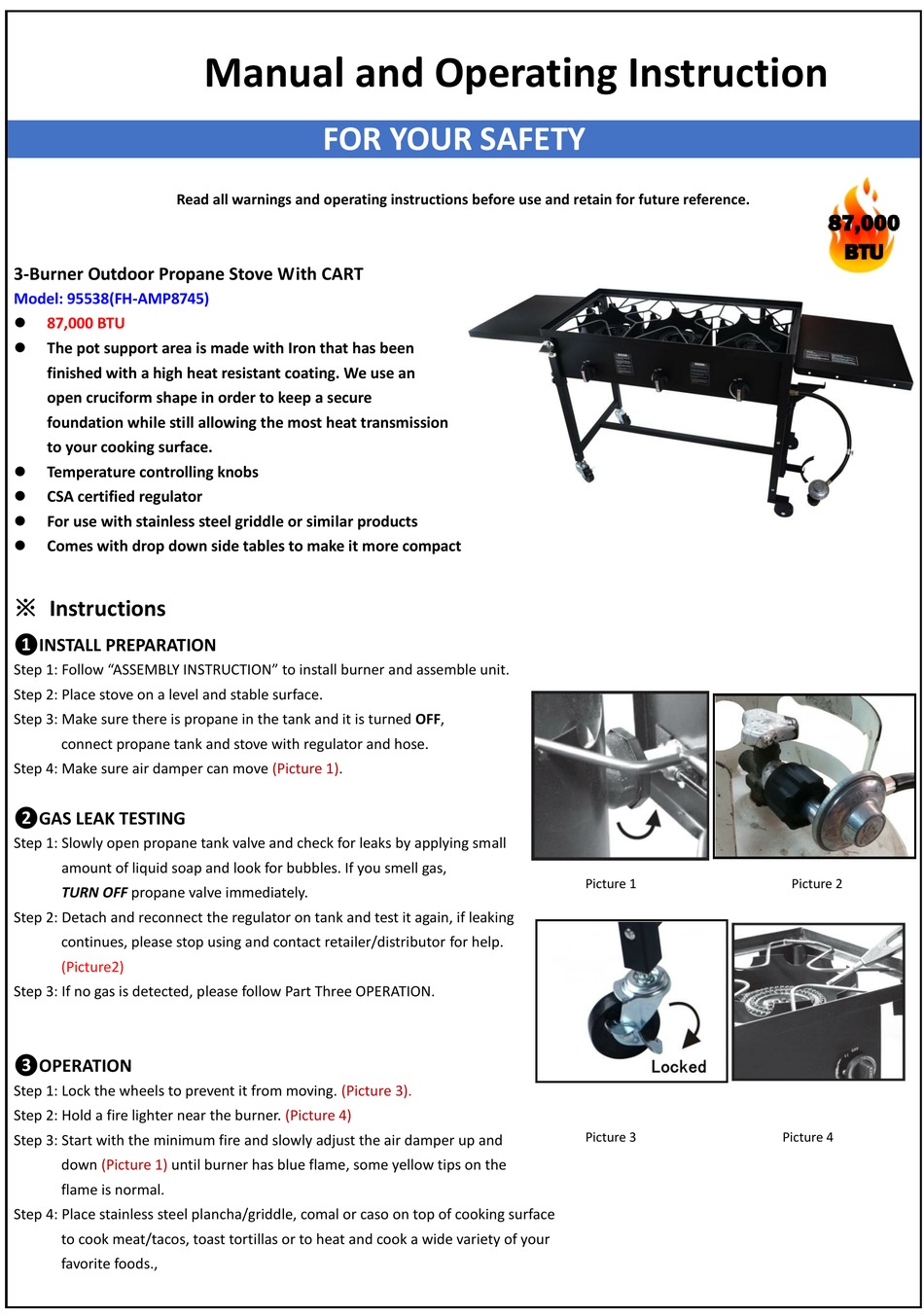

Barton FH-AMP8745 Manual And Operating Instruction

Read all warnings and operating instructions before use and retain for future reference.

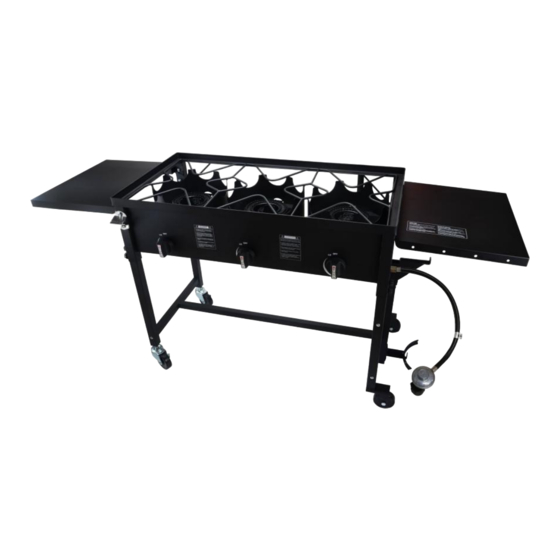

3-Burner Outdoor Propane Stove With CART
Model: 95538(FH-AMP8745)

87,000 BTU

The pot support area is made with Iron that has been
finished with a high heat resistant coating. We use an
open cruciform shape in order to keep a secure
foundation while still allowing the most heat transmission
to your cooking surface.

Temperature controlling knobs

CSA certified regulator

For use with stainless steel griddle or similar products

Comes with drop down side tables to make it more compact
※ Instructions
❶INSTALL PREPARATION
Step 1: Follow "ASSEMBLY INSTRUCTION" to install burner and assemble unit.
Step 2: Place stove on a level and stable surface.
Step 3: Make sure there is propane in the tank and it is turned OFF,
connect propane tank and stove with regulator and hose.
Step 4: Make sure air damper can move
❷GAS LEAK TESTING
Step 1: Slowly open propane tank valve and check for leaks by applying small
amount of liquid soap and look for bubbles. If you smell gas,
TURN OFF propane valve immediately.
Step 2: Detach and reconnect the regulator on tank and test it again, if leaking
continues, please stop using and contact retailer/distributor for help.
(Picture2)
Step 3: If no gas is detected, please follow Part Three OPERATION.
❸OPERATION
Step 1: Lock the wheels to prevent it from moving.
Step 2: Hold a fire lighter near the burner.
Step 3: Start with the minimum fire and slowly adjust the air damper up and
down (Picture 1) until burner has blue flame, some yellow tips on the
flame is normal.
Step 4: Place stainless steel plancha/griddle, comal or caso on top of cooking surface
to cook meat/tacos, toast tortillas or to heat and cook a wide variety of your
favorite foods.,
Manual and Operating Instruction
FOR YOUR SAFETY
(Picture 1).
(Picture 3).
(Picture 4)
Picture 1
Picture 3
Picture 2
Picture 4
