SUPPLIED ITEMS
QUANTITY
DESCRIPTION
1
SELF-LOCKING SAFETY BLOCK & TACKLE W/
2
WEB STRAPS W/ METAL BUCKLES
2
MICRO PULLEY
1
SHACKLE
1
ORGANIZER BLOCK
2
#10 X 2 1/2" LG SCREWS
1
SCREW EYE
2
PIGTAIL LAG SCREWS
4
4 LAG SCREW
4
WASHERS
TOOLS REQUIRED - ELECTRIC DRIVER / DRILL & 3/32" & 7/32" BIT
TAPE MEASURE / PENCIL
STEP LADDER
SAFETY GLASSES
STUD FINDER OR SMALL BRAID NAILS & HAMMER (TO LOCATE JOIST
TWO INSTALLATION METHODS ARE DETAILED ON THE FOLLOWING PAGES
1
RECOMMENDED INSTALLATION W/ CEILING POWERTRAK & RING HOOKS
THIS INSTALLATION REQUIRES THE ADDITIONAL PURCHASE OF CEILING POWERTRAK AND 2 RING HOOKS.
THIS INSTALLATION HAS A MUCH NICER APPEARANCE AND IS EASIER TO INSTALL & ADJUST.
2
THIS INSTALLATION IS DONE WITH THE SUPPLIED PARTS AND MOUNTS TO A 2X6 BOARD.
PG 1

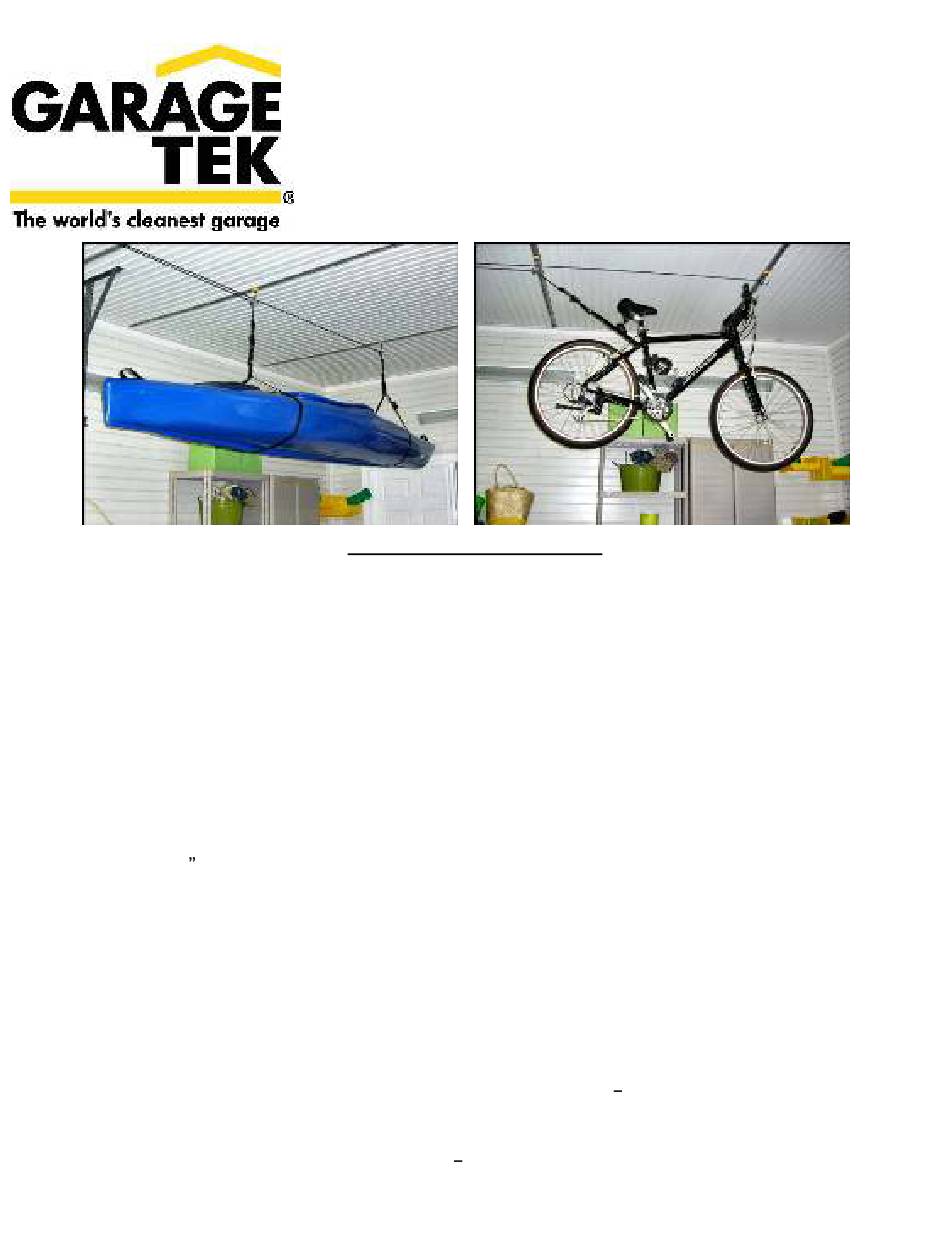

INSTALLATION INSTRUCTIONS
GT4011EE
28 FT OF DROP CORDS
35 FT OF HOISTING CORD
IF INSTALLING THROUGH DRYWALL.)
QUESTIONS ???? CALL 1-866 664 2724
TWO POINT HOIST
USED W/
STANDARD
INSTALLATION
METHOD
X
X
X
X
X
X
X
X
X
X
PGS 2 THRU 4
PGS 5 THRU 8
USED W/
CEILING POWERTRAK
INSTALLATION
METHOD
X
X
X
X
X
REV 1, 12/1
Advertisement
Table of Contents
Summary of Contents for Garage Tek GT4011EE
- Page 1 INSTALLATION INSTRUCTIONS GT4011EE TWO POINT HOIST USED W/ USED W/ STANDARD CEILING POWERTRAK INSTALLATION INSTALLATION SUPPLIED ITEMS METHOD METHOD QUANTITY DESCRIPTION SELF-LOCKING SAFETY BLOCK & TACKLE W/ 28 FT OF DROP CORDS 35 FT OF HOISTING CORD WEB STRAPS W/ METAL BUCKLES...
- Page 2 TWO POINT HOIST - ASSEMBLY INSTRUCTIONS SPECIFICATIONS & OPERATION MAXIMUM LIFTING LOAD 60 LBS MINIMUM LIFTING LOAD 15 LBS (SEE FURTHER INFO BELOW) MAXIMUM VERTICAL LIFT 16 FT (SEE FURTHER INFO BELOW) MECHANICAL ADVANTAGE 3:1 THE UNIQUENESS OF THIS HOIST SYSTEM IS THE SELF-LOCKING SAFETY CLEAT. IT HAS A SPRING LOADED ARM WHICH HOLDS THE CORD IN PLACE WHEN UNATTENDED.
- Page 3 TWO POINT HOIST - ASSEMBLY INSTRUCTIONS STEP #2: PLAN THE LOCATIONS OF THE EYE SCREW, POWERTRAK AND RING HOOKS PER THE ABOVE SKETCH. INSTALL THESE COMPONENTS. STEP 2 STEP 2 STEP 3 STEP 4 STEP #3: ATTACH THE BLOCK / TACKLE TO THE EYE SCREW WITH THE SUPPLIED SHACKLE. STEP #4: SLIDE ON THE 2 MICRO PULLEYS ON THE RING HANGERS AND FED THE DROP CORDS THROUGH THEM.
- Page 4 TWO POINT HOIST - ASSEMBLY INSTRUCTIONS STEP 5 STEP 5 SYSTEM SETUP STEP #5: PLACE THE OBJECT TO BE HOISTED UNDER THE RING HOOKS AND TIE THE DROP CORDS TO THE STRAPS. TRY TO TIE THE STRAPS ONTO THE DROP CORDS AT THE SAME HEIGHT. STEP #6: FASTEN THE STRAPS TO THE OBJECT TO BE LIFTED AND ADJUST THE STRAP LENGTHS AS NEEDED SO THE LOAD IS LEVEL.
- Page 5 TWO POINT HOIST - ASSEMBLY INSTRUCTIONS STANDARD INSTALLATION WITH SUPPLIED PARTS THESE INSTRUCTIONS INSTALL THE HOIST ON A 2X6 WOOD BOARD AND THEN SCREWING THE BOARD TO THE CEILING. PG 5 QUESTIONS ???? CALL 1-866 664 2724 REV 1, 01/1...
- Page 6 TWO POINT HOIST - ASSEMBLY INSTRUCTIONS PG 6 QUESTIONS ???? CALL 1-866 664 2724 REV 1, 01/1...
- Page 7 TWO POINT HOIST - ASSEMBLY INSTRUCTIONS PG 7 QUESTIONS ???? CALL 1-866 664 2724 REV 1, 01/1...
- Page 8 TWO POINT HOIST - ASSEMBLY INSTRUCTIONS PG 8 QUESTIONS ???? CALL 1-866 664 2724 REV 1, 01/1...
