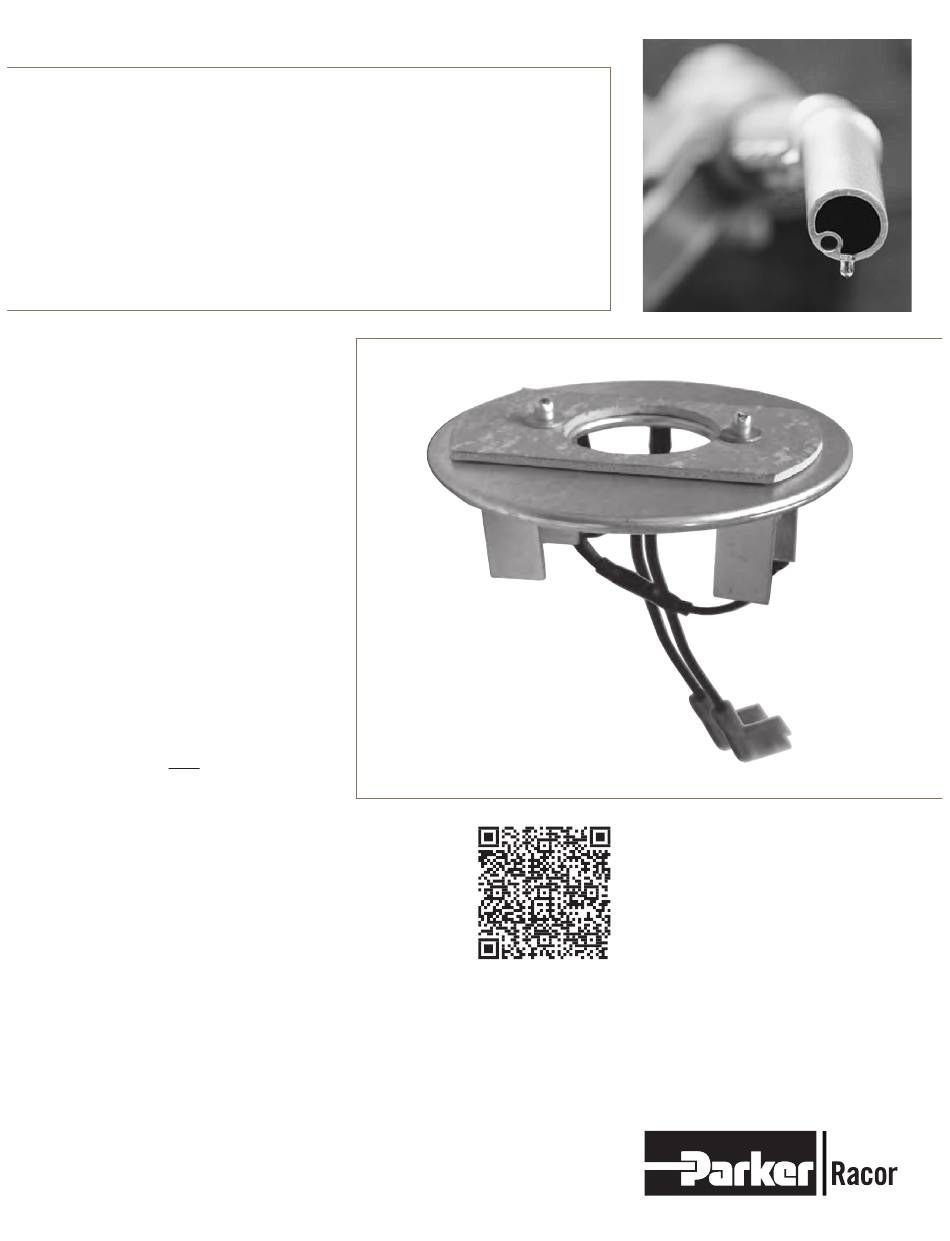

100 Watt Heater Kits
RK15438-01 (12 VDC) and RK15438-02 (24 VDC)
For 500FG Turbine Filters
Instruction Part Number 11-2022 Rev A
Please read and understand all
instructions prior to installation.
The in-filter heater is a cold
weather starting aid with an
internal automatic thermostat that
turns the heater ON when the fuel
temperature drops below 50°F
(10°C) and turns OFF when the
fuel reaches 80°F (27°C). Heat
is supplied in the filter assembly
just below the replacement filter
to melt wax crystals and allow
fuel to pass through the filter for
quick, easy starting. The 100 watt
heater is operated by turning the
ignition switch ON for a minimum
of five minutes prior to starting the
engine.
Note: Racor electrical options
are for use with diesel
applications only.
As of August 2013, all 500FG
Turbine Series heaters are
equipped with a thermal
cut-off (TCO) fuse. This is a
running change.
Thermal cut-offs provide protection
against overheating conditions,
which could lead to fuel filter
component damage.
Additionally, a green heat insulator
pad has been secured to the
heater disc top surface to provide
additional protection and heat
transfer to the filter. Caution!
Do not attempt to remove the
insulator as it is riveted to the
heater disc. Note—some color
transfer to the bottom filter cap is
normal.
Contact Information
Parker Hannifin Corporation
Racor Division
P.O. Box 3208
3400 Finch Road
Modesto, CA 95353
phone 800 344 3286
209 521 7860
fax 209 529 3278
racor@parker.com
parker.com/racor
Advertisement
Table of Contents
Related Manuals for Parker Racor RK15438-01
Summary of Contents for Parker Racor RK15438-01
-
Page 1: Contact Information
As of August 2013, all 500FG Turbine Series heaters are Contact Information equipped with a thermal cut-off (TCO) fuse. This is a running change. Parker Hannifin Corporation Racor Division Thermal cut-offs provide protection P.O. Box 3208 against overheating conditions, 3400 Finch Road... - Page 2 Supplies 15) with a rubber mallet to free it. Remove the rubber bowl gasket (item# 14) and discard. Clean the base (item# 8) gasket gland of any debris with a soft shop cloth. The following customer supplied items are recommended for best results 5.
- Page 3 13. Apply a generous coating of 9. Position, then push the heater bracket tabs onto filter base runner as shown silicone grease to the new bowl in the illustration below. gasket and position it in the base gasket gland. The grease should hold the gasket in position.
-
Page 4: Exploded View
Exploded View 1. T-handle 2. T-handle O-ring 3. Lid 4. Lid Gasket 5. Filter 6. Heater 7. Bracket 9. Heater Feed-thru 8. Base/Housing 10. Checkball Gasket 11. Checkball 12. Conical Baffle 13. Turbine Centrifuge 14. Bowl Gasket 15. Bowl 17. Bowl Drain 16. - Page 5 HEATER WIRING INSTALLATION Caution! Please read carefully before beginning installation. 1. Never power up the heater if 5. Exterior wiring connections there is no fuel in the Racor should be soldered, crimped filter, severe damage may and sealed for protection result to the heater and filter against shorting.
- Page 6 Schematic - For Light-Duty Power Relay Kits: RK 11861 and RK 11862 Relay Racor 2-wire Heater White 18 Red 18 Connection Diagram Optional Racor ‘2-wire’ fuel heaters have no polarity! Toggle Either wire may be used for hot (+) Green 14 Black 14 Switch or ground (-).
- Page 7 (blank page)
- Page 8 USAGE. specifications, designs, comparable new product or availability and pricing, are repair the defective product. subject to change by Parker This express warranty shall be Warning Hannifin Corporation and inapplicable to any product not its subsidiaries at any time...
