Enerwatt EWP-SUB-103GPH User Manual

1. SELECTION AND INSTALLATION OF CABLE
• Power cord selection: external 14 # AWG power cord
• OD size reference: Figure 1
RECOMMENDED
CABLE TYPE
ROUND
CAUTION: Do not select irregularly shaped, rough or grooved surfaces for cables
2. ASSEMBLE THE CABLE GUIDE
a) Strip the outer cable sheath 0.9" (23 mm) (see Figure 2).
b) Cut a 0.5" (13 mm) lead (see Figure 3).
• Insulation core length reference: see Figure 2.
• Metal wire core pull length reference: see Figure 3.
Version française à la page 5
PUMP CONNECTION
and installation instructions

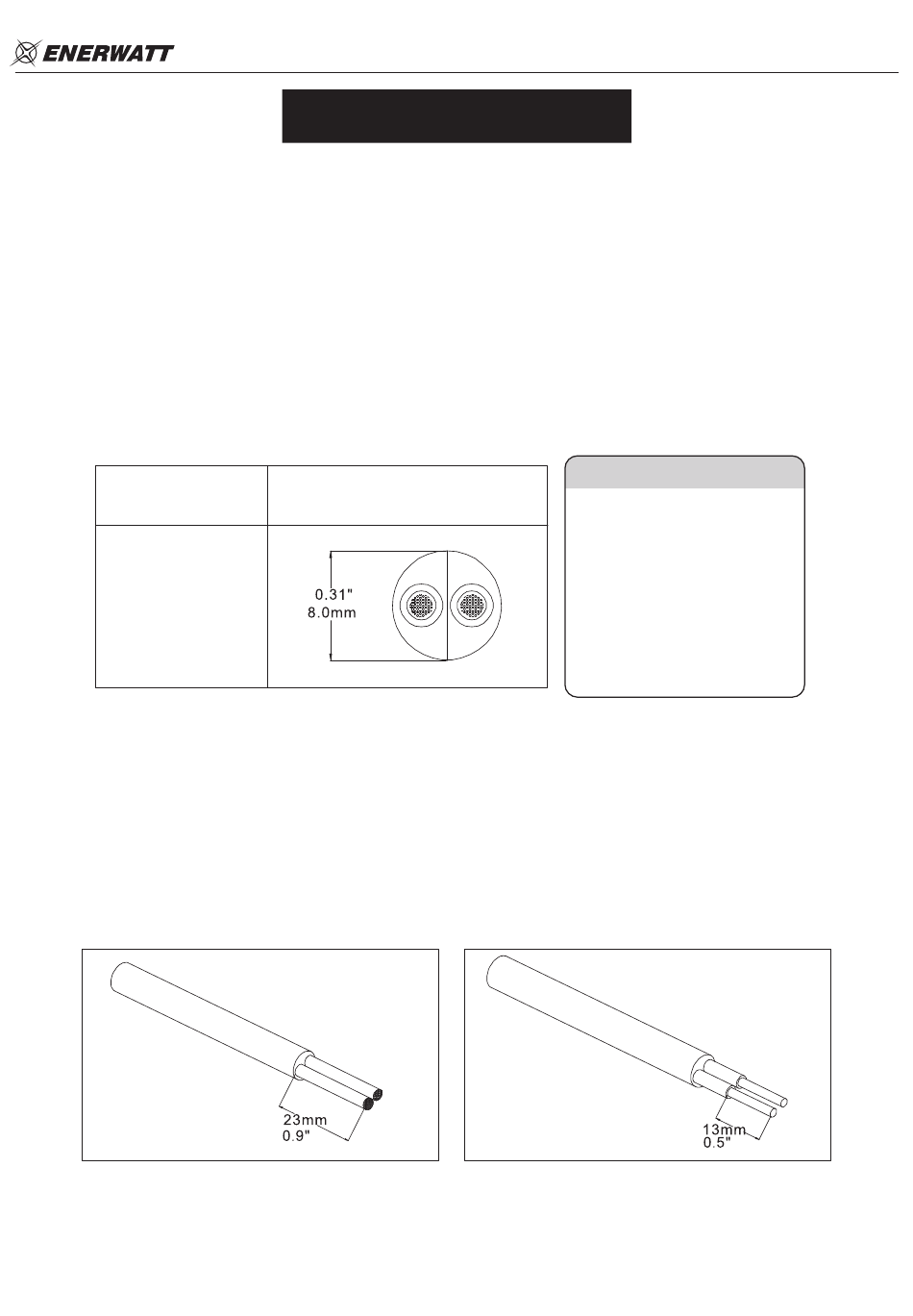

DIMENSION OF CABLE
Figure 1
Figure 2
SUBMERSIBLE PUMP
WARNING
• Incorrect installation will
void the warranty.
• Do not use the solar pump
for petrol, petroleum products,
solvents, diluents or any other
flammable liquid with a flash
point below 82°C (180°F).
• Cannot be used in flammable
gas atmospheres.
Figure 3
USER'S MANUAL
EWP-SUB-103GPH
