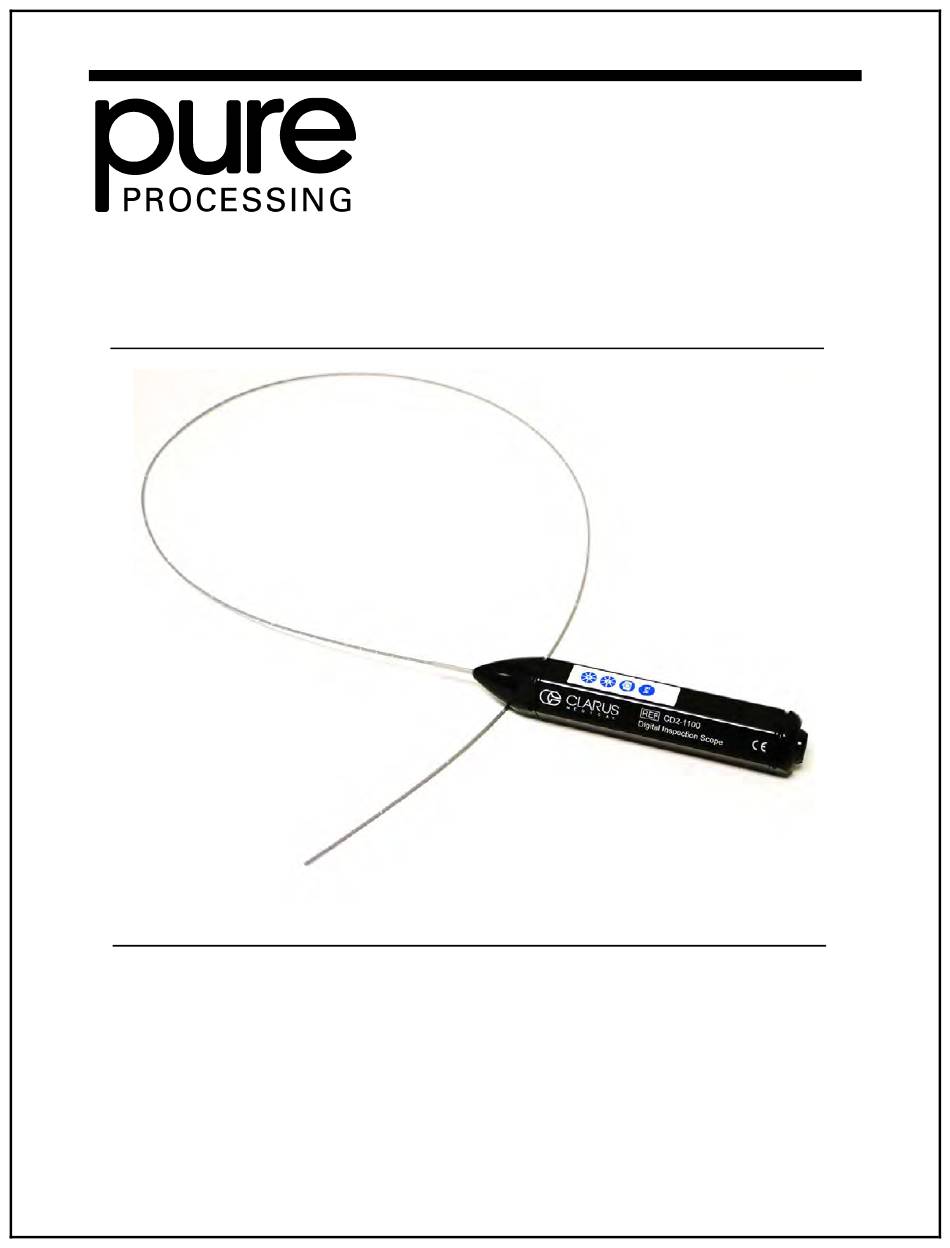

- Page 1 PureClear Digital Inspection Scope PureClear ™ Digital Inspection Scope Model CD2-1100 Model CD2-1100P Instructions For Use (IFU) Pure Processing 470 Mission Street Unit 2 Page 1 of 19 Carol Stream, IL 60188 www.pure-processing.com 601419-001 Rev B (877) 718-6868...
-
Page 2: Table Of Contents
PureClear Digital Inspection Scope Table of Contents Page Symbol Descriptions General Warnings Intended Use, Indications and Contraindications Product Description Digital Inspection Scope Features Digital Inspection Scope Accessories Unpacking, Inspecting, and Maintaining PureClear Medical Scope Viewer Software Connecting Digital Inspection Scope Using PureClear Medical Scope Viewer Software Selecting the Video Device or Camera Capturing Still Pictures... -
Page 3: Symbol Descriptions
PureClear Digital Inspection Scope Symbol Descriptions Read this operating manual for additional warnings and instructions for use. WARNING Date of manufacture GENERAL WARNINGS Follow the instructions for cleaning, disinfecting and sterilizing provided in this document. Do not autoclave the PureClear Digital Inspection Scope. Do not attempt to service any part of this product. -
Page 4: Product Description
PureClear Digital Inspection Scope Product Description The PureClear Digital Inspection Scope allows for enhanced visual inspection by providing light, vision, magnification and the option for documentation in hard-to-see crevices, channels, and lumens in medical devices – areas as small as 2 mm and not visible to the un-aided eye. - Page 5 Routine Maintenance There are no user serviceable parts within the PureClear Digital Inspection Scope. No user maintenance beyond cleaning is required. Refer all service or replacement needs to Pure Processing. The contact information is listed at the end of this document.
-
Page 6: Connecting Digital Inspection Scope
PureClear Digital Inspection Scope PureClear Medical Scope Viewer Software IMPORTANT: Before connecting the PureClear Digital Inspection Scope, install the PureClear Medical Scope Viewer Software from the USB Flash drive on a computer. System Requirements: MS Windows versions 7 or 10. Connecting PureClear Digital Inspection Scope Connect the Camera Cable to the Digital Inspection Scope. -
Page 7: Selecting The Video Device Or Camera
PureClear Digital Inspection Scope Selecting the Video Device or Camera Follow the directions below to select the video device or camera used to capture images using the PureClear Medical Scope Viewer Software. Click the ‘Settings’ Button in the lower left of the PureClear Medical Scope Viewer Software to display video devices or cameras that are being detected by your computer. -
Page 8: Capturing Video Images
PureClear Digital Inspection Scope Capturing Video Images Follow the instructions below for capturing video from the Main Image Window. Select the ‘Video’ Button on the software (FIGURE 6). FIGURE 6: Capturing Video Use any of the following options to start and stop the video: Click the ‘Capture’... -
Page 9: Setting File Name
PureClear Digital Inspection Scope To display a saved image in the Reference Image Window from your File Loc: Click the ‘Open’ Button (FIGURE 9). Click on the Reference Images Folder. Select the file that you would like to display. Click the ‘Open’ Button, to display the image in the Reference Image Window. FIGURE 9: Displaying Saved Reference Image Setting File Name Following the steps below allows you to create a file name that will appear after the underscore when capturing... -
Page 10: Setting Location For Saved Files
PureClear Digital Inspection Scope Setting Location for Saved Files Following the steps below allows you to set the file location of saved images using the PureClear Medical Scope Viewer Software. Click the Ellipse Button (FIGURE 11). Select the file location where you would like to save captured images. Click ‘OK’... -
Page 11: Performing Inspection
PureClear Digital Inspection Scope Performing Inspection Following the steps listed below will ensure the proper use and best performance of the PureClear Digital Inspection Scope. Follow these steps prior to inspection. Secure the Digital Inspection Scope into an arm fixture (optional). Grasp the PureClear Digital Inspection Scope near its distal end and gently insert the Flexible Working Length into the intended device as shown in FIGURE 14. - Page 12 PureClear Digital Inspection Scope ILLUMINATION The illumination capability of the PureClear Digital Inspection Scope can be verified prior to use. Once the scope is connected to your computer with the power on, the distal tip of the PureClear Digital Inspection Scope will cast visible light from its tip and can be observed on any surface to which it is directed The PureClear Digital Inspection Scope will default to the minimum light intensity setting when started.
- Page 13 PureClear Digital Inspection Scope heat. Use of these processes will result in damage to the instrument, and void its warranty. WARNING: The optics of the PureClear Digital Inspection Scope will be damaged or degraded if left exposed to cleaning or disinfecting solutions for extended periods of time. Do not exceed the disinfectant solution manufacturer’s recommended exposure times for cleaning and disinfecting.
-
Page 14: Disposal Of Waste
PureClear Digital Inspection Scope Compatible Sterilizing Methods ® STERIS • ® STERIS SYSTEM 1E • ® STERIS V-PRO ® STERRAD (Tested up to 20 cycles) • STERRAD 100S • STERRAD 50 • STERRAD 200 • STERRAD NX • STERRAD 100NX Complete the previously described INSTRUCTIONS FOR CLEANING section of this manual before proceeding with sterilizing. -
Page 15: Troubleshooting And Servicing
Image files are created selected as the video device (see Advanced Settings below). automatically rapidly. in Settings. * Please contact Pure Processing for a Return Materials Authorization to have the scope evaluated. Page 15 of 19 601419-001 Rev B... -
Page 16: Advanced Settings
PureClear Digital Inspection Scope Advanced Settings Disabling Other Video Devices Follow the instructions below to disable video devices or cameras from capturing images when using the PureClear Inspection Scope Viewer. Click the ‘Settings’ Button to show the video devices or cameras that are being detected by your computer. (FIGURE 17) Click the ‘Advanced’... -
Page 17: Enabling Video Devices
PureClear Digital Inspection Scope Enabling Other Video Devices Follow the following instructions to enable devices that are disabled. Click the ‘Settings’ Button to show the video devices or cameras that are being detected by your computer. (FIGURE 18) Click the ‘Advanced’ Button to bring up the “Advanced – Camera Remote Capture Exclusions” tab. There are two ways to enable devices being detected by your computer, Click the ‘Clear All Exclusions’... -
Page 18: Warranty
1 year from the date of purchase. Pure Processing, at its option, will either repair or replace any components found to be defective or at variance from manufacturer's specifications within this time at no cost to the purchaser. -
Page 19: Specification
PureClear Digital Inspection Scope Specifications Power Source Electrical Power for the Digital Inspection Scope is supplied by a USB port on a computer. Illumination Source LED within the Digital Inspection Scope Handpiece Physical Properties Size PureClear Digital Inspection Scope, Model CD2-1100 and CD2-1100P Working Length 110 cm (43.3”) Scope Diameter (Distal Camera)
