Summary of Contents for Oertzen E 1000

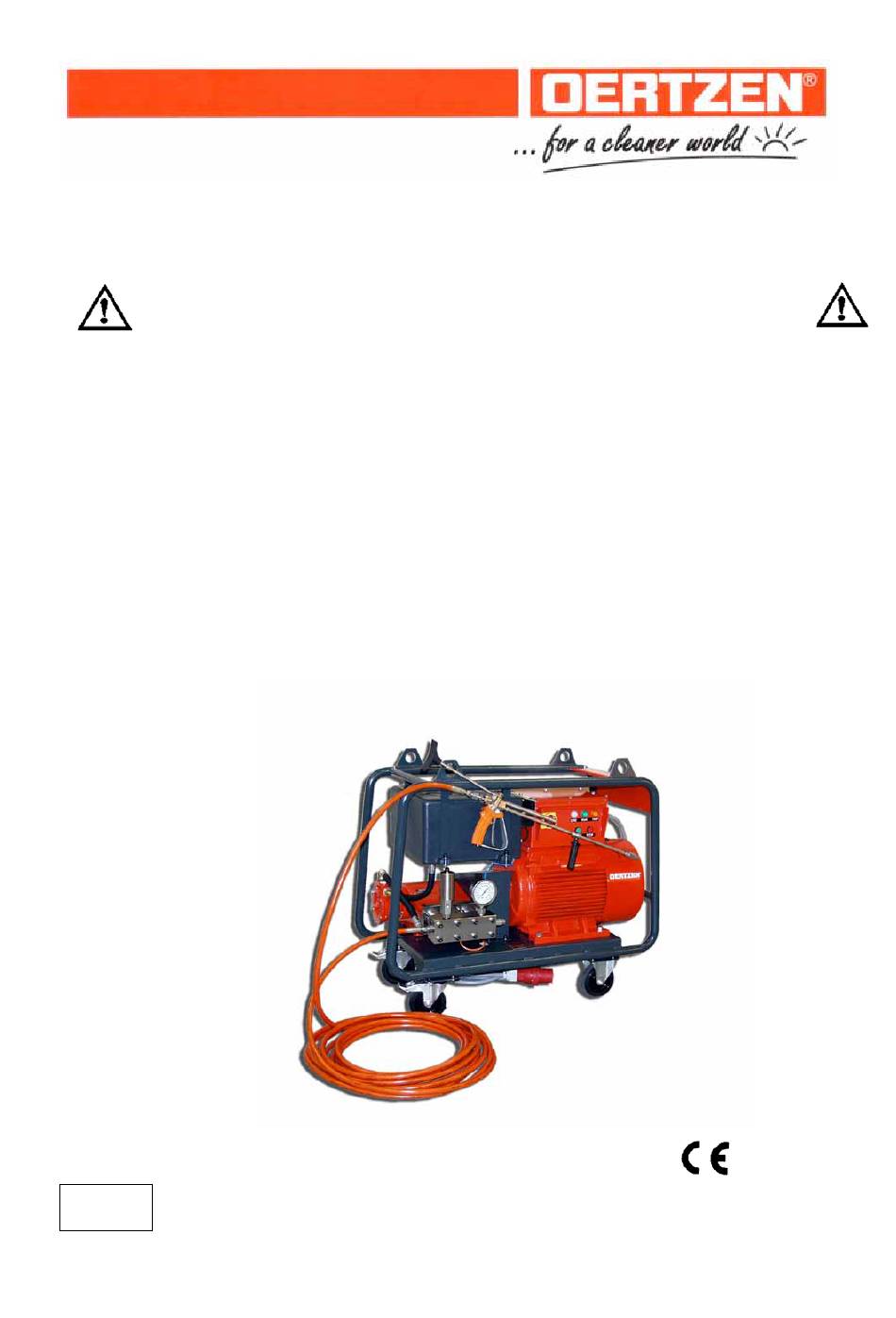

- Page 1 To be read before start-up! Operation Manual The Power of Water E 1000 10/06 von Oertzen GmbH • Ferdinand-Harten-Str. 10 • 22949 Ammersbek • Tel. +49 40 604110 • Fax +49 40 6041149 www.oertzen-gmbh.de • info@oertzen-gmbh.de...
-
Page 2: Table Of Contents
Contents Introduction Page Safety Instructions Page 4 – 5 Configuration/Operation/Illustrations Page 6 – 7 Start-up/Operation/Shut-down Page 8 – 12 Maintenance and Care Page 13 – 14 Electric Wiring Diagram Page Technical Data Page Trouble Shooting Page Declaration of Conformity Page... -
Page 3: Introduction

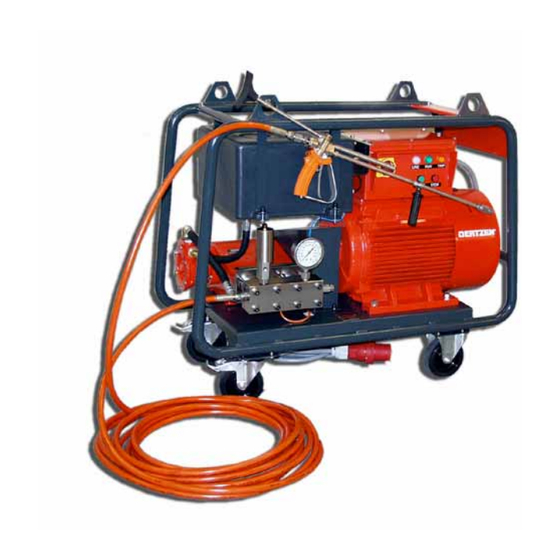

Introduction With this OERTZEN high pressure cleaner you have purchased one of the most durable and reliable machines available on the market. Its balanced ratio of water flow (temperature) and working pressure perfectly meets all cleaning requirements. The OERTZEN high pressure cleaners conform to all European safety regulations which is guaranteed by the CE symbol. -
Page 4: Safety Instructions
Unsuitable respectively defective high pressure hoses often cause severe accidents during operation. Therefore high pressure hoses to be carefully inspected before start-up and replaced by original OERTZEN equipment in case of damage. Use of other than original OERTZEN equipment results in expiration of the EC Declaration of Conformity, as well as product liability and warranty. - Page 5 After work the machine to be locked and secured against unauthorized/accidental operation by means of the safety lever. Use of equipment and/or consumables which is not delivered or expressively approved by OERTZEN results in expiration of the EC Declaration of Conformity, as well as product liability and warranty.
-
Page 6: Configuration/Operation/Illustrations
When opening the dump gun again, the pressure is generated immediately so that works can be continued without delay. The range of applications can be extended by a variety of accessories available from OERTZEN. Contact your local distributor. -
Page 8: Start-Up/Operation/Shut-Down
• Filling of consumables. • Correct oil level of high pressure pump (sight glass/dip stick). High pressure pump: OERTZEN OSHP special pump oil. • Pump/pump connections whether leaking. • Machine only to be run with absolutely clean water. Before connecting the water supply hose, rinse it thoroughly. - Page 9 Connections Water Supply Connect water inlet (6) of the machine to water source with a clean hose (diameter see table below). Before connecting water supply hose, rinse it thoroughly. In case of connection to the potable water distribution, observe DIN 1988 (for momentary connections use a backflow preventer with non- return function and ventilation).
- Page 10 Important Note: High Pressure Connection/Change of Spray Nozzle/Nozzle Arrangement All maintenance/repair work in this section to be carried out by qualified personnel only. Ensure absolute cleanliness of all seal faces and connections. Connections to be tightened with suitable tools. Fix connections by means of a second wrench in order to avoid twisting.
- Page 11 Operation The electric motor starts in star connection and switches over to star- delta connection after a few seconds. This process is audible. After the electric motor has switched over to star-delta connection unlock spray pistol, firmly seize support handle and pull trigger of dump gun. When opening the spray pistol, full working pressure is achieved within a few seconds.
- Page 12 (cuts, abrasions, kinks, etc.) replace high pressure hose for safety reasons. • Only original OERTZEN high pressure hoses (marked) to be used. Otherwise EC Declaration of Conformity and warranty will expire. • Reel up high pressure hose properly without any loops.
-
Page 13: Maintenance And Care
If this happens repeatedly, arrange replacement of all pump seals by qualified personnel. For OERTZEN high pressure pumps only OERTZEN OSHP special pump oil to be used, as otherwise you will loose your right to claim under guarantee. - Page 14 Pre-Filter A water filter (6) installed in the water inlet. The filter cartridge to be replaced whenever. Frost Protection Frost protection of the entire water system during storage and transport is a must, as otherwise heavy damage on the system and severe dangers during operation may occur.
-
Page 15: Electric Wiring Diagram
Electric Wiring Diagrams Technical Data Technical Data E 1000 Water flow/adjustable 1250 l/h Unloading pressure 1000 bar Water feed temperature max. 60 °c Working pressure 950 bar Normal current (50 Hz) 3 ~ 400 V Power output 48 HP/36 kW... -
Page 16: Trouble Shooting
Any repair work must only be carried out by qualified personnel. Only original OERTZEN equipment to be installed, as otherwise warranty and Declaration of Conformity will cease, health and safety standards are not guaranteed.
