Summary of Contents for Axema Access Control AB Gigaset N510 IP Pro

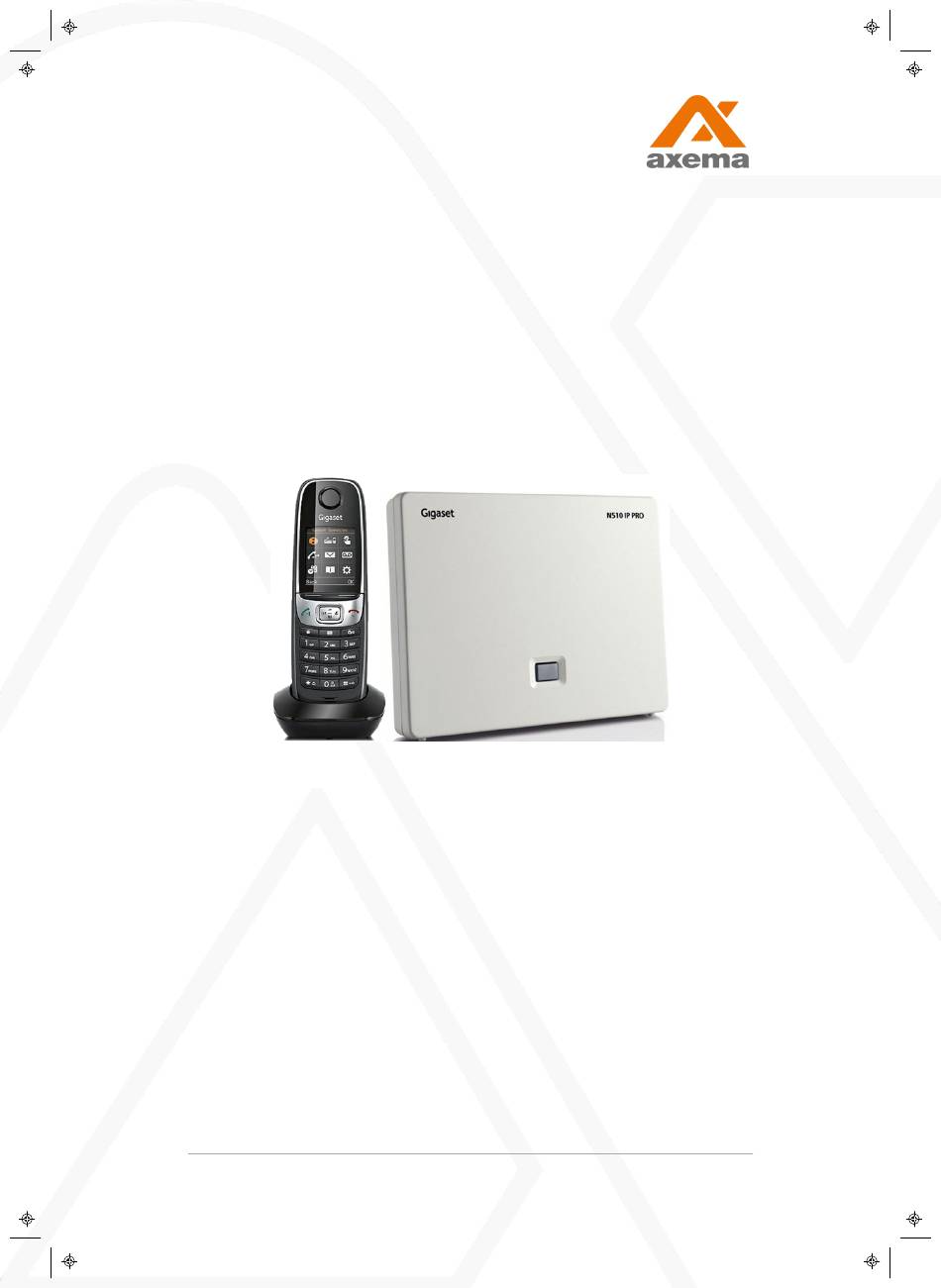

- Page 1 Manual Updated 2018-11-17 Gigaset N510 IP Pro & Handset C620H Axema Access Control AB | Box 90215 | 120 23 Stockholm, Sweden | 08-722 34 40 | info@axema.se | www.axema.se...
-
Page 2: Table Of Contents
Gigaset N510 IP Pro & Handset C620H Introduction Extension numbers Multiple base stations Registering a hand set Select the hand set language IP address Log in to the base station Change PIN Change IP address Add hand sets over the internet. -
Page 3: Introduction
Introduction This manual describes how to start up hand sets and configure corresponding extension number. Extension numbers VAKA with C10 supports up to 400 unique extension numbers (100-500). VAKA's extension number is 99. It is advantageous to keep track of Gigaset base stations and hand sets in VAKA. Axema recommends that the first number corresponds to a stairwell or building, the second number to the floor number and the third number to the apartment. -
Page 4: Select The Hand Set Language
appears. The PIN is 0000. 6. The hand set is now registered. Select the hand set language 1. Press the big middle button to enter the menu. 2. Select Settings - Language and scroll to the desired language, en with Select . -
Page 5: Change Pin
Change PIN Log in to the base station 2. Select the Settings tab followed by Management - Miscellaneous . 3. Enter a New PIN , end by pressing Set . Change IP address Log in to the base station 2. Select the Settings tab followed by Network - IP Configuration . 3. -
Page 6: Register A Name To An Extension Number
11. Save by clicking on Set . Sometimes a second click has to be made to save the last extension. The extension is saved when Status shows Registered . The extensions has to be entered in VAKA and each base station support up to six extensions. -
Page 7: Factory Reset
5. From the VAKA main menu, select Users and select an organization group . 6. Enter the extension number in the phone number field . The organization group can be called from the name list in compatible readers or with B followed by the quick dial number or extension number. Factory reset Method 1 Log in to the base station... - Page 8 Radio frequency range 1880–1900 MHz Duplex method Time multiplex, 10 ms frame length Repeat frequency of the trans- 100 Hz mission pulse Length of the transmission pulse 370 μs Channel grid 1728 kHz Bit rate 1152 kbit/s Modulation GFSK Language code 32 kbit/s Transmission power 10 mW, average power per channel 50 mW...
