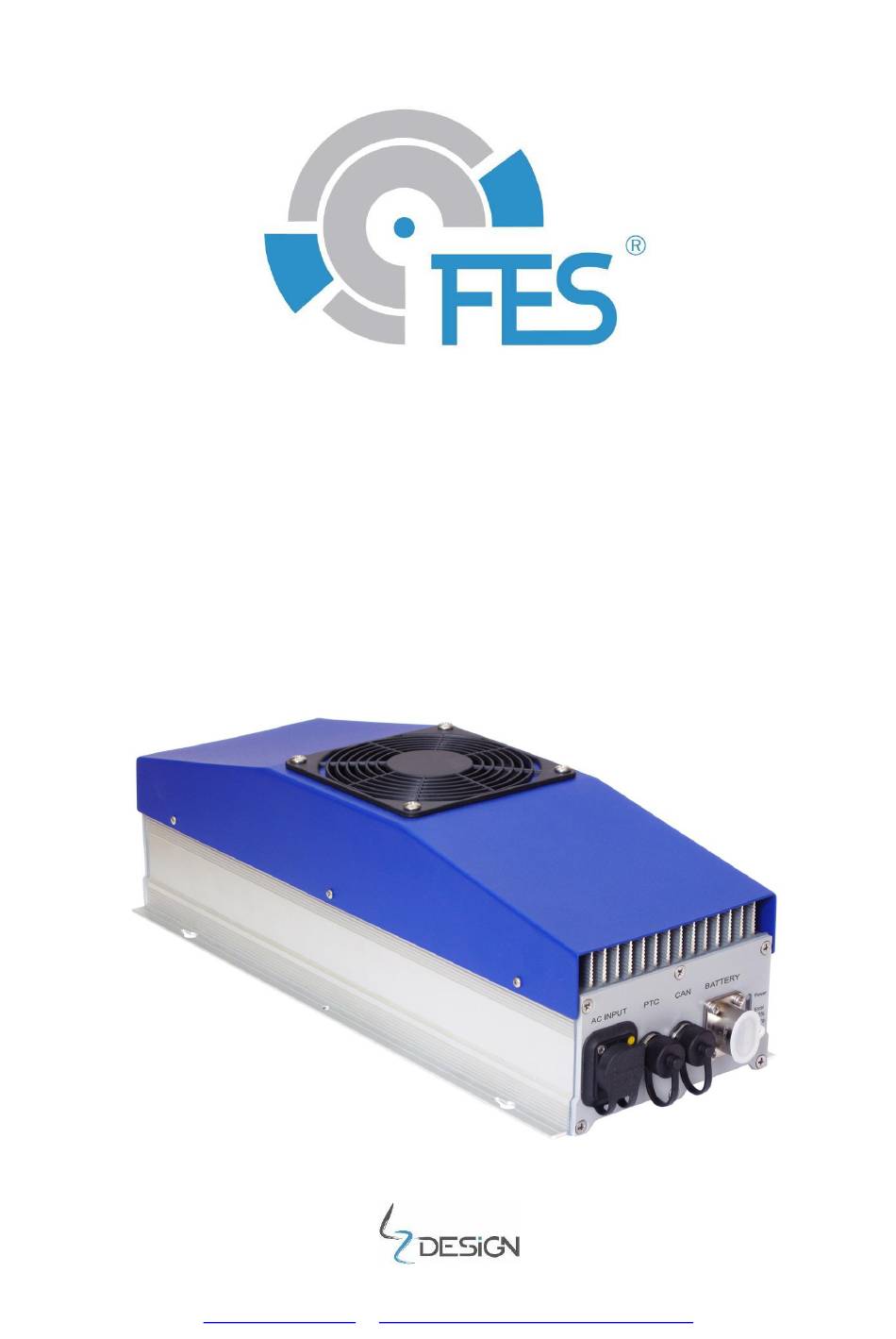

- Page 1 FES KOP2300 High Power Charger Suitable for charging FES 14S Battery packs User manual, Version 1.0 LZ design d.o.o., • Brod 3D, 1370 Logatec, Slovenia • tel +386 59 948 898 info@lzdesign.si • www.front-electric-sustainer.com...
-
Page 2: Table Of Contents
FES KOP2300 High Power Charger, v1.0 August 2019 Table of content 1. Important notices ..................... 3 1.1 Limited Warranty ....................3 1.2 Invalid Warranty ....................3 2. Introduction ......................4 3. Technical characteristics ................... 4 3.1 Mains current limiter .................... 5 4. -
Page 3: Important Notices
This product is warranted to be free from defects in materials or workmanship for two years from the date of purchase. Within this period, LZ design will, at its sole option, repair or replace any components that fail in normal use. Such repair or replacement will be made at no charge to the customer for parts and labour, however the customer shall be responsible for any transportation cost. -
Page 4: Introduction
August 2019 2. Introduction FES KOP2300 battery charger is modern fully automatic device suitable not only for charging but also for maintaining and monitoring the batteries. The charger stores data about charging times and Ah charged. This data can be accessed for further analysis. The... -
Page 5: Mains Current Limiter
3.1 Mains current limiter The mains current is limited to max. 13 A for 230 V systems and to max. 16 A for 120 V systems. FES KOP2300 automatically detects the mains voltage. Comment: For 230 V mains voltage and full output power the charger needs approx. 10.5 A from the socket. -
Page 6: Connections
FES KOP2300 High Power Charger, v1.0 August 2019 d) Vertical mounting The cables and terminals must be on the lower side as shown on the image. Do not make any holes on the chassis, as components can be Caution: damaged. -
Page 7: Led Functions
FES KOP2300 High Power Charger, v1.0 August 2019 5. LED Functions Power 100 % Charging Error Function No firmware loaded or bad firmware Flashing version (bootloader is active). No battery connected or battery completely empty. Battery voltage under the minimal... -
Page 8: Charger To Fes Battery Pack Connection And Charging
Battery to charger connection procedure: 1. Connect RED + and BLUE - cables from charger to first battery pack. 2. Connect the charger and the battery pack with FES KOP2300 BMS-Charger-PC cable. FES KOP2300 BMS-Charger-PC cable 3. Plug in the charger to the outlet (220 V AC, 50-60 hz). - Page 9 FES KOP2300 High Power Charger, v1.0 August 2019 6. In normal mode, the green »BMS Power« LED is flashing. This means that the BMS is turned ON, but not necessary balancing. Balancing starts when one cell reaches a pre-set balancing voltage value, usually 4.1 (this can be changed using BMS Control Software).
-
Page 10: Error Codes
BMS. Battery voltage is very low. The battery voltage is lower than the minimum set voltage level at which the charger is allowed to start. Contact local dealer of LZ design directly. Page 10 of 11... -
Page 11: Revision History
FES KOP2300 High Power Charger, v1.0 August 2019 9. Revision history August 2019 Initial release, user manual v1.0 Page 11 of 11...
