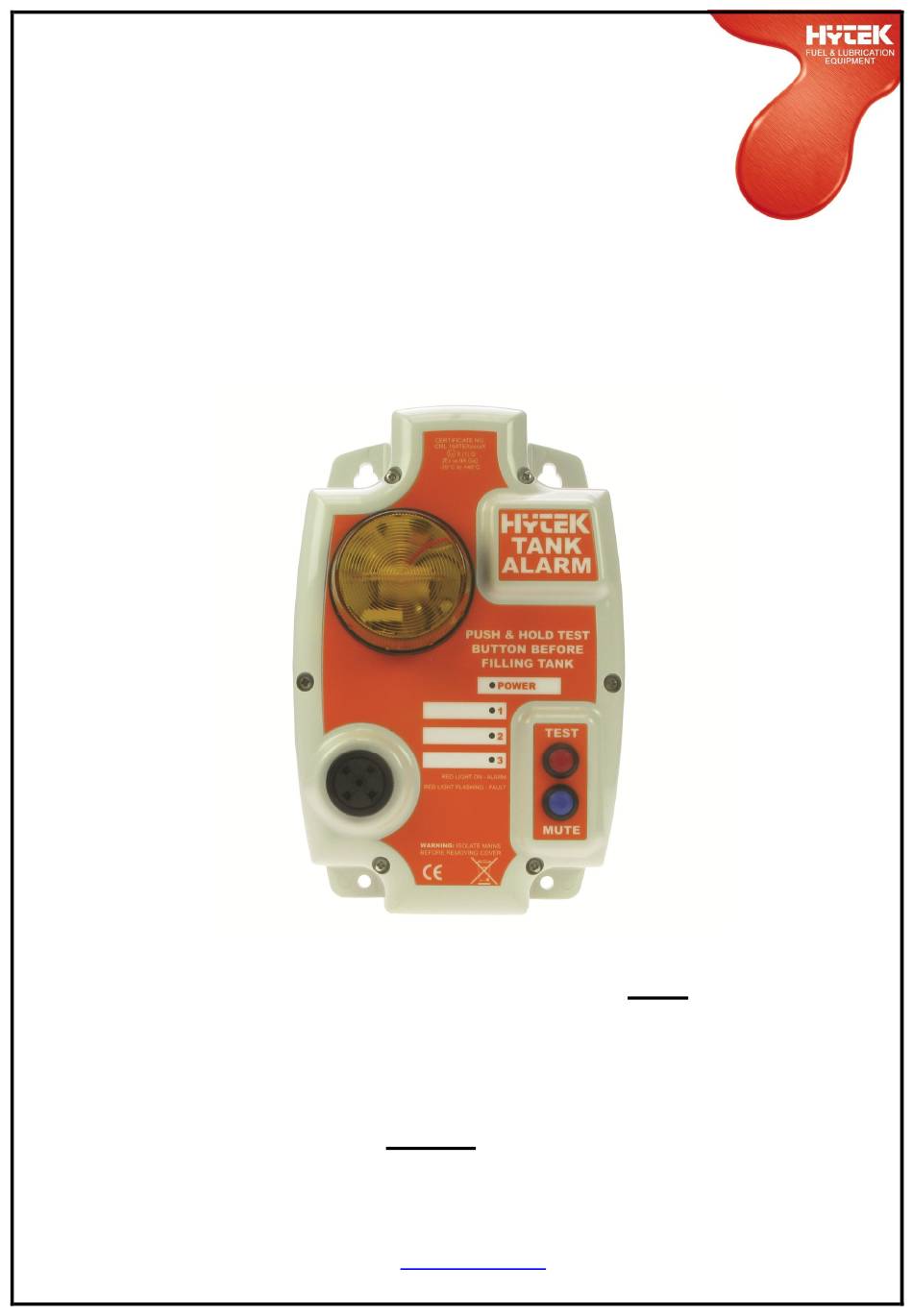

HYTEK ATEX APPROVED
Applies to the following models only:
Please read carefully before commencing installation
Registered Office: HYTEK (GB) LIMITED, Delta House, Green Street, Elsenham, Bishop's Stortford
Tel: +44 (0) 1279 815 600 Fax: +44 (0) 1279 812 978 email: info@hytekgb.com
Technical Data
TANK ALARM
- TA3A.P
- TA3A.B
CM22 6DS UK. Registered in England No. 1915382
Web:
www.hytekgb.com
- TA3A.PR
- TA3A.BR
S826/6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Hytek TA3A.P
-
Page 1: Technical Data
- TA3A.BR Please read carefully before commencing installation Registered Office: HYTEK (GB) LIMITED, Delta House, Green Street, Elsenham, Bishop’s Stortford CM22 6DS UK. Registered in England No. 1915382 Tel: +44 (0) 1279 815 600 Fax: +44 (0) 1279 812 978 email: info@hytekgb.com Web: www.hytekgb.com... -
Page 2: Environmental Information
PRODUCT DESCRIPTION The Hytek Tank Alarm is designed to provide visual and audible alarms whenever a predetermined level in a storage tank is reached. The system consists of a maximum of three-weighted float switches and an enclosure weatherproof to an IP54 standard which contains the visual and audible alarms and the electronic PCB. -
Page 3: Important Warning Notes
3. The user must ensure that chemicals present in the atmosphere do not affect the performance or degrade the polycarbonate enclosure. 4. Only the correct ATEX/IECEx certified float switches supplied by Hytek can be used with the Tank Alarm. 5. Installation of this equipment and its associated tank, pipe work and fittings should only be carried out by qualified fuel installation engineers. -
Page 4: Specification
6. The installation must be carried out in accordance with the requirements of EN 60079-14 the latest relevant electrical and local authority regulations and standards. 7. It must not be used with any liquids or applications other than those specified. We will accept no warranty claims or liability if it is used for other liquids or applications. -
Page 5: Power Supply
POWER SUPPLY 4. The TA3A.P and TA3A.PR are designed to have a continual 230V AC supply fused at a rating of 6 amps max. The TA3A.B and TA3A.BR have an internal battery power supply. See Connections diagram. CONNECTIONS DIAGRAM FLOAT SWITCH INSTALLATION 5. - Page 6 FLOAT SWITCH INSTALLATION DIAGRAM FLOAT SWITCH ACTIVATION AND CONFIGURATION 6. Connect the float switch cables to the float switch terminals inside the alarm box as per connections diagram. 7. After connecting the desired amount of float switches, activate the corresponding channels by setting the appropriate channel activation dipswitch to "ON"...
-
Page 7: Completion Of Installation
10. Install batteries provided (TA3A.B & TA3A.BR Only). 11. Refit lid to alarm box ensuring that ribbon cable is reconnected to the main PCB and the lid seal is in place. 12. Switch on power. The green "POWER" LED should illuminate (TA3A.P, TA3A.PR only). OPERATION S826/6... - Page 8 POWER STATUS MAINS VERSION: The Power LED will remain illuminated to indicate that there is mains power to the unit BATTERY VERSION: The Battery LED will flash every 2 seconds to indicate that there is battery power to the unit. If the battery charge is too low then the sounder will activate intermittently to indicate this.
-
Page 9: Fitting Dimensions
FITTING DIMENSIONS S826/6... - Page 10 PARTS LIST HYTEK TANK ALARM PARTS LIST REF. PART NUMBER PART DESCRIPTION 1▼ TA3A.LID Tank alarm lid with all components - MAINS ► TA3A.LID.BAT Tank alarm lid with all components - BATTERY TA.BEACON Tank alarm amber beacon 3▼ TA3A.LABM Display lid label (mains) ►...
-
Page 11: Outside View
OUTSIDE VIEW TA3A.P (230V AC) - SHOWN S826/6... -
Page 12: Declaration Of Conformity
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROTECTED BY COPYRIGHT © AND PROPERTY LAWS AND IS THE SOLE PROPERTY OF HYTEK (GB) LTD. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF HYTEK (GB) LTD IS PROHIBITED.
