Dorset trovan LID-WAP Mounting Manual

LID-WAP:
Mounting manual
RFID
module
This manual is intended for those who will mount the LID-WAP into the
for PSION
WorkAbout Pro them selves. Follow this manual step by step.
Work DORSET
damage caused by LID-WAP module or its assembly.
About
Pro
Warning: Always take sufficient countermeasures for ESD.
Document version: 2.0
th
Date: March 6 2009

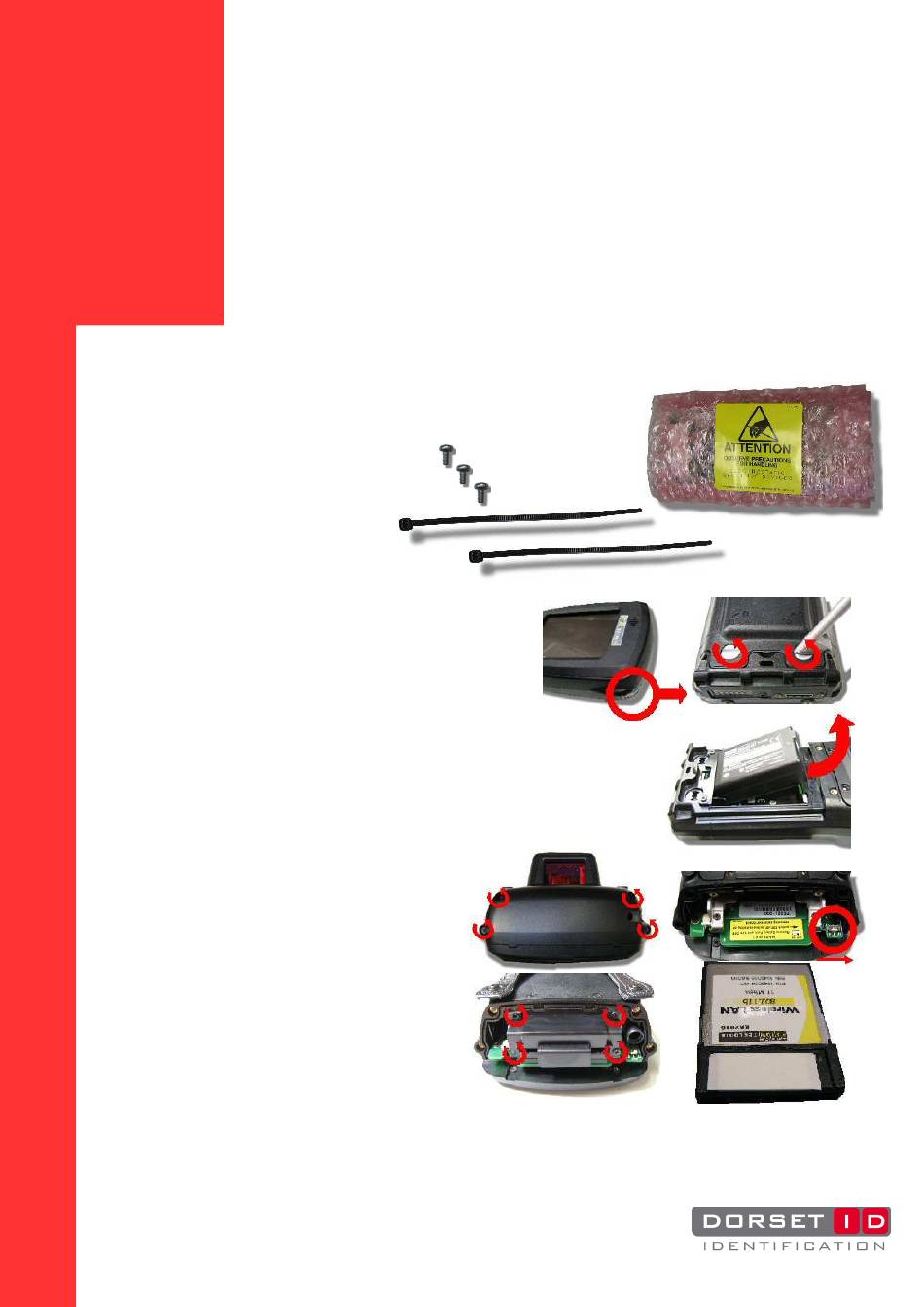

Step 1: Checking the package content.

The LID-WAP package must contain the following parts:
1x LID-WAP pcb including antenna, wrapped in antistatic foil.
2x tie-wraps.
4x M2 screw.

Step 2: Removing the battery pack.

Before you open the WorkAbout Pro, it is necessary to remove the battery pack. This is done
for safety reasons.
2.1 Take the stylus out of the WorkAbout Pro.
2.2 Left turn the lock screws of the
compartment using the back of the stylus.
2.3 Remove the lid and remove the battery-pack.

Step 3: Opening the WorkAbout Pro.

3.1 Unscrew the 4 screws on the front
WorkAbout Pro.
3.2 Remove the cap and move the
switch that is located on the right
side into the "off position". If there is
no Wifi module is installed please go
to step 3.5.
3.3 Unscrew the Wifi cap (if installed).
3.4 Remove Wifi module and place the
adhesive foam pad. (see picture for
the correct position).
IDENTIFICATION B.V.
battery
1
trovan trovan trovan trovan
is NOT responsible for ANY
2.1
3.1
3.3
®
2.2
2.3
of the
3.2
3.4
