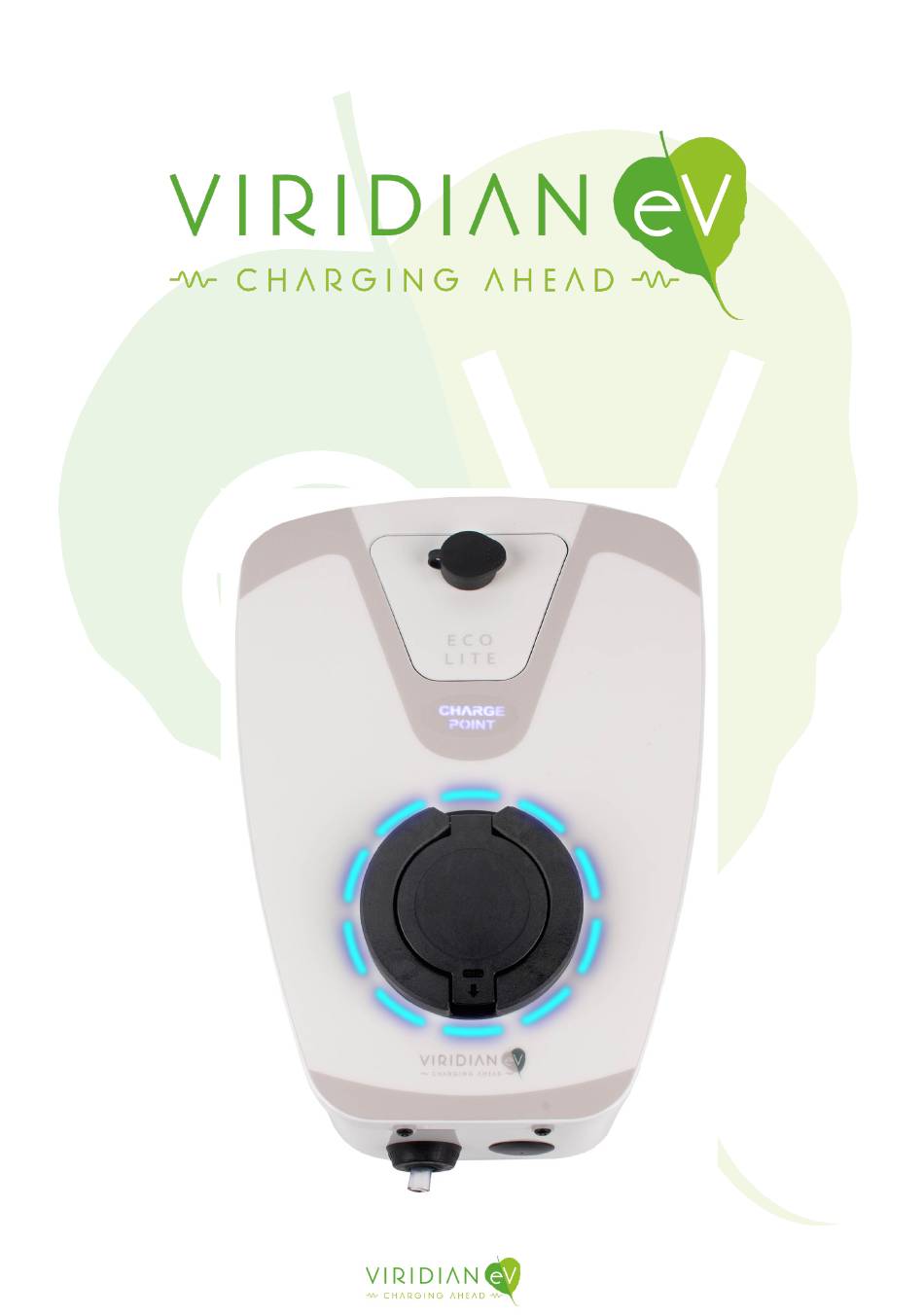

- Page 1 Install manual: Viridian EV EcoLite Basic charge point ® Install manual ® Viridian EV EcoLite Basic charge point Iss 3 - Apr 2019 Page 1 of 15...
- Page 2 Basic charge point ® ® This manual is intended to instruct in the proper installation of a Viridian EV EcoLite charge point. Please note that when installing this equipment care must be taken to ensure that all local and national safety and planning requirements are met.
- Page 3 Install manual: Viridian EV EcoLite Basic charge point ® WARNING ® The EcoLite charge point range is designed for electric vehicle (EV) charging only. It is designed to only allow the flow of electricity once an EV is connected and correct communication is established.
- Page 4 Install manual: Viridian EV EcoLite Basic charge point ® Model Number Electrical & IP information Serial Number Fig. B – Identification/serial label breakdown Mounting of the charge point The charge point should be mounted vertically on either a post or a wall. The position of the charge point should allow all main functions of the charge point to be accessible between 750mm and 1200mm of the ground in accordance with BS8300:2009, unless otherwise instructed not to.
-
Page 5: Installation Method
Install manual: Viridian EV EcoLite Basic charge point ® Installation method DANGER Installation requires access to the properties electrical consumer unit. Ensure that power to it is isolated before commencing any work. WARNING Due to the high and constant current draw, the charge point must be installed on a dedicated spur within the consumer unit. - Page 6 Install manual: Viridian EV EcoLite Basic charge point ® • Connect the LIVE(s) and NEUTRAL to the correct terminals of the fitted electrical protection or mains terminal block (Fig. C - 2), observing colours and/or markings on the electrical protection.
- Page 7 Install manual: Viridian EV EcoLite Basic charge point ® LED Brightness Configuration WARNING This is not user configurable and must be set by a qualified electrician / installer as it requires isolating power to the unit and removing the enclosure lid.
- Page 8 Install manual: Viridian EV EcoLite Basic charge point ® Primary SLS Configuration This primary / recommended configuration is for boards using a common SLS wiring type, released from March 2019 (PCB Issue G onwards). It uses an isolated 4 wire system to improve reliability in certain environments.
- Page 9 C - An electric vehicle is connected and charging BLUE D - An electric vehicle is connected but ventilation is required. This mode is not supported by Viridian EV charge points so will not charge. Fault detected, charging is not allowed. See troubleshooting or seek (Pulsing) technical support.
-
Page 10: Warranty
Viridian EV Units B & C The Mallards South Cerney Gloucestershire GL7 5TQ Tel: +44 (0)177 230 7172 www.viridianev.co.uk Viridian EV is a trading style of Ecoharmony Ltd info@viridianev.co.uk www.ecoharmony.co.uk Iss 3 - Apr 2019 Page 10 of 15... - Page 11 Install manual: Viridian EV EcoLite Basic charge point ® Annex 1: EcoLite Current Configuration WARNING This is not user configurable and must be set by a qualified electrician / installer. Any changes to the maximum advertised current of the unit need to be done with important consideration for other components and infrastructure.
- Page 12 Install manual: Viridian EV EcoLite Basic charge point ® Annex 2: EcoLite LED Brightness and SLS Configuration WARNING This is not user configurable and must be set by a qualified electrician / installer as it requires isolating power to the unit and removing the enclosure lid.
- Page 13 Install manual: Viridian EV EcoLite Basic charge point ® Annex 3: EcoLite dimensions and mounting information The drawing below indicates dimensions of the EcoLite charge point and the position of the mounting holes to aid in mounting the unit to a wall or post. Note; drawing is not to scale.
- Page 14 The below terminal torque settings apply to the switchgear specified for assembly at the time of writing and is correct as per the manufacturers specifications. It is always reccomended to check the manufacturer’s specifications if fitting any other switchgear than that supplied by Viridian EV. M5 terminals on all switchgear: 2NM M3 terminals on contactor (A1 + A2): 0.8NM...
- Page 15 Install manual: Viridian EV EcoLite Basic charge point ® Annex 5: Legacy EcoLites and SLS backwards compatability WARNING This is not user configurable and must be set by a qualified electrician / installer. Any changes to the maximum advertised current of the unit need to be done with consideration for other components and infrastructure.
