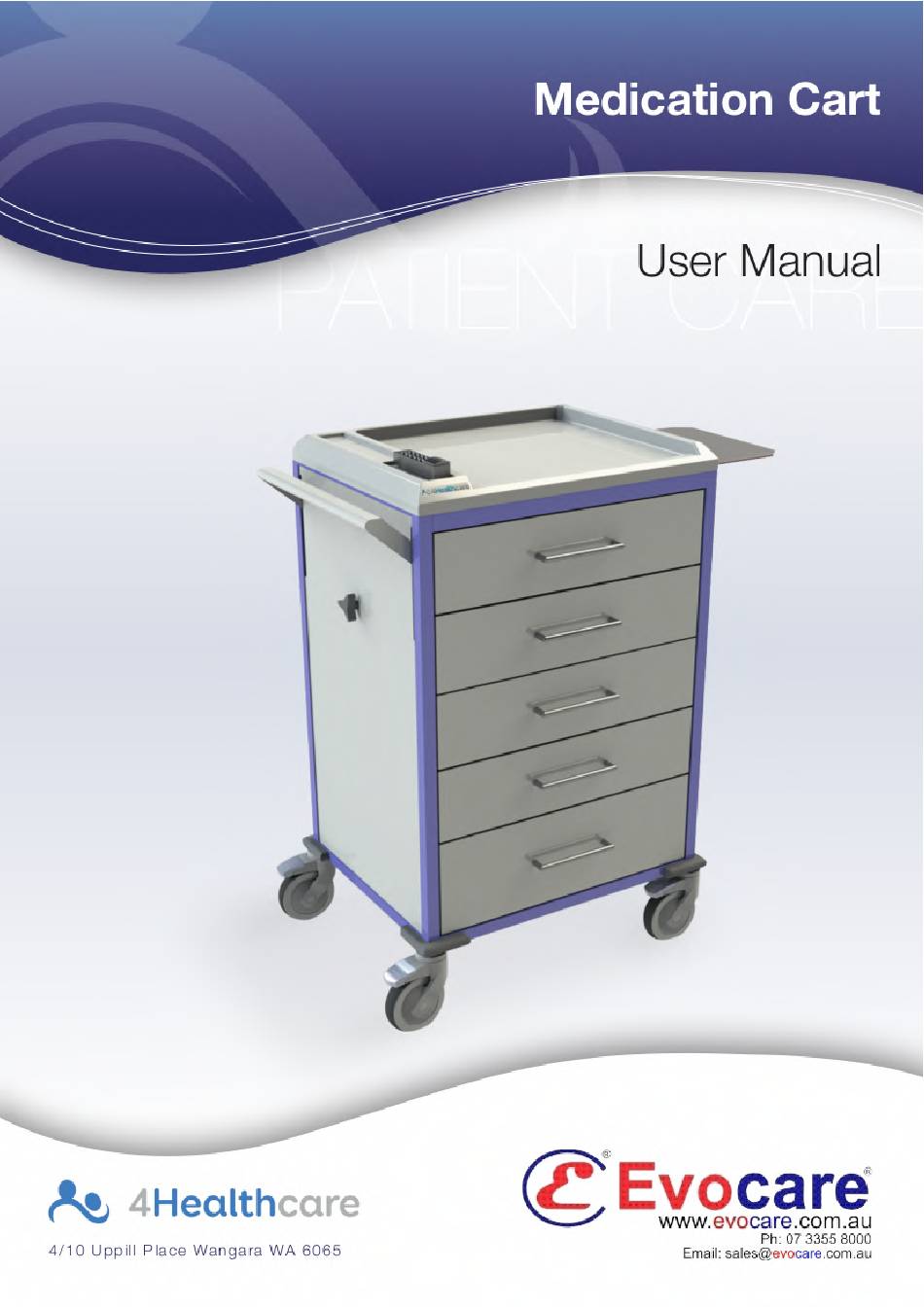

Summary of Contents for Evocare Medication Cart
-
Page 2: Table Of Contents
Medication Carts Manual Lock Operating Instructions ....3 Locking the Cart ..........4 Unlocking the Cart ..........5 Lock and Key Replacement ......... 6 Manual Override Opening Procedure ....7 Assembly Diagrams ........8 & 9 Warranty ............10... -
Page 3: Manual Lock Operating Instructions
Manual Lock Operating Instructions OVERVIEW The cart has been fitted with a manual operated lock with key access, the lock controls access to the drawers. When the cart is unlocked the drawers should open freely with little resistance. If the drawers to do not open freely do not force them, check that the cart is unlocked correctly. -
Page 4: Locking The Cart
Locking the Cart Turn the handle clockwise until it stops in the vertical position. Turn the key clockwise 90º, the cart is now locked. Remove the key and keep it in a safe place. See figure 2.1 & 2.2 below Rotate Handle Clockwise Rotate Key Clockwise Figure 2.1... -
Page 5: Unlocking The Cart
Unlocking the Cart Turn the key 90Deg anti-clockwise until it stops in the vertical position. Turn the handle anti-clockwise until it stops, the cart is now unlocked and the drawers are free to open. See figure 3.1, 3.2 below Rotate Handle Anti-Clockwise Rotate Key Anti-Clockwise Figure 3.1 Figure 3.2 Unlocked position with key removed... -
Page 6: Lock And Key Replacement
Lock & Key Relacement The key and the barrel on the lock body have 3 numbers stamped on them with the last two numbers matching. Number Placement CLEANING AND DISINFECTION Clean all exposed surfaces and remove organic debris by wiping with a moistened soft textured cloth with low strength detergent and warm water. -
Page 7: Manual Override Opening Procedure
Manual Override Opening Procedure This document is for use in an emergency only. It is not to be distributed by unauthorised personal. Step 2 Step 1 The lock rail is located at the rear left hand corner of the cart. On the underside of the frame work there are 2 bolts.
