Wall-Mounting Instructions
These instructions describe how to mount up to two BayStack 350 or BayStack 450 switches on
any wall that can safely support the weight of the switches, including any attached cables. If you
are wall-mounting two switches, remove the rubber footpads.
Note: Because wall compositions vary at different sites, Nortel Networks
recommends that an experienced maintenance person choose the appropriate
wall-mounting hardware to safely install the switch.
Optionally, attach the switch to a piece of plywood that is at least 1.27 centimeters (0.50 inch)
thick and firmly secured to the wall, preferably to the wall studs.
Contents of Wall-Mounting Kit
The wall-mounting kit contains the following items
Legend
1 =
Single wall-mount brackets
(PN 304406-A), qty 2
2 =
Dual wall-mount brackets
(PN 304959-A), qty 2
3 =
6-32 x 1/4 flathead
screws, qty 16
4 =
Safety tray
(PN 307507-A), qty 1
5 =
Wall-Mounting Instructions
(PN 304602-A)

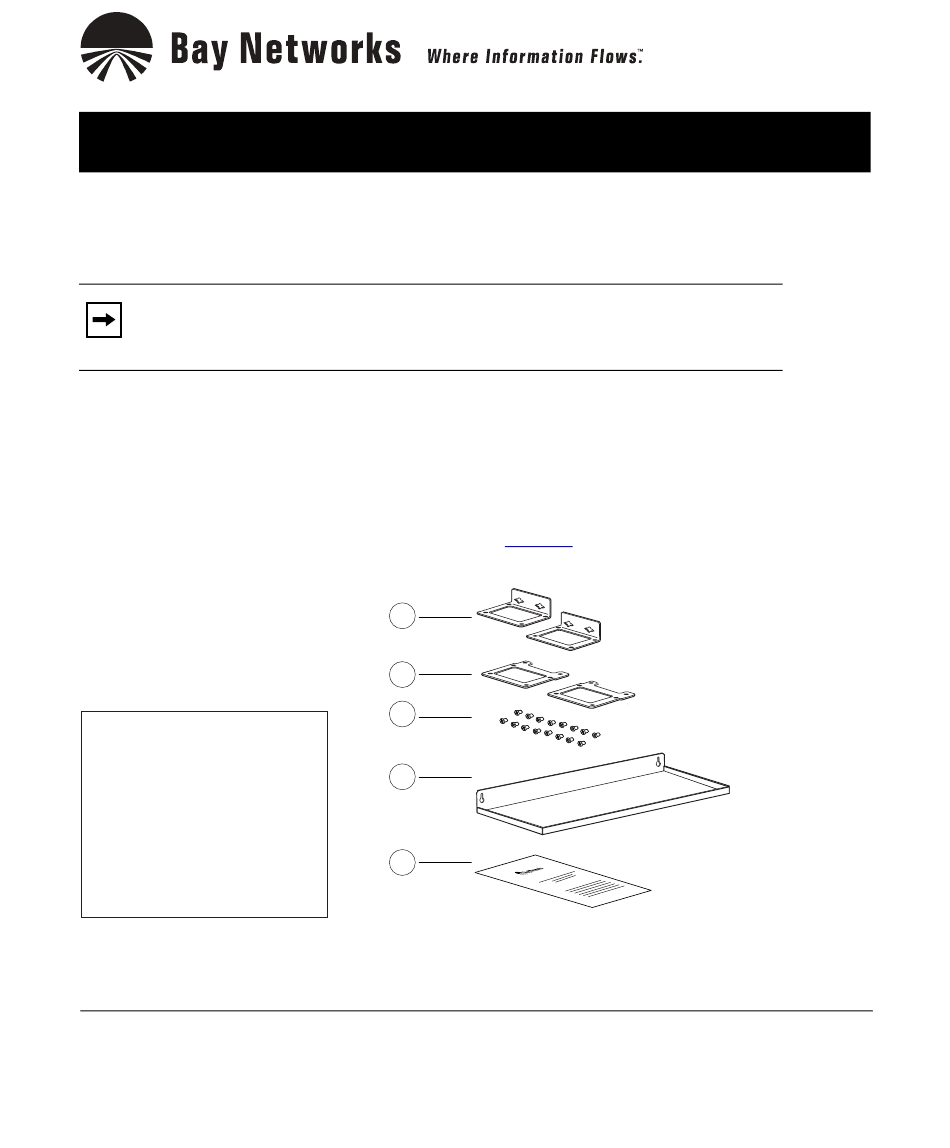

Figure 1.
Package Contents
1
2
3
4
5
Bay Networks, Inc., Corporate Headquarters
4401 Great America Parkway, Santa Clara, CA 95054
8 Federal Street, Billerica, MA 01821
*304602-A Rev 00*
(Figure
1):
BS45060A
Advertisement
Summary of Contents for Bay Networks 304406-A
- Page 1 Contents of Wall-Mounting Kit The wall-mounting kit contains the following items (Figure Legend Single wall-mount brackets (PN 304406-A), qty 2 Dual wall-mount brackets (PN 304959-A), qty 2 6-32 x 1/4 flathead screws, qty 16 Safety tray...
- Page 2 Part No. 304602-A Rev 00 Additional Wall-Mounting Hardware You will also need four screws (not supplied). The screw size and type depends on the composition of the wall on which you intend to mount the switch. Have an experienced maintenance person choose the appropriate hardware for your wall composition.
-
Page 3: Tools Required
Part No. 304602-A Rev 00 Tools Required Depending on your installation method (see “Additional Wall-Mounting Hardware” on page you will need only a Phillips (crosshead) screwdriver. Before You Begin Before mounting the switch on a wall, note the following considerations: •... -
Page 4: Installation
• Attaching Wall-Mount Brackets • Mounting the Unit to the Wall AC power strip (optional) Legend 1 = (PN 304406-A) 2 = (PN 304959-A) 3 = 6-32 X 1/4 To grounded flathead screws AC outlet 4 = (PN 307507-A) BS45061A Figure 2. - Page 5 (Figure 3) and attach a single wall-mount bracket (item 1) on each end of the unit, using eight screws (item 3). Top of switch Legend 1 = (PN 304406-A) 3 = 6-32 X 1/4 flathead screws BS45062A Figure 3. Attaching Brackets for a Single Wall-Mount Proceed to “Mounting the Unit to the...
- Page 6 (item 1) on each end of the unit, using only two screws (item 3) for each bracket. You will be instructed to install the remaining two screws to each bracket later when you attach the dual wall-mount brackets. Top of switch Legend 1 = (PN 304406-A) 3 = 6-32 X 1/4 flathead screws BS45063A Figure 4.
- Page 7 Set the first switch on top of the second switch (Figure 6) and align the brackets as shown. Connect the units using the four remaining screws (from Step 2). Legend 1 = (PN 304406-A) 2 = (PN 304959-A) 3 = 6-32 X 1/4 flathead screws B45065A Figure 6.
- Page 8 Part No. 304602-A Rev 00 Mounting the Unit to the Wall Caution: A single switch weighs 5.26 kg (11.60 lb) or more. Get someone to help you support the weight of the switch while you install the wall-mounting screws during the next step. To mount the switch on a wall: Position the switch assembly on the wall and mark the location of the wall-mount bracket slots.
- Page 9 Part No. 304602-A Rev 00 Locate the safety tray (item 4) in the installation kit. Note: If this product is to be installed in a locked (dedicated) equipment closet that has a concrete floor (or similar non-flammable construction) the safety tray is not required.
- Page 10 Part No. 304602-A Rev 00 Attach all required cables (as described in your switch user guide). Dress and support the cables using appropriate plastic cable clamps (Figure Dress cables away from fans and vents on both sides of the switch and do not allow the attached port cables to hang freely from the port connectors.
- Page 11 (item 1) on the existing wall-mounted switch (Figure 10). Set the 4 screws aside for use later. AC power strip (optional) Legend 1 = (PN 304406-A) 3 = 6-32 X 1/4 To grounded AC outlet flathead screws BS45069A Figure 10.
- Page 12 Part No. 304602-A Rev 00 Locate the two dual wall-mount brackets (item 2) in the installation kit. Set the add-on switch on a flat surface (Figure 11) and attach a dual wall-mount bracket (item 2) on each end of the unit using eight screws (item 3). Top of switch Legend 2 = (PN 304959-A)
- Page 13 Part No. 304602-A Rev 00 AC power strip (optional) Legend 1 = (PN 304406-A) 2 = (PN 304959-A) 3 = 6-32 X 1/4 To grounded flathead screws AC outlet BS45070A Figure 12. Adding a Second Unit (3 of 3)
