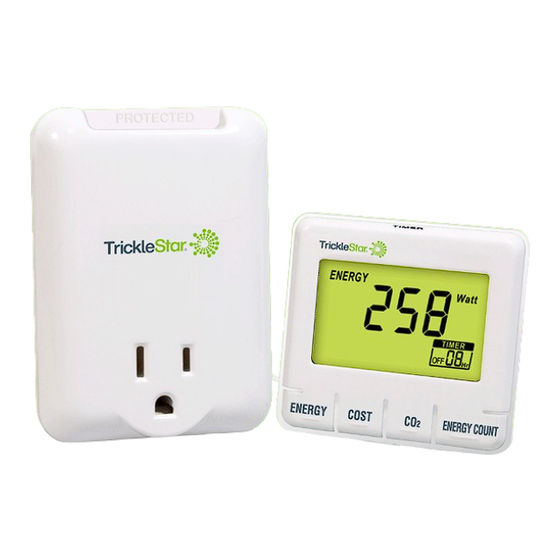

Summary of Contents for TrickleStar Plug-in Energy Monitor
- Page 1 Instructions Plug-in Energy Monitor The best way to save energy is to stop wasting it...
-
Page 2: Table Of Contents
Table Of Content Contents Contents Introduction Installation / Setup Electricity Rate Carbon Emission Value Modes Energy Mode Cost Mode CO² Mode Energy Count Mode Countdown Timer Mode Outlet Manual ON/OFF Switch Product Warranty Copyright and Disclaimer... -
Page 3: Introduction
Introduction The Energy Monitor helps you understand how much power your appliances use. Once you understand this you can take steps to reduce your energy consumption – after all, it’s difficult to manage what you can’t measure! The Energy Monitor also includes surge protection to ensure your appliance is protected against surges and voltage spikes whilst being measured... -
Page 4: Installation / Setup
Installation / Energy Monitor Configuration Setup Install Energy Monitor The Energy Monitor tracks power consumption of individual home appliances. 1. Plug in the Energy Monitor to a powered AC outlet 2. Plug in an appliance into the Energy Monitor Perform Energy Monitor Configuration Setup The Energy Monitor is preset with a default rate ($0.12/ KWH) and carbon emission value (0.49Kg/KWH). -
Page 5: Electricity Rate
Electricity Rate Press the COST button for 5 seconds to enter the electricity rate setup page. 1. The default rate is $0.12 per KWH. Press (COST) (ENERGY) to adjust the electricity rate. 2. Press ) to confirm and exit the setup page. -
Page 6: Carbon Emission Value
Carbon Emission Value Carbon dioxide is emitted when producing electricity by burning coal & fossil fuel. This is referred to as a CO footprint or carbon emission. The average carbon emission rate is 0.49Kg of carbon emission for every 1 KWH of electricity produced. This value can be changed depending upon your local electric utility and power source. -
Page 7: Modes
Modes There are 5 different modes: 1. Energy Mode 2. Cost Mode 3. CO Mode 4. Energy Count Mode 5. Countdown Timer Mode Energy Mode In Energy Mode, press ENERGY button to switch to different display of energy information. The Energy Monitor can display power consumption of an appliance in real time / day / month / year estimates. -
Page 8: Energy Mode
Energy Mode Real Time Energy Daily Estimated Power Monthly Estimated Yearly Estimated Power Consumption Consumption Power Consumption Consumption Displays real time energy Displays the daily energy Displays the monthly Displays the yearly energy consumption of the consumption (KWH) of energy consumption consumption (KWH) of appliance in Watts. -
Page 9: Cost Mode
Cost Mode In Cost Mode, press COST to switch between different energy cost displays. The Energy Monitor can display real time / day / month / year estimates. Yearly Cost Real Time Cost Daily Cost Monthly Cost Displays the estimated Displays the real time Displays the estimated Displays the estimated... -
Page 10: Co² Mode
Mode In CO mode, press CO to switch to display of carbon emission data. The Energy Monitor can display carbon emission of the plug-in appliance in real time / daily / monthly / yearly estimates modes. Emission Real Time CO Daily CO Emission Monthly CO... -
Page 11: Energy Count Mode
Energy Count Mode Energy Count offers an easy way to find out how much total energy consumption or energy cost each time you use an appliance. You can activate ENERGY While ENERGY COUNT During ENERGY COUNT Press the ENERGY COUNT function by pressing icon is flashing, turn mode, you can press MONITOR button to finish... -
Page 12: Countdown Timer Mode
Countdown Timer Mode Countdown Timer Mode supports a simple countdown timer function that allows you to set when the outlet is switched on or off within a 24 hour period. Configure 3. Press ) to 1. Press (COST) or The countdown timer Countdown Timer confirm exit the countdown (ENERGY) to select... -
Page 13: Outlet Manual On/Off Switch
Outlet Manual On/Off Switch The outlet can be switched on or off manually. 1. Press (TIMER) and (ENERGY) to switch outlet off or on. Note: the countdown timer will be disabled when the outlet is manually switched. -
Page 14: Product Warranty
Product Warranty TrickleStar warrants to the original purchaser of the TrickleStar Product for 1 year, that the Product shall be free of defects in design, assembly, material, or workmanship, and will repair or replace, at its option, any defective product free of charge. Email a warranty claim to us at warranty@tricklestar.com Be prepared to provide the following information: •... -
Page 15: Copyright And Disclaimer
Disclaimer: TrickleStar reserves the right to change specifications or designs described in this manual without notice and without obligation. Any typographical, clerical or other error or omission in this document or other documents or information issued by TrickleStar shall be subject to correction without any liability on the part of TrickleStar without notice. - Page 16 The best way to save energy is to stop wasting it...
