EAW JFX Suspension Kit Instructions

These instructions apply to JFX200, JFX260, JFX290, JFX560, and JFX590 loudspeakers.
DESCRIPTION
The JFX Suspension Kit consists of Fly Clip Rings to support the weight of the loudspeakers and Splay
Brackets that set the recomended enclosure splay angle for arraying.
WARNING: Only persons with the knowledge of proper hardware and safe rigging techniques should attempt to sus-
pend loudspeakers overhead. Failure to follow this warning may result in damage to the equipment, injury, or death.
JFX Series Suspension Kit Parts List:
EAW P/N Qty
0001386 2
See Table Below 2
104001 2
102134 4
105010 4
105011 4
0005915 1
FLY CLIP
Usage: The weight of each loudspeaker in an array must be supported by its own Fly Clip. The user must
provide the connection between each Fly Clip and structure capable of supporting the entire array.

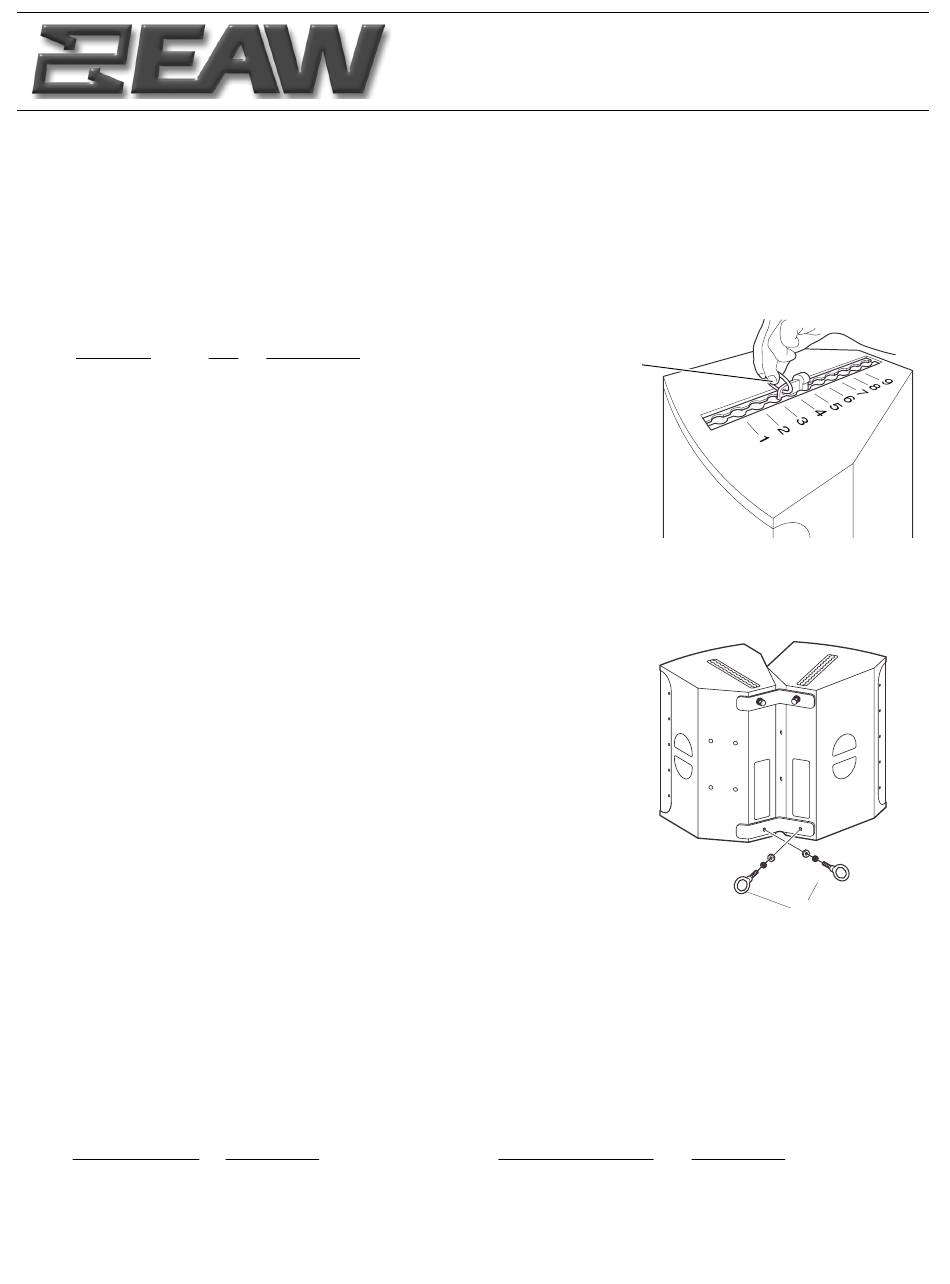

Installation: Insert each Fly Clip Ring into an enclosure mounting
track. Slide it along the track until locked in place. There are nine
possible track positions, each providing a different array down angle.
EYE BOLT
Usage: In some cases, a pull-back will be required to set a desired
array down angle. For this purpose, use the supplied load-rated Eye Bolts
in place of the lower Bracket Bolts. Use a bridle between the Eye Bolts.
SPLAY BRACKET
Usage: The supplied pair of Splay Brackets is used to position two
adjacent loudspeakers at the recommended splay angle. The brackets
are fastened to the threaded holes in the back of the enclosures.
WARNING: The Splay Brackets are not load-rated and cannot support the weight of the loudspeakers for either
mounting, suspension, or as an array "pull-back". The user must provide other means to support the full weight of
each loudspeaker when installed.
Bracket Kits: The only difference between Bracket Kits is the actual bracket itself. Each is designed for a
specific JFX model (see table below). Using the incorrect bracket will cause performance problems in the
acoustical overlap between the loudspeakers. Use the following list to ensure you have the correct Bracket Kit
for the JFX model loudspeaker you are using.
JFX Bracket P/N
0005355
0005354
0005356
0005352
Description
Clip/Fly/Ring ID 1.73
Bracket/Splay
Eye Bolt/Shoulder 3/8-16
Bolt/Hex head 3/8-16
Washer/Flat 3/8
Washer/Lock 3/8
Instructions/JFX Series Splay Kit
Description
Bracket/Splay/JFX260
Bracket/Splay/JX200 /JFX290
Bracket/Splay/JFX560
Bracket/Splay/JFX590
Instructions/JFX Series
Suspension Kit
0001386
Fly Clip
JFX Bracket Kit P/N
0005911
0005912
0005913
0005914
2X 104013
3/8-16 Eye Bolt
Description
Bracket Kit/JFX260
Bracket Kit/JFX200/JFX290
Bracket Kit/JFX560
Bracket Kit/JFX590
