Installation Instructions
Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read and follow all
instructions carefully before assembly, installation and use of this product. Please keep instructions for future reference.
Warranty
•
This luminaire (SKU# 240735, 240736) is covered by a 12 month warranty. The luminaire (SKU# 240737) is covered
by 5 year warranty. The warranty is from date of purchase, not the date of installation.
•
If the luminaire is not assembled and installed by a licensed electrician the warranty will be void.
•
Please retain proof of purchase and evidence of installation by a licensed electrician.
•
Warranty will be void if there is any damage due to improper usage or modification to the luminaire.
•
Failure to comply with the instructions in this manual may increase the risk of damage or injury and will void warranty.
Installation requirements
•
Must be assembled and installed by a licensed electrician.
•
All wiring and installation of the luminaire must adhere to latest local and national wiring rules.
Eg. AS/NZS 3000 Electrical installations.
•
Do not exceed the maximum wattage rating.
•
Select a suitable location for installation:
-
This luminaire is protected against water penetration to IP65 standards, which is against low pressure jets of
water from all practicable direction. This must be maintained during installation.
-
It is suitable for indoor or outdoor use.
-
The mounting point must support 2 times the weight of the luminaire.
•
Take care not to pull any electrical wires during unpacking as this may damage the connection.
•
Lay out all the components on a smooth surface and make sure there are no components missing before assembling.
If parts are missing, return the complete product to the place of purchase for inspection or replacement.
•
Check whether the luminaire has been damaged during transport. Do not operate/install any product which appears
damaged in any way. Return the complete product to the place of purchase for inspection, repair or replacement.
PIR sensor information
PIR (PASSIVE INFRA RED) SENSOR:
The luminaire has a PIR (Passive Infra Red) sensing device which continuously scans the operating zone and immediately
switches the light on when it detects movement in that area. Whenever movement is detected within the range of the
sensor, the light will switch on automatically to illuminate the area. While there is movement within the sensor range, the
light will remain on.
SENSOR LOCATION & INFORMATION:
To find a suitable location for installation, please take into consideration the following points:
•
The ideal mounting height for the luminaire is between 1.8m to 2.2m above the detection area. Fig 1.
•
The detection area is approximately 5 metres away at an angle of 90° wide. This may vary depending on the mounting
height and location.
•
The detection area may also alter at different temperatures. PIR sensors are more sensitive in cold weather than warm
weather.
•
The sensor has better sensitivity with movement across the detection area. Fig 2.
•
The sensor has reduced sensitivity with movement towards and away from the detection area. Fig 3.
1 | P a g e

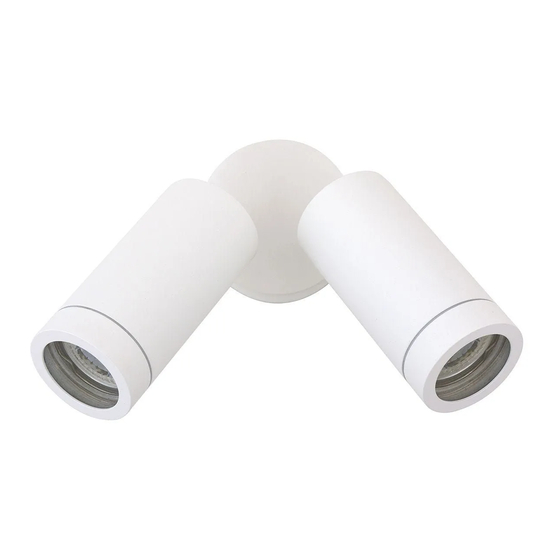

SENTINEL 2 LIGHTS SPOT LIGHT WITH PIR SENSOR
SKU# 240735, 240736, 240737
Rated Voltage 220-240V~ 50Hz
v 1 . 0 ( 1 0 / 2 0 1 8 )
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lucci Fresco SENTINEL 240735
Summary of Contents for Lucci Fresco SENTINEL 240735
- Page 1 Installation Instructions SENTINEL 2 LIGHTS SPOT LIGHT WITH PIR SENSOR SKU# 240735, 240736, 240737 Rated Voltage 220-240V~ 50Hz Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read and follow all instructions carefully before assembly, installation and use of this product. Please keep instructions for future reference. Warranty •...
- Page 2 Installation Instructions • If movement is made walking directly towards or away from the sensor and not across, the apparent detection range will be substantially reduced. • To avoid false triggering, the sensor should be directed away from potential heat sources, such as barbecues, air- conditioners, air vent etc.
- Page 3 Installation Instructions Mains Supply Wire Terminal block Earth – Yellow/Green Yellow/Green or Live – Brown or Red Live (L) Neutral – Blue or Black Neutral (N) NOTE: Adjust the sensor setting according to the below sensor switch setting section. 8. Install the luminaire back onto the mounting bracket by tightening the screws on the both sides with the provided allen key (Fig.8) 9.
- Page 4 Installation Instructions SENSOR TESTING: • Slide the LUX control switch S1 ( ) to the left position and the TIME control switch S3 (5”) to the right position. Turn the wall switch on and the light will turn on and remain on for about 15 seconds for the “warm-up” mode. After this initial “warm up”...
