VOILE Split Kit Instructions

Voilé Split Kit Instructions
Note:
Read all instructions completely before you begin. If you do not feel
confident to perform any of the steps contact Voile directly at
801-973-8622 or info@voile.com.
Snowboard should be a wood-core board. Foam-core boards
are not suitable for the touring binding.

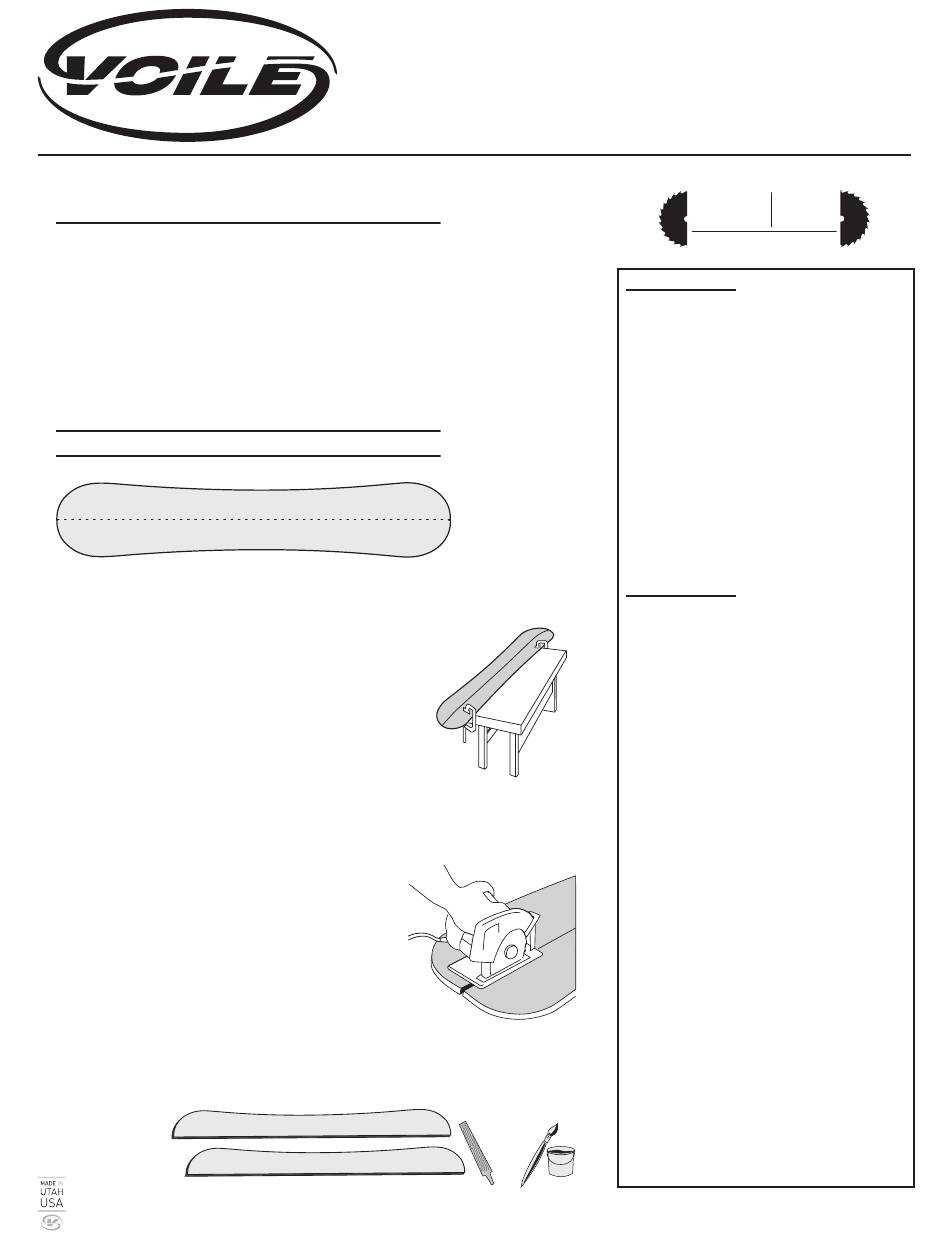

CUTTING THE SNOWBOARD
Mark center of board
A. On the base side, mark midpoint of board along
horizontal center of board with a marker. Place
dots every 2-3 inches.
B. Using a flexible straight edge, align marked dots
to draw a line at the exact center of the board.
C. Prepare to cut board.
D. Attach board with clamps off edge of work
bench. Cutting the board is similar to cutting a
piece of plywood.
Be sure to wear safety glasses, as boards are
composed of wood, paint, and laminates.
Watch your fingers, and follow all safety procedures.
E. Using a carbide blade circular saw, cut board in
half. Attach a shop vac to the saw to collect dust.
F. Using a flat file and sanding block, sand the
exposed edge of board. File petex edge at a 45°
bevel. Round off the corners of the tip and tail.
Seal cut edge well with varnish, varathane, or
enamel paint. Allow to dry completely before
mounting binding.
File, sand, bevel,
and seal edges
Clamp board
to work bench
voilésplitkit
diy splitboard hardware
DIY
DO IT
YOURSELF
SAW YOUR OLD BOARD KIT
Tool List
Circular Saw with Carbide Tip Blade
Drill Bits:
1/8", 3/16", 19/64"
3/4" Wood Paddle Bit
82º Countersink Bit
3/8" Nut Driver
#3 Phillips Head Screwdriver
C-clamps
Tape Measure
Edge File
Sanding Block
Center Punch
Ball Pein Hammer
Epoxy
Varnish, Varathane, or Enamel
Paint
Parts List
2 Tip Clips
2 Tip Clip Deflector Bushings
4 Tip Clip Rivets
2 Tip Clip Sticker Templates
4 Board Hooks
8 Board Hook Screws
8 Board Hook Nuts
4 Board Hook Bushings
1 Board Scraper
1 1/8" Hex Wrench Tool
2 Board Hook Templates
2 Plastic Pin Guides
2 Touring Brackets
6 M6 Round Bottom T-nuts - Touring Bracket
6 M6 x 12mm Screws - Touring Bracket
6 Petex Disks
2 Dual Climbing Heels
2 Climbing Heel Shims
2 55mm Climbing Wires
2 75mm Climbing Wires
4 M6 x 16mm Screws - Climbing Heel
4 M6 Round Bottom T-nuts - Climbing Heel
4 Petex Disks
1 Paper Jig for Touring Bracket & Climbing Heel
4 Pucks
2 Puck Templates
8 M6 Round Bottom T-nuts - Pucks
8 M6 x 12mm Truss-Head Screws - Pucks
8 Petex Disks
8 Rectangular Binding Mount T-nuts
2 Annodized Slider Tracks
2 Slider Pins w/ steel cable lanyard
1 Instructions
