INSTALLATION
INSTRUCTIONS
PARTS LIST
Steering wheel
2
TORX bolts
Steering wheel bolt
Information
TOOLS AND SUPPLIES REQUIRED
Phillips screwdriver
10 mm Open end wrench
10 mm Hex bit
Ratchet
T30 TORX bit
Torque wrench
Steering wheel puller
HDS
The following tool is available through the Acura Tool and
Equipment Program. On the iN, click on: Service >
Service Bay > Tool and Equipment Program, then enter
the number under "Search." Or, call 888-424-6857.
Plastic Trim Tool (T/N SILTRIMTL10)
© 2017 American Honda Motor Co., Inc. – All Rights Reserved.
Accessory
STEERING WHEEL
P/N 08U97-TX4-200

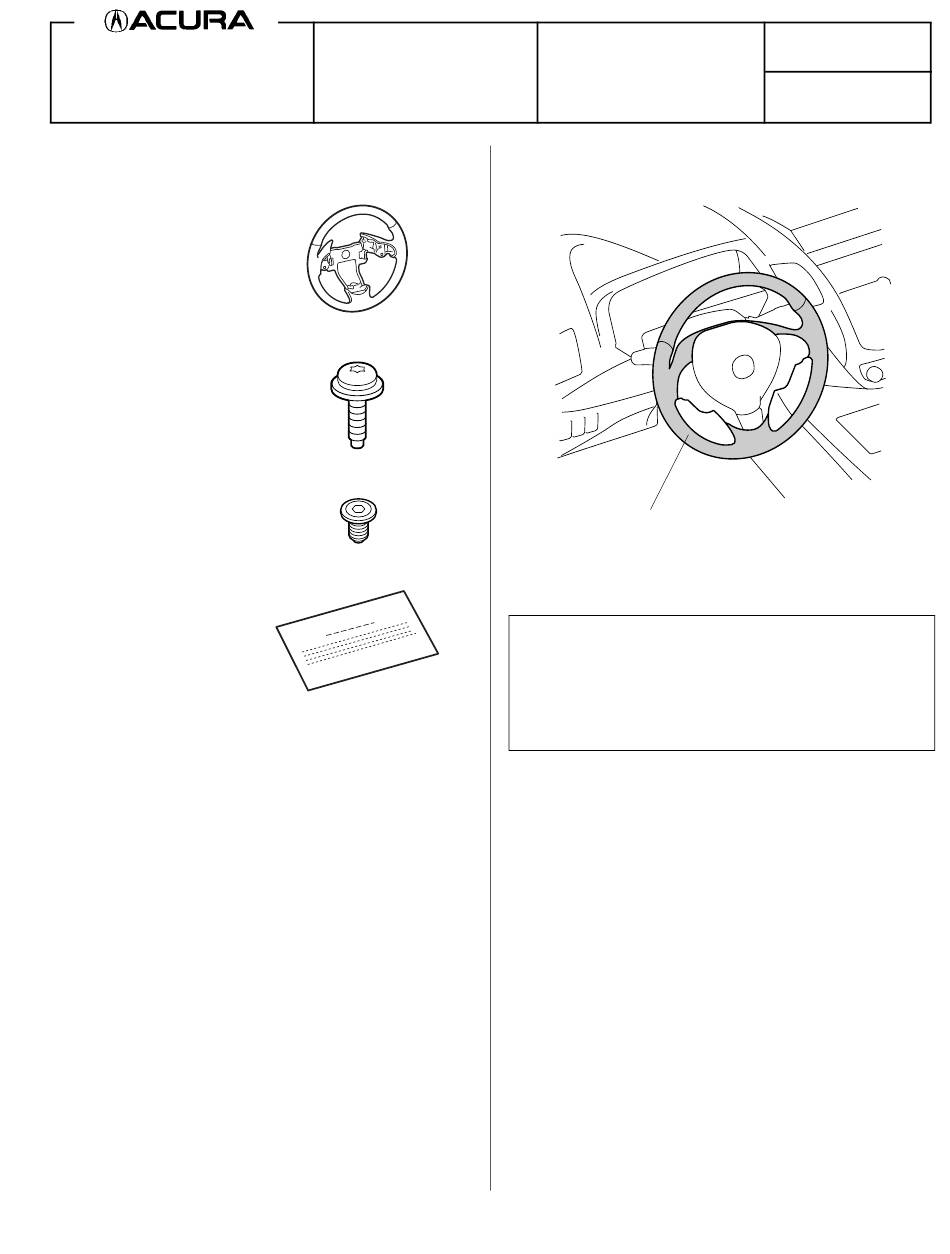

Illustration of the Steering Wheel in the Vehicle
INSTALLATION
Client Information: The information in this installation
instruction is intended for use only by skilled
technicians who have the proper tools, equipment, and
training to correctly and safely add equipment to your
vehicle. These procedures should not be attempted by
"do-it-yourselfers."
NOTE:
• Observe all safety notes and precautions in the service
manual in addition to those in this installation
instruction.
• Be careful not to damage the vehicle.
• After installing the steering wheel, you must align the
steering wheel spoke angle to the straight ahead
position by adjusting the front toe.
1.
2.
BII06384-30 (1705)
Application
2018 RDX
STEERING WHEEL
Turn the steering wheel so the front wheels are in the
straight-ahead position.
Disconnect the negative cable from the battery, and
wait at least 3 minutes before you start to install the
steering wheel.
Publications No.
VERSION 1
Issue Date
MAY 2017
QA00402AB
1 of 8
08U97-TX4-2000-90
Advertisement
Table of Contents
Summary of Contents for Acura P/N 08U97-TX4-200
- Page 1 The following tool is available through the Acura Tool and Equipment Program. On the iN, click on: Service > Turn the steering wheel so the front wheels are in the Service Bay >...
- Page 2 Remove the access panel from the underside of the Remove the airbag (two TORX bolts). Do not drop steering wheel. the removed airbag or hit it on anything. Place the removed airbag in a safe place with the pad surface (top) facing upward.
- Page 3 Unplug the vehicle connector from the cable reel, 10. Remove the steering wheel cover (four screws). and loosen the steering wheel bolt. STEERING WHEEL COVER STEERING WHEEL BOLT (Loosen.) STEERING WHEEL PULLER STEERING WHEEL PULLER STEERING BOLT WHEEL 4 SCREWS QA00405AB 11.
- Page 4 12. Remove the four screws from the left and right 14. Remove the cable guide assembly (including both paddle switches. paddle switches, the audio switch, and the cruise switch) from the steering wheel (four retaining tabs). RIGHT PAD- DLE SWITCH STEERING WHEEL (Discard.) LEFT PADDLE...
- Page 5 16. Install the two screws and ground terminal. 18. Install the lower cover to the new steering wheel with two screws. GROUND TERMINAL NEW STEERING WHEEL 2 SCREWS 2 SCREWS LOWER COVER (reused) (reused) QA00408AB NEW STEERING WHEEL QA00406AB 17. Install the left and right paddle switches to the new steering wheel with four screws.
- Page 6 21. Route the airbag connector through the opening in If the cable reel was moved, continue with step 20. If it was the new steering wheel, then install the steering not moved, go to step 21. wheel to the steering column shaft in the straight- 20.
- Page 7 23. Plug the vehicle connector into the cable reel. 25. Reconnect the horn connector and the airbag connector. To reconnect the airbag connector, hold 24. Install the airbag on the new steering wheel. the pawl-side connector, and push on the back of the •...
- Page 8 29. Connect the negative cable to the battery. 30. Connect the HDS, and clear the DTCs. 31. Inspect the following items. If the items do not operate properly, perform the troubleshooting in the service manual. • Turn the ignition switch to ON; the SRS indicator should come on for about 6 seconds and then go off.
