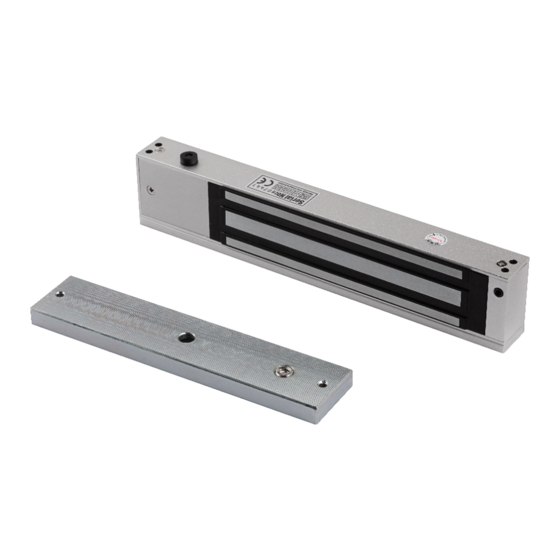

DS-K4H250/450/258 series magnetic lock
Title:
connect to DS-K2800 series Access Controller
Product:
Access Control Device
DS-K4H250/450/258 series magnetic lock connect to DS-
Preparation
Connecting magnetic lock to access controller is mainly applied to swiping card to open the door for
exiting. For magnetic lock and access controller in this document, please check the table below:
Note
This document is simply used to guide users how to wire correctly and ensure access controllers can
control locks.
The access controller model in this document is DS-K2804.
Part 1 is mainly for magnetic lock wiring, and Part 2 and Part 3 are mainly for the situation that users
could get the door status on iVMS-4200 Client.
Notice
1.
Please cut off power supply before wiring;
2.

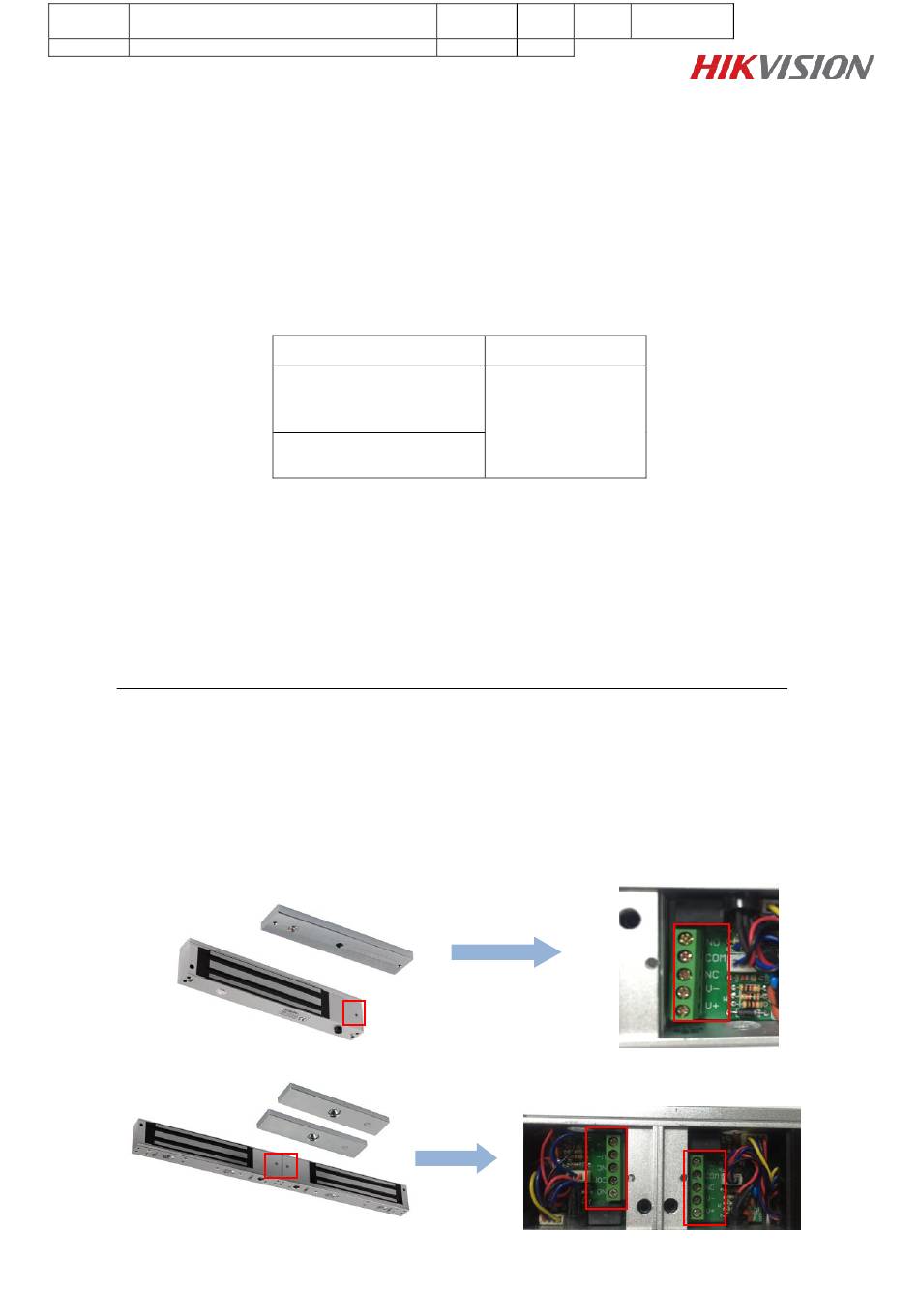

Please use a tool to screw magnetic lock screws in following picture, and remove the cover of
magnetic lock, find V+/V- and NO/NC & COM interfaces of magnetic lock in following picture;
Version:
K2800 series Access Controller
Magnetic Lock
DS-K4H250S
DS-K4H250D
DS-K4H450D
DS-K4H258S
DS-K4H258D
v1.0
Date:
Page:
1 of 9
Access Controller
DS-K2801
DS-K2802
DS-K2804
01/11/2018
Advertisement
Related Manuals for HIK VISION DS-K4H250 Series
Summary of Contents for HIK VISION DS-K4H250 Series
- Page 1 DS-K4H250/450/258 series magnetic lock 01/11/2018 Title: Version: v1.0 Date: connect to DS-K2800 series Access Controller Product: Access Control Device Page: 1 of 9 DS-K4H250/450/258 series magnetic lock connect to DS- K2800 series Access Controller Preparation Connecting magnetic lock to access controller is mainly applied to swiping card to open the door for exiting.
- Page 2 DS-K4H250/450/258 series magnetic lock 01/11/2018 Title: Version: v1.0 Date: connect to DS-K2800 series Access Controller Product: Access Control Device Page: 2 of 9 Interface Description Note V+/V- Power Supply DS-K4H258S/D series magnetic locks Door Magnetic NO/NC, COM don't have NO/NC and COM interfaces Singnal Output Correspondingly, there are lock and door magnetic interfaces in DS-K2800 series access controllers, as pictures show:...
- Page 3 DS-K4H250/450/258 series magnetic lock 01/11/2018 Title: Version: v1.0 Date: connect to DS-K2800 series Access Controller Product: Access Control Device Page: 3 of 9 Magnetic lock LED status: Normal(Close Door) Normal(Open Door) Abnormal DS-K4H250D & DS-K4H450D & DS-K4H258D Please connect as the following picture: Magnetic lock LED status: Normal(Close Door) Normal(Open Door)
- Page 4 DS-K4H250/450/258 series magnetic lock 01/11/2018 Title: Version: v1.0 Date: connect to DS-K2800 series Access Controller Product: Access Control Device Page: 4 of 9 Magnetic lock LED status: Normal(Close Door) Normal(Open Door) Abnormal DS-K4H250D & DS-K4H450D Please connect as the following picture: Magnetic lock LED status: Normal(Close Door) Normal(Open Door)
-
Page 5: Door Status
DS-K4H250/450/258 series magnetic lock 01/11/2018 Title: Version: v1.0 Date: connect to DS-K2800 series Access Controller Product: Access Control Device Page: 5 of 9 Step 3: Click Tool Device Arming Control, check your access controller arming status; The icon means device was armed by iVMS-4200 Client; Step 4: Enter Access Control ... - Page 6 DS-K4H250/450/258 series magnetic lock 01/11/2018 Title: Version: v1.0 Date: connect to DS-K2800 series Access Controller Product: Access Control Device Page: 6 of 9 Part 3: Lock+/Lock- & NO/COM Wiring Step 1: DS-K4H250S Please connect as the following picture: Magnetic lock LED status: Normal(Close Door) Normal(Open Door) Abnormal...
- Page 7 DS-K4H250/450/258 series magnetic lock 01/11/2018 Title: Version: v1.0 Date: connect to DS-K2800 series Access Controller Product: Access Control Device Page: 7 of 9 Magnetic lock LED status: Normal(Close Door) Normal(Open Door) Abnormal Step 2: Add access controller to iVMS-4200 Client; Step 3: Click Tool ...
- Page 8 DS-K4H250/450/258 series magnetic lock 01/11/2018 Title: Version: v1.0 Date: connect to DS-K2800 series Access Controller Product: Access Control Device Page: 8 of 9 Step 5: Enter Status Monitor Door Status interface, open the door, check door status on iVMS-4200 Client and the magnetic lock LED status;...
- Page 9 DS-K4H250/450/258 series magnetic lock 01/11/2018 Title: Version: v1.0 Date: connect to DS-K2800 series Access Controller Product: Access Control Device Page: 9 of 9 First Choice for Security Professionals HIKVISION Technical Support...
