Stegmaier-Haupt GmbH Industrieelektronik

Manual

Transistor Servo Drive

TV 6.2

for DC Motors

Version

0506

Table of Contents

Need help?

Do you have a question about the TV 6.2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Stegmaier-Haupt TV 6.2

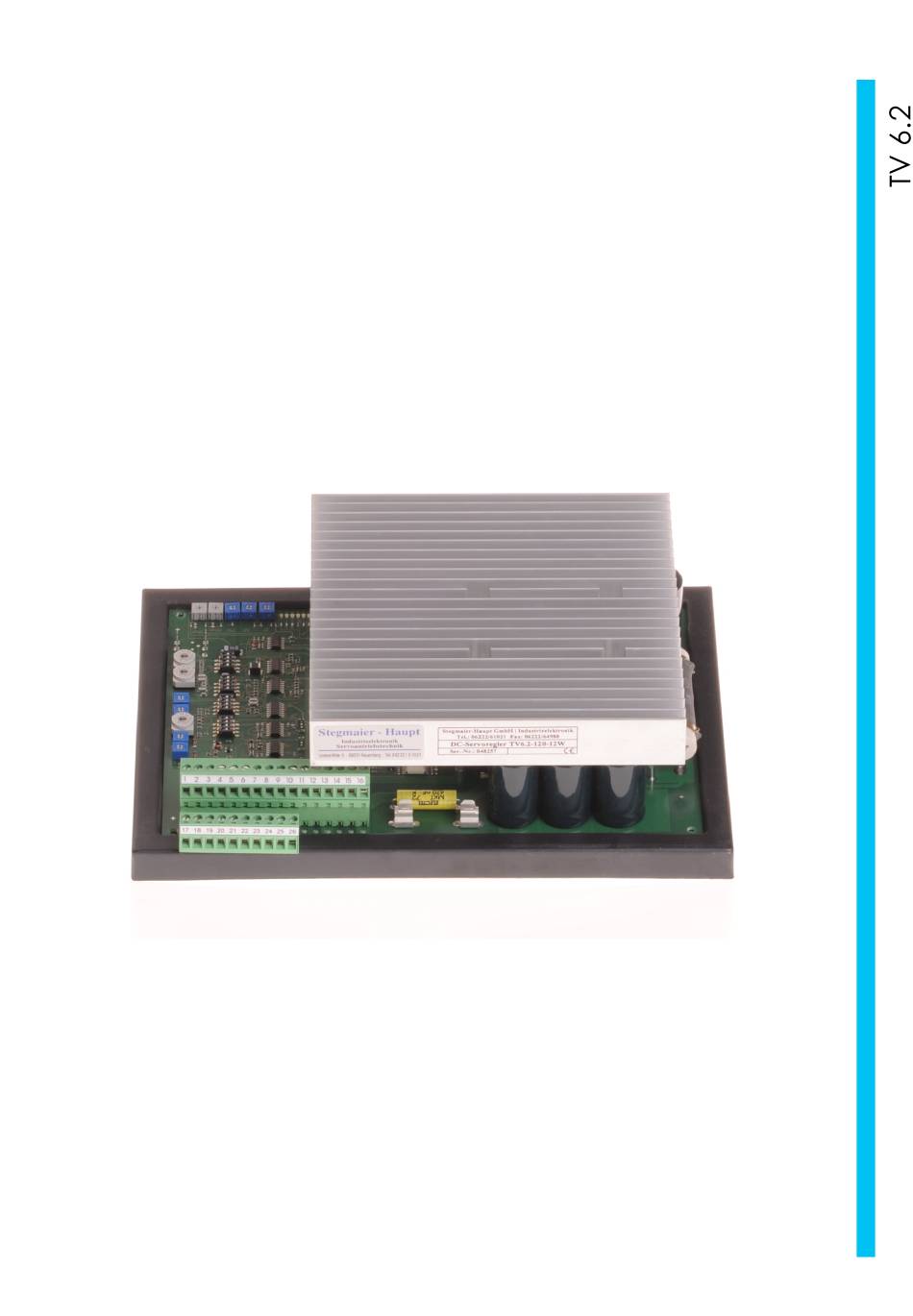

Page 1 Stegmaier-Haupt GmbH Industrieelektronik ____________________________________________________________________________________________ Manual Transistor Servo Drive TV 6.2 for DC Motors Stegmaier-Haupt GmbH Industrieelektronik-Servoantriebstechnik Untere Röte 5 D-69231 Rauenberg Tel.: 06222-61021 Fax: 06222-64988 Email: info@stegmaier-haupt.de Version Http: // www.stegmaier-haupt.de 0506 _____________________________________________________________________________________...
Page 2: Table Of Contents
Transistor Servo-Drive TV 6.2 Contents Titel Page 1.Basic Information Safety advice Standards and Guidelines General information Technical Data Features Applications 2. Electrical installation Adjustments LED displays Signal test points Terminal connections and connectors Test point jack Option switches 3. Mech. installation...
Page 3: Basic Information
1 Basic Information Electronic Equipment is not fault proof. This fact should be borne in mind for all possible operating conditions. Attention HIGH VOLTAGE! Before installation or commissioning begins, this manual must be thoroughly read and understood by the technical staff involved. If any uncertainty arises, the Manufacturer or Dealer should be contacted.
Page 4: General Information
Transistor Servo-Drive TV 6.2 General information The transistor servo-drives are built according to the VDE regulations as switch cabinet mountings or 6HE plug-in devices. The plug-in devices fit into a standard rack according to the standard DIN 41494 and can be connected by means of a rear panel or a 32-pin terminal strip.
Page 5: Technical Data
1 Basic Information Technical data TV6.2 Power connection only via an isolating transformer No galvanic isolation between the power section and the control electronics. Power connection TV6.2 30 to 120V~, 40 to 160V= Output voltage TV6.2 24 to 120V= clock-pulse controlled Cooling self Device TV6.2...
Page 6: Applications
Transistor Servo-Drive TV 6.2 Application: Transistor servo-drive for dc motors with 4Q operation. To be used for tacho control, armature voltage control with IxR, torque control, or combined speed/torque control. Connection by using an isolating transformer Max. clock frequency across the motor circuit 18 kHz...
Page 7 1 Basic Information Electrical installation Function Component Front panel internal Pot. P4 (n binary switch S9 Tacho actual value adjustment switch S3:K3 Tachometer smoothing switch S2:K2 and S6:K1 Tachometer watchdog Pot. P4 (n switch S6:K4 Actual value adjustment - armature Pot.
Page 8: Led Displays
Transistor Servo-Drive TV 6.2 LED displays Function LED no. Control electronics LED 19x drive ready BTB LED H command value enable LED G speed controller output + LED F speed controller output - LED E stationary LED D blocked LED C...
Page 9: Enable
2 Electrical Installation Connection terminals X1, X2, and connectors X1 Function Terminal no. Connector no. + 15V (for enable) X1: 1 X1: 32c Enable input (+10V to +30V) X1: 2 X1: 30c + 10V (for command value) X1: 3 X1: 28c Command value input (signal) X1: 4 X1: 26c...
Page 10: Option Switches
Transistor Servo-Drive TV 6.2 Option switches - Adjustments Switches: S1, S2, S3, S6 Contacts: :K1, :K2, :K3, :K4 Switch functions Position OFF (open) Switch S6:Kx Position ON (closed) Tacho watchdog active Tacho watchdog off External current limiting 1 Internal current limiting 1...
Page 11 3 Mechanical Installation Power section signals +15V -15V brake short-circuit over-voltage Control electronics signals drive ready BTB enable current command value + current command value - stationary motor blocked tacho fault temperature Adjustment potentiometer = continuous current = amplification = compensation for armature voltage control = speed adjustment Offset = zero point adjustment...
Page 12 Transistor Servo-Drive TV 6.2...
Page 13 3 Mechanical Installation TV6.2...
Page 14 Transistor Servo-Drive TV 6.2...
Page 15 3 Mechanical Installation TV6.2...
Page 16: Dimension
Transistor Servo-Drive TV 6.2 Axis module Axis module Axis module Dimensions 6HE [mm] Plug-in device 427 (19") Mounting depth 270 mm For front mounting the lateral angle is at the front, for wall mounting it is at the back.
Page 17 4 Adjustments Anschluss Kompaktgerät Anschluss Mehrachskombination TV6.2...
Page 18: Power Connection
Transistor Servo-Drive TV6.2 Adjustments - Power connection Note: The order of the connections to the connector numbers or screw terminals is ob- ligatory. All further advices are non-obligatory. The input and output conductors may be altered or supplemented in accor- dance with the electrical standards.
Page 19 4 Adjustments Adjustments Ballast circuit ballast resistor (continuous power = 15W) is installed. It is activated at 200V dc. The ballast circuitry has an over-voltage watchdog. In case of over-voltage, the device is internally blocked, a short-circuit is signalled, and the ‘ready’ contact (BTB) is opened.
Page 20 Transistor Servo-Drive TV6.2 The transistor power sections have an internal watchdog and protect themsel - Under fault-free conditions the BTB-relay will be controlled. The BTB-relay will switch off in case of the following faults: auxiliary voltage supply: +15V, -15V power section: fuse failure, buffer circuitry voltage too high permanent short-circuit or circuit to earth...
Page 21 4 Adjustments Adjustments - Enable The control advise is provided as general information and it is not obligatory. The local regulations and the connection and operating instructions must be adhered to. Connectors X1: 2ac to X1: 32c Terminals X1: 1 to X1:16 X2 : 17 to X2 : 26 When connecting X1:32c (X1:1) to X1:30c (X1:2) or applying a voltage superior to +10V, the command value and the speed controller (RVU) will be enabled...
Page 22 Transistor Servo-Drive TV6.2 Adjustments - Command value The command value input X1:26c (X1:4) is dimensioned for a voltage command value of ±10V . The command value is generated by using the internal voltage supplies of +10V across X1:28c (X1:3) and -10V across X1:24c (X1:5) or by applying a com- mand value voltage from a PLC or CNC.
Page 23: Command Value
4 Adjustments Command value A correction value of max. ±10V can be applied across the connector X1:32a (X1:17). The input resistance is 100 kΩ . If the polarity is the same as that of X1:4 (command value), the correction vol- tage will be added.
Page 24: Current Limiting
Transistor Servo-Drive TV6.2 The current limiting can be adjusted internally by means of the po- tentiometers P6 (I ) and P5 (I ) from 0 and 200% type current (rated cur - max1 max 2 rent). In this case the switches S6:K2 and S6:K3 must be closed (ON). For external current limiting adjustments or control the switches S6:K2 and S6:K3 must be open (OFF).
Page 25: Actual Value
4 Adjustments The actual value is connected as tacho signal or as armature voltage signal with an internal bridge (switch S6:K4 ON). The quality of the actual value signal determines the control range and the control precision. The best results can be achieved through the use of dc tacho generators.
Page 26 Transistor Servo-Drive TV6.2 In case there is no fault signal from the internal power section watchdogs, the signal contact BTB (drive ready) is closed. The contact signals to the PLC or CNC that the motor controller is ready for operation. The outputs have regenerating fuses.
Page 27 4 Adjustments An ammeter for the armature current can be connected to the terminals X1:26a (X2:20) and X1:18a (X2:24). The output voltage is ±5V for ±200% type current. The output resistance is 1kΩ . The command value input can be switched as a differential input or as an input amplifier with reference to point zero, depending on how the switch S2:K2 is switched.
Page 28 Transistor Servo-Drive TV6.2 he proportional and integration components of the speed controller are adjus- ted by means of two 16-position binary switches and the amplification potentio- meter P3 (Xp) . When replacing the control electronics the adjusted values can be taken over. Adjustment P-component by means of the binary switch S4 Switch S4 Position...
Page 29: Armature Voltage Control
4 Adjustments Tacho control In order to control the speed by means of the tacho actual value, the switch S6:K4 must be open. The polarity of the tacho signal at X1: 22c (X1:6) and the command value input (X1: 6) must be opposite. The rough adjustment of the actual value is achie- ved by means of the binary switch S9 .
Page 30 Transistor Servo-Drive TV6.2 Adjustments Control values The adjusted control values can be measured at the connector X4:3 by means of an oscilloscope. The reference command value at the connector X4:1 is transferred to channel 1 and the control output at X4:3 to channel 2 of the oscil- loscope.
Page 31: Peak Current
4 Adjustments The effect of the actual value differentiation can be measured at the connec- tor no. X4:7 by means of an oscilloscope. When the motor is connected and enabled a command value jump of 50% is set and the actual value response is examined. Example: high amplification low amplification The switches S6:K2 and S2:K3 must be closed.
Page 32: Commutation Limit
Transistor Servo-Drive TV6.2 The commutation limit must be checked when using a dc motor with a permanent excitation (no field) and iron core. The motor data sheets show the limiting curve of the permissible motor current dependent on the speed. The maximum torque of the motors, which corresponds to the maximum current, is 3 to 6 times the value of the continuous torque.
Page 33: Commissioning
5 Commissioning Example: Peak current of the controller = 20A 1. Connection Instructions Connect the device according to this manual (TV6.2) Note: Supply voltage for TV6.2 max. 110V~, 160 V= 2. Commissioning Basic connections: mains, tacho or armature voltage feedback, enable, com- mand value 2.1 Enable switch: open/enable voltage 0V Command value voltage 0V, command value additional input: bridged to...
Page 34 Transistor Servo-Drive TV6.2 2.3 Close the enable switch or apply an enable voltage >10V TV6: The LED 19-G (enable) must also light. The drive must be stationary or turn very slowly (offset). If the drive accelerates in the correct direction, the polarity of the tacho volta- ge resp.
Page 35: Protocol
6 Protocol Customer ..... . . Machine No... . Device ......Serial No .
Page 36 Transistor Servo-Drive TV6.2 Power section settings Measured data Armature voltage max. [V=] Armature current peak [A=] Armature current continuous [A=] Tacho voltage max. [V=] Acceleration [V/ms] Integrator [V/ms] Motor data Type plate specifications Manufacturer ..........Type .
Page 37: Guarantee
7 Guarantee We guarantee that the device is free from material and production defects. Test results are recorded and archived with the serial number. The guarantee time begins from the time the device is shipped, and lasts one year. WE undertakes no guarantee for devices which have been modified for special applications.
Page 38 Transistor Servo-Drive TV6.2...
Page 39: Circuit Diagrams
8 Circuit Diagrams TV6.2...
Page 40 Transistor Servo-Drive TV6.2...
Page 41 8 Circuit Diagrams TV6.2...
Page 42 Transistor Servo-Drive TV6.2 Stegmaier-Haupt GmbH * Tel.: 06222-61021 * Fax: 06222 64988 * Email: info@stegmaier-haupt.de...
