Summary of Contents for Rosie Connectivity Solutions Scan

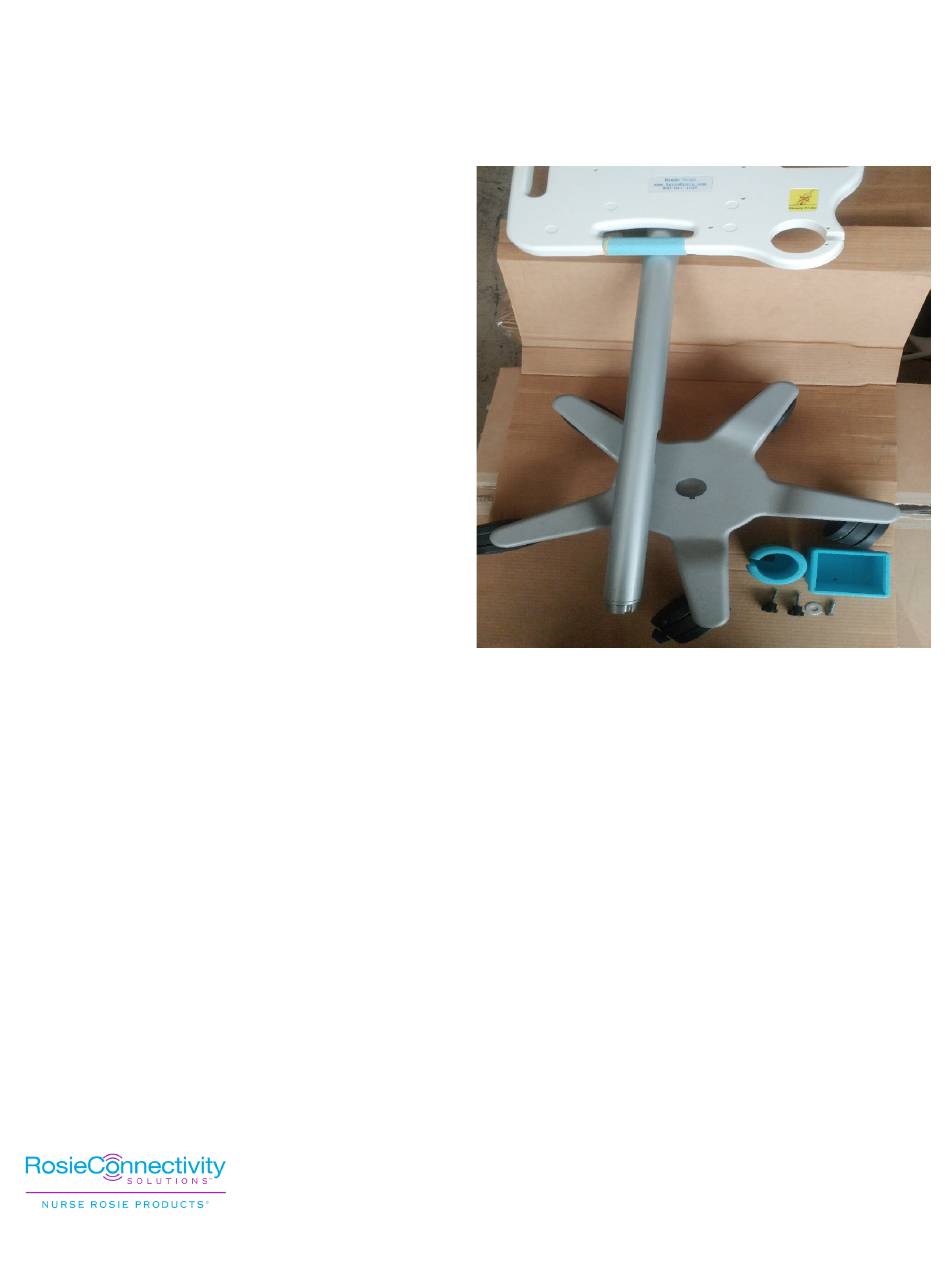

- Page 1 Rosie® Scan Bladder Scanner Assembly Guide 1. Gather parts needed for assembly. Rosie Technical Support 1-800-841-1109 | support@nurserosie.com Page 1...
- Page 2 Rosie® Scan Bladder Scanner Assembly Guide 2. Connect pole to base: Lay the pole horizonally, turn base on its side and insert pole into opening. While holding the base in place, insert the bolt with washer in the bolt hole from the bottom of the base, and tighten the bolt.
- Page 3 Rosie® Scan Bladder Scanner Assembly Guide 3. Stand pole upright: Tighten the bolt into the pole until the pole is pulled into the base. Now stand the pole upright. Rosie Technical Support 1-800-841-1109 | support@nurserosie.com Page 3...
- Page 4 Rosie® Scan Bladder Scanner Assembly Guide 4. Tighten tray to mount: Tilt the Tray to a flat position. Turn the black lever until tight If the tray is not tight enough, loosen the black lever, and use a half inch wrench on the opposite side of the mount.
- Page 5 Rosie® Scan Bladder Scanner Assembly Guide Your assembled RosieScan Bladder Scanner should look like the one shown. If you need additional assistance, please contact Rosie Technical Support at 1-800-841-1109. Rosie Technical Support 1-800-841-1109 | support@nurserosie.com Page 5...
