KB ELECTROMETRY SibER 64?15 Instruction Manual

Multi-electrode electrical resistivit & induced polarization imaging instruments

Advertisement

Quick Links

USER MANUAL
"KB ELECTROMETRY"
MULTI-ELECTRODE ELECTRICAL RESISTIVITY & INDUCED
POLARIZATION IMAGING INSTRUMENTS
MODEL: SibER 64К15
СК.64К15.01РЭ
The document was developed in accordance with the requirements of GOST 2.206 and was put into effect 27.11.2019

Advertisement

loading
Need help?

Need help?

Do you have a question about the SibER 64?15 and is the answer not in the manual?

Questions and answers

Summary of Contents for KB ELECTROMETRY SibER 64?15

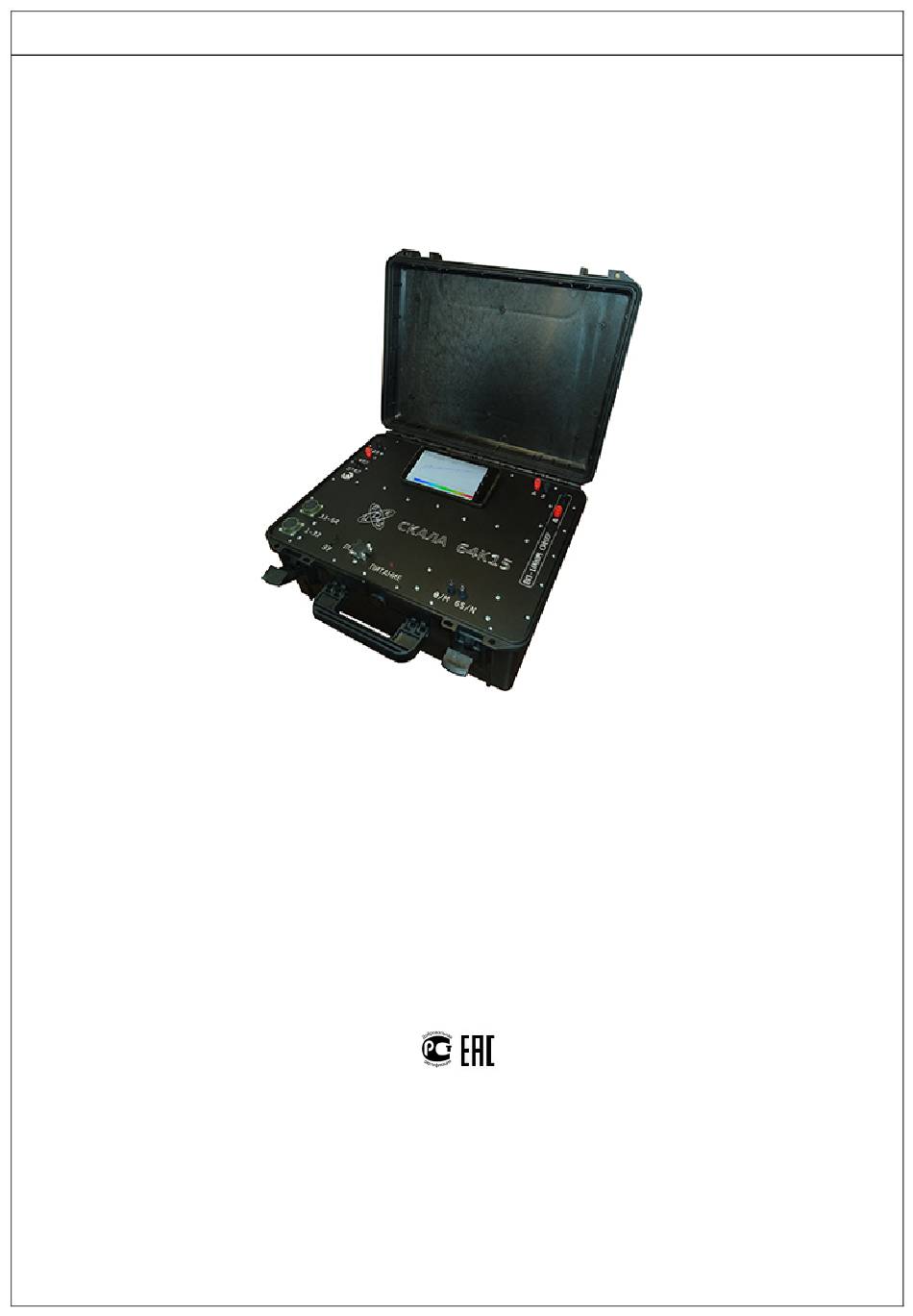

  • Page 1 USER MANUAL “KB ELECTROMETRY” MULTI-ELECTRODE ELECTRICAL RESISTIVITY & INDUCED POLARIZATION IMAGING INSTRUMENTS MODEL: SibER 64К15 СК.64К15.01РЭ The document was developed in accordance with the requirements of GOST 2.206 and was put into effect 27.11.2019...
  • Page 2 INSTRUCTION MANUAL 1. Description and work 1.1 Purpose and scope The equipment is designed to perform ground (including profile, areal, borehole) electrical exploration by methods of resistance and induced polarization in modifications of electrical tomography and vertical electrical sensing. 1.2 Instrument panel 1.
  • Page 3 INSTRUCTION MANUAL 7. Power indicator. 8. Terminals for connection of remote electrodes 0, 65 and measuring electrodes M, N. 9. Source output terminals for diagnostics and connection of supply electrodes A, B. 10. Terminals for connecting an external source. 1.3 Specifications General Electrodes: 2 x 32 + 2 remote External power supply: 12V...
  • Page 4 INSTRUCTION MANUAL Resolution: 1 µv Industrial frequency interference suppression: at least 90 dB Overvoltage protection: up to 1kV Power module Protection against reverse polarity at the entrance: Yes Supply voltage range: 10.5 ... 15 V Indication of lack of power: sound, led The document was developed in accordance with the requirements of GOST 2.206 and was put into effect 27.11.2019...
  • Page 5 INSTRUCTION MANUAL 1.4 Flow chart - Control and communication Module. ��SD - MicroSD memory Card. Wi-Fi - is a wireless communication Module. - Wired communication Module. - Data Bus. - Power Lines. - Charger connection Connector. - Power management Module. - POWER Led on the dashboard.
  • Page 6 INSTRUCTION MANUAL - Circuit breaker on the instrument panel. - Toggle switch on the dashboard. - The power supply terminals on the dashboard. 12 V - External rechargeable battery. - is a multi-channel meter. RX1...RX13 - Measure the input voltage. RX14 - Output voltage Meter.
  • Page 7 INSTRUCTION MANUAL 3. The wireless communication module is designed to connect and exchange data with an external control panel and collect data via a wireless Wi-Fi network. 4. The wired communication module is designed to connect and exchange data with an external control panel and collect data via a wired Ethernet network.
  • Page 8 INSTRUCTION MANUAL 14. The multichannel meter registers instantaneous values of input voltage, output voltage of the source, output current of the source (through the current shunt). 15. The source controller switches the input of the active source and controls the operation of the external source.
  • Page 9 INSTRUCTION MANUAL 1. Do not touch the dashboard connectors and electrodes during operation to ensure normal operation and because of the risk of electric shock. 2. Do not operate the equipment, if possible to allow moisture (splash, rain, snow) and dirt into the dashboard and connectors, as well as prolonged exposure to direct sunlight on the dashboard due to the risk of overheating of the equipment.
  • Page 10 INSTRUCTION MANUAL 2. Intended use 2.1 power Supply 1. As power cables it is allowed to use insulated copper conductors with a cross section of at least 6 mm2 and a length of not more than 1 m. 2. The terminals of the equipment, power cables and the external battery should be kept clean and operated only with as much contact as possible.
  • Page 11 INSTRUCTION MANUAL 4. If necessary, connect the equipment with an external remote control and data acquisition by cable. 5. Observe the polarity and connect the power cables to the terminals of the equipment. 6. Observe the polarity and connect the power cables to the battery terminals. 7.
  • Page 12 INSTRUCTION MANUAL The backup battery requires regular charging regardless of the frequency of use of the equipment. It is recommended to fully charge the battery before each use. For preventive purposes, it is recommended to fully charge the battery at least once a month. How to replace the backup battery: 1.
