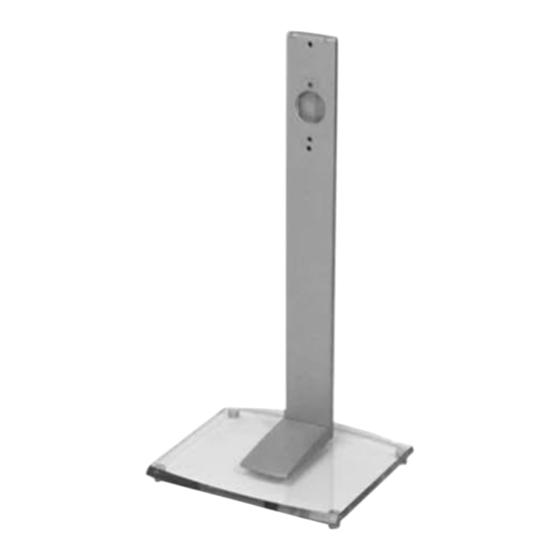

High-performance speaker stands are
essential in any high-quality audio/home
theater system. Elegant and solidly
constructed PREMIER
LS-Series
stands position speakers at ear level to
ensure the best performance possible.
IMPORTANT! Stand must be wired with speaker cable before assembling (see over)
Mounting Cinema
330
Assemble base as shown using
stainless steel washers with hex screws
1. Attach bracket
hanging screws
(included with
speaker) to back
of speaker so they
protrude about
1/8 inch (3 mm).
2. Attach rubber
bumper pads
(included with
speaker) to bottom
rear of speaker.
3. Aligning screws
to bracket holes,
mount speaker on
bracket with an
in-and-down motion.
4. If speaker mounting
is loose, remove
speaker from stand,
tighten hanging
screws slightly and
remount. Repeat
until mounting is firm.
Parts List (pair)
2 Extruded Aluminum Posts
with Mounting Brackets attached
2 Plastic End Caps

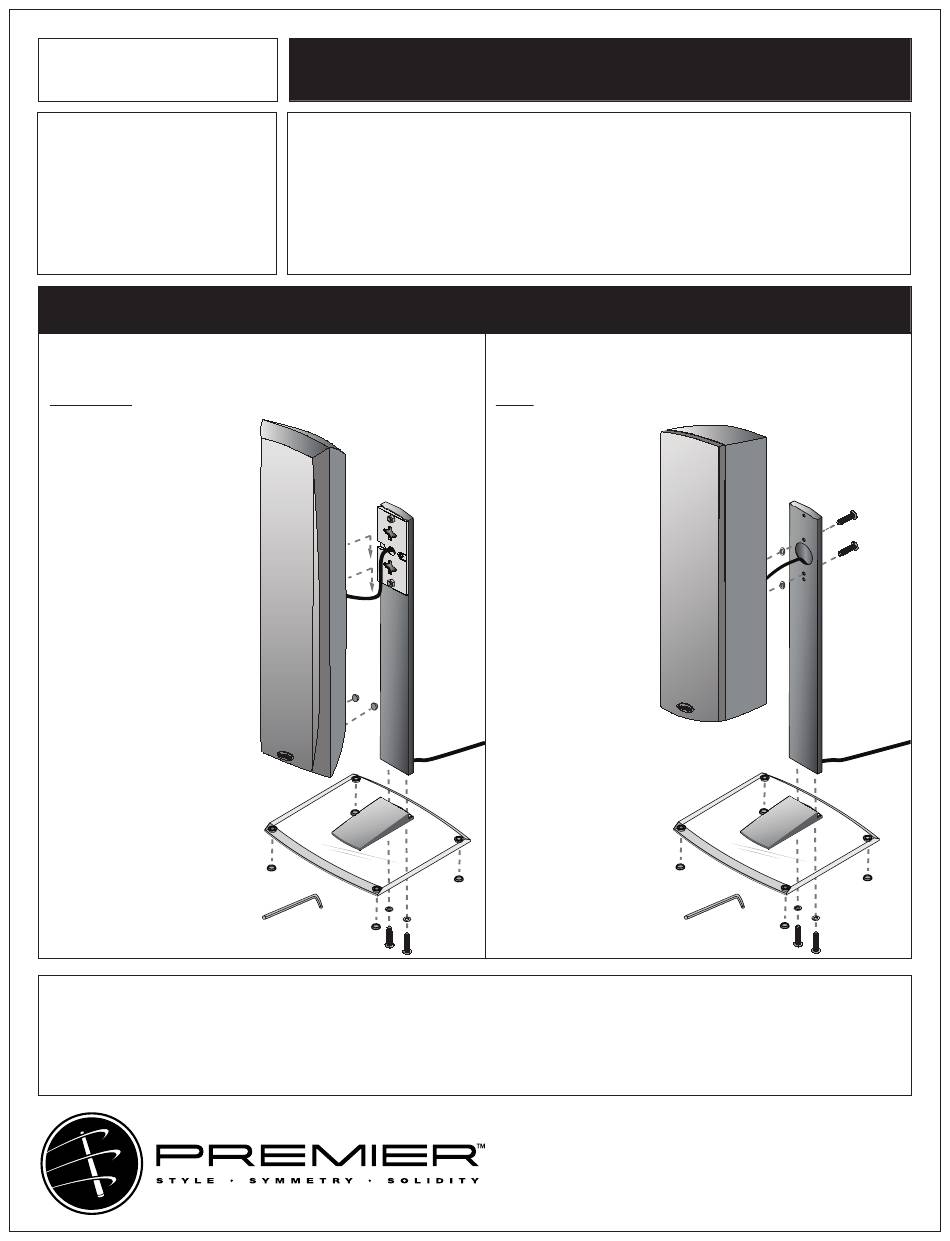

ASSEMBLY INSTRUCTIONS

F
:
EATURES
• Designed for use on a tabletop
• Extruded aluminum post
• Heavy tempered glass base provides increased
stability and helps minimize resonances
• Openings in center and bottom of post allow for
hidden speaker cable
• Self-adhesive rubber feet
2 Tempered Glass Bases
4 Hex Screws
8 Self-Adhesive Rubber Feet
Paradigm Electronics Inc., and its representatives,
agents or retailers assume no responsibility or liability
for any damage or injury arising from the use of these
speaker stands.
Mounting Cinema
220
Assemble base as shown using
plastic washers with hex screws
1. Insert speaker
hanging screws
(included with
speaker) through
holes in back of
post, as shown.
Attach stainless
steel washers.
2. Insert screws into
60-mm holes on
back of speaker
and screw in until
mounting is firm.
4 Stainless Steel Washers
4 Plastic Washers
1 Hex Key
