Summary of Contents for Lamtec GKI300

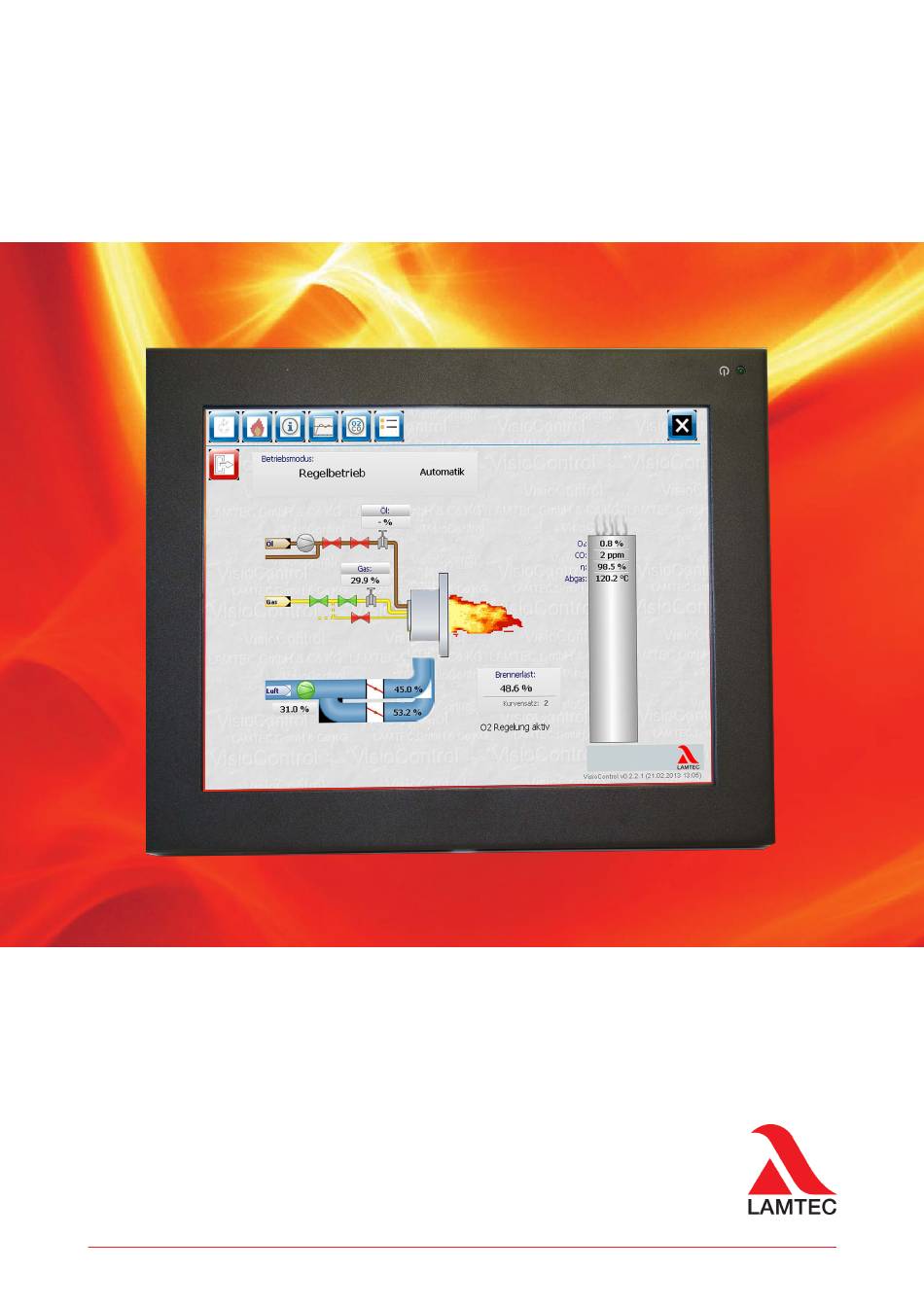

- Page 1 Operating Instructions Graphic Customer Interface GKI300 Sensors and Systems for Combustion Engineering www.lamtec.de...
-
Page 3: Table Of Contents
How to Shut Down GKI300 Properly ........ - Page 4 Table of Contents 10.2 Visualisation System has Crashed......... 36 10.3 Visualisation System Contains no Plant Values.
-
Page 5: Important Information About The Manual
Important Information about the Manual Important Information about the Manual Validity of these Instructions The manual is valid for the GKI300 graphic customer interface. The GKI300 graphic customer interface is used for the data visualisation of combustion plants. -
Page 6: General Safety Instructions
LAMTEC GmbH & Co. KG shall not be responsible for damages which have been caused by the non-compliance with the above-mentioned instructions. The warranty and liability condi- tions of LAMTEC GmbH & Co KG conditions of sale and delivery shall not be extended due to the above information. -
Page 7: Classification Of The Safety Instructions And Warnings
General Safety Instructions Classification of the Safety Instructions and Warnings The following symbols are used in this document to draw the user's attention to important safe- ty information. They are located at points where the information is required. It is essential that the safety information is observed and followed, and that applies particularly to the warnings. -
Page 8: Product Description
BT300 and FMS burner control systems. The configuration of the burner control system is read at the start of the GKI300 and the plant is displayed accordingly. The GKI300 is connected to the plant by a transposed line with an Ethernet plug (RJ45) and a LAMTEC data module. -
Page 9: How To Shut Down Gki300 Properly
Fig. 3-2 shutdown screen After the shut down button (1) is pressed, the GKI300 is shut down properly. NOTICE In case of an improper shut down (e.g., due to an interruption of the voltage supply), it may occur that the GKI300 no longer starts up properly. -
Page 10: Technical Data
Product Description Technical Data Fig. 3-3 Views GKI300 Fig. 3-4 Dimensions GKI300... - Page 11 Product Description Display (only valid for the 10" standard version of the GKI) LCD size 10,4" Max. resolution 1024 x 768 pixels Brightness 250 cd/m Contrast 600:1 LCD colours 262K Pixel pitch 0.0675 (H) x 0.2025 (V) mm Viewing angle 150°/130°...
-
Page 12: Equipment
Product Description Equipment Fig. 3-5 Scope of supply of GKI300 GKI300 Power supply unit Mains connecting cable Driver CD for WinXP, Win7, Win8, Linux, 32Bit/64Bit W-LAN antenna Touch pen Mounting clamps for assembling in control cabinet (optional) -
Page 13: Mounting And Electrical Connection
Mounting and Electrical Connection Assembly Setup and mounting of GKI300 The GKI300 is suited for panel installation and mounting on suitable holders, such as VESA 100. NOTICE IP40 type of protection is guaranteed only in case of panel installation. Mounting on holders is permitted only in dry rooms. - Page 14 Fig. 4-2 Cutout size in case of panel installation: Attachment of the GKI to the front of the switch cabinet using the 2 fastening clamps 1. Positioning of the GKI300 in the plate cut out created previously according to dimensional specifications.
-
Page 15: Mounting To A Vesa Holder
The Gerät can be mounted to a swivel arm or pedestal using a VESA 100 (Video Electronics Standards Association) holder. Fig. 4-3 Mounting of the GKI300 to a VESA 100 holder 4 x screw holes for the fastening of the VESA 100 holder Example of a VESA 100 holder with pedestal (not included in the scope of supply) Using 4 screws M3, the VESA 100 holder is mounting to the back of the Gerät. -
Page 16: Electrical Connections
Mounting and Electrical Connection Electrical Connections Electrical connection of the GKI300 The bottom of the device contains all required connections as standardised plug connections. NOTICE Damage to electronic modules due to electrostatic discharge During all work, electrostatic discharges must be prevented using suitable measures. -
Page 17: Connection To Fms
Connection to FMS Fig. 4-5 Electrical connection for FMS NOTICE For a direct connection between the data module and GKI300, a cross-over Ethernet cable type 663R0105 is used. Alternatively, a connection through an intermediately switched hub or switch is possible. -
Page 18: Connection To Etamatic
Connection to ETAMATIC Fig. 4-6 Electrical connection between ETAMATIC/ETAMATIC OEM NOTICE For a direct connection between the data module and GKI300, a cross-over Ethernet cable type 663R0105 is used. Alternatively, a connection through an intermediately switched hub or switch is possible. -
Page 19: Connection To Bt300
Connection to BT300 Fig. 4-7 Electrical connection BT300 NOTICE For a direct connection between the data module and GKI300, a cross-over Ethernet cable type 663R0105 is used. Alternatively, a connection through an intermediately switched hub or switch is possible. In this case, commercial, non-crossed-over Ethernet cable must be used. -
Page 20: Commissioning
Commissioning Commissioning Commissioning To start up the system, press the On/Off button (1) on the bottom of the GKI300. Fig. 5-1 Commissioning the GKI300 The visualisation system starts automatically; the connection with the data module is estab- lished in the same manner. -
Page 21: Operation
Operation Operation Main Menu After a successful system start, the following display appears. Fig. 6-1 Main menu, starting screen Using a touch screen or input device (USB mouse), you can now navigate through the individ- ual menu and submenu. Refresh Burner operation screen Fuel-air ratio curves Load controller... -
Page 22: Burner Details
Operation Burner Details Fig. 6-2 Burner details Return to the main menu Data setting Status of the digital inputs Status of the digital outputs... -
Page 23: Fuel-Air Ratio Curves
Operation Fuel-air Ratio Curves Fig. 6-3 Fuel-air ratio curves Return to the main menu Operating hours and start-up counter Parameter list Fault history (shows the last 10 faults of the connected device) Version information of the connected devices... -
Page 24: Load Controller Display
Operation Load Controller Display (only if the integrated burner firing-rate controller in FMS/ETAMATIC is active) Fig. 6-4 Load controller display Return to the main menu Refresh display Current actual value Switch-on point: Actual value below this point firing-rate controller starts. Shut-down Point: Actual value above this point burner runs in base firing-rate. -
Page 25: Co/O 2 Setpoint Curve
Operation CO/O Setpoint Curve Only if O or CO control exists in the system. Fig. 6-5 CO/O setpoint curve Return to the main menu CO/O status display CO/O fault history Selection of the O setpoint curve with CO limit (only if CO control is active) learning curve CO learning curve... -
Page 26: Nems Display
Operation NEMS Display Only if the NEMS fault indicator exists in the system. Fig. 6-6 NEMS display Return to the main menu List of NEMS events... -
Page 27: Set Values
Operation Set Values You can access the data setting window by activating this button in the main menu. Fig. 6-7 Set values in the data setting window The burner can be switched on. If the burner is in operation, a firing-rate value can be preselected here and the firing- rate value can be overwritten externally or by the load controller. -
Page 28: Language Selection
Operation Language Selection The GKI300 is provided with the language version preselected that was indicated in the order. The currently available languages are: • German • English • Chinese • Korean • Russian Additional languages (in preparation) The currently available languages can be requested at info@lamtec.de. - Page 29 Operation 3. Confirm request with "OK." Fig. 6-9 End the GKI300 visualisation system 4. The operating system user interface appears. Fig. 6-10 GKI300 operating system user interface 5. Activate Icon "Stop VC" with double-click, than wait until the message "VISIOCON- TROL server shut down"...
-
Page 30: Switch Off Gki300
Operation Switch Off GKI300 1. Press the On/Off button on the bottom of the device. Fig. 6-11 Switch off GKI300 2. The shut-down menu appears. Fig. 6-12 GKI shutdown screen 1. Press "Shut Down" (1), The device shuts off. NOTICE... -
Page 31: Alternative Shut Down Methods
Operation 6.10 Alternative Shut Down Methods Alternative shut down methods Fig. 6-13 main Menu If the On/Off button is not accessible, proceed as follows. 1. End the visualisation system with "X" button. 2. Confirm the following safety query with "OK."... - Page 32 Operation The operating system user interface appears. Fig. 6-14 Operation system surface GKI300 1. Activate the symbol "Quit System" at the top right. The shut-down menu appears. Fig. 6-15 GKI shut-down screen 1. Press "Shut Down" (1). The device shuts off.
-
Page 33: Request Gki300 Screen From Other Network Computers
Request GKI300 Screen from Other Network Computers Request GKI300 Screen from Other Network Computers It is not possible to request the GKI300 screen from other network computers. -
Page 34: Maintenance
There is no maintenance required on GKI300. • Switch-off the device before cleaning. • Make sure that no objects or liquids get inside of the GKI300. • The internal components and modules must not be cleaned or come into contact with moisture. -
Page 35: Spare Parts
663R9041T (T=panel mounting), 663R9041W (W=wall mounting) Power supply unit 663R9044 SATA connecting piping Screw set Stylus User manual and driver CD Cross-over Ethernet cable (connection between data module 663R0105 and GKI300) Data module 663R0411 Fastening clamps for control cabinet installation 663R9042... -
Page 36: Correcting Faults
Correcting Faults Correcting Faults 10.1 Visualisation System does not Start 1. Manual start of the visualisation system. a) Activate Icon "VC GUI" (double-click) Fig. 10-1 GKI300 operating system user interface... -
Page 37: Visualisation System Has Crashed
Correcting Faults 10.2 Visualisation System has Crashed Start visualisation again Fig. 10-2 GKI300 operating system user interface 1. Activate Icon "Stop VC" (double-click) 2. Wait until the text window closes 3. Activate Icon "Start VC" (double-click) 4. Wait 5. Activate Icon... -
Page 38: Visualisation System Contains No Plant Values
Check Ethernet data line and exchange if necessary (use a cross-over Ethernet data ca- ble) • If a fault of the network adapter in the data module or GKI300 or a defect in the equipment itself, please contact your system installer. 10.4 Error Message Website not Available Check internet or intranet access, if necessary, inform system administrator. -
Page 39: Repair
Repair If any repair work is necessary please contact your dealer or plant fitter. You can find your local LAMTEC partner on the LAMTEC Website. www.lamtec.de/vertrieb/vertrieb-weltweit.html You have also the possibility to send the device including a fault description to: LAMTEC Meß- und Regeltechnik für Feuerungen GmbH &... -
Page 40: Disposal Notes
Disposal Notes Disposal Notes All parts of the GKI300 system are to be treated as electrical scrap and disposed of according to the local regulations. - Page 41 Disposal Notes...
- Page 42 The information in this publication is subject to technical changes. LAMTEC Meß- und Regeltechnik für Feuerungen GmbH & Co. KG Wiesenstraße 6 D-69190 Walldorf Telefon: +49 (0) 6227 6052-0 info@lamtec.de Telefax: +49 (0) 6227 6052-57 www.lamtec.de Printed in Germany | Copyright 2017...
