Congratulations on your purchase of the
SdKfz 234. With the
ElMod Fusion Puma
functions combined with easy installation. You adjust all functions down to the last detail, conveniently on your Windows®
or Apple® computer through numerous, meaningfully summarized and extensively explained settings.
Before installation, check that the set is complete:
ElMod Fusion Puma
board
•
• Volume control incl. cable and plug
• Cable for connecting the proportional system
• Cable for the speaker connection
• microSD card (already inserted on the
• USB cable for connection to the computer
• Cables for connecting additional light sources
Bat
Battery connector
Mot
Motor connector
Setup
Push-button for setup/reset/firmware update
Srv1..3 Connectors for servo motors
L
Status-LEDs
SD
microSD-card
1
Turret motor connector
2
Terminals for lighting
Hint: all connectors are labeled on the top or bottom side of the PCB.
Installation instructions and user manual
Before installation always read carefully all these instructions.
ElMod Fusion
Puma, the innovative and universal full-option solution for the
you can upgrade your model with true-to-scale motion, weapon, light and special
Scope of delivery
ElMod Fusion
Puma)
Connectors and operating elements

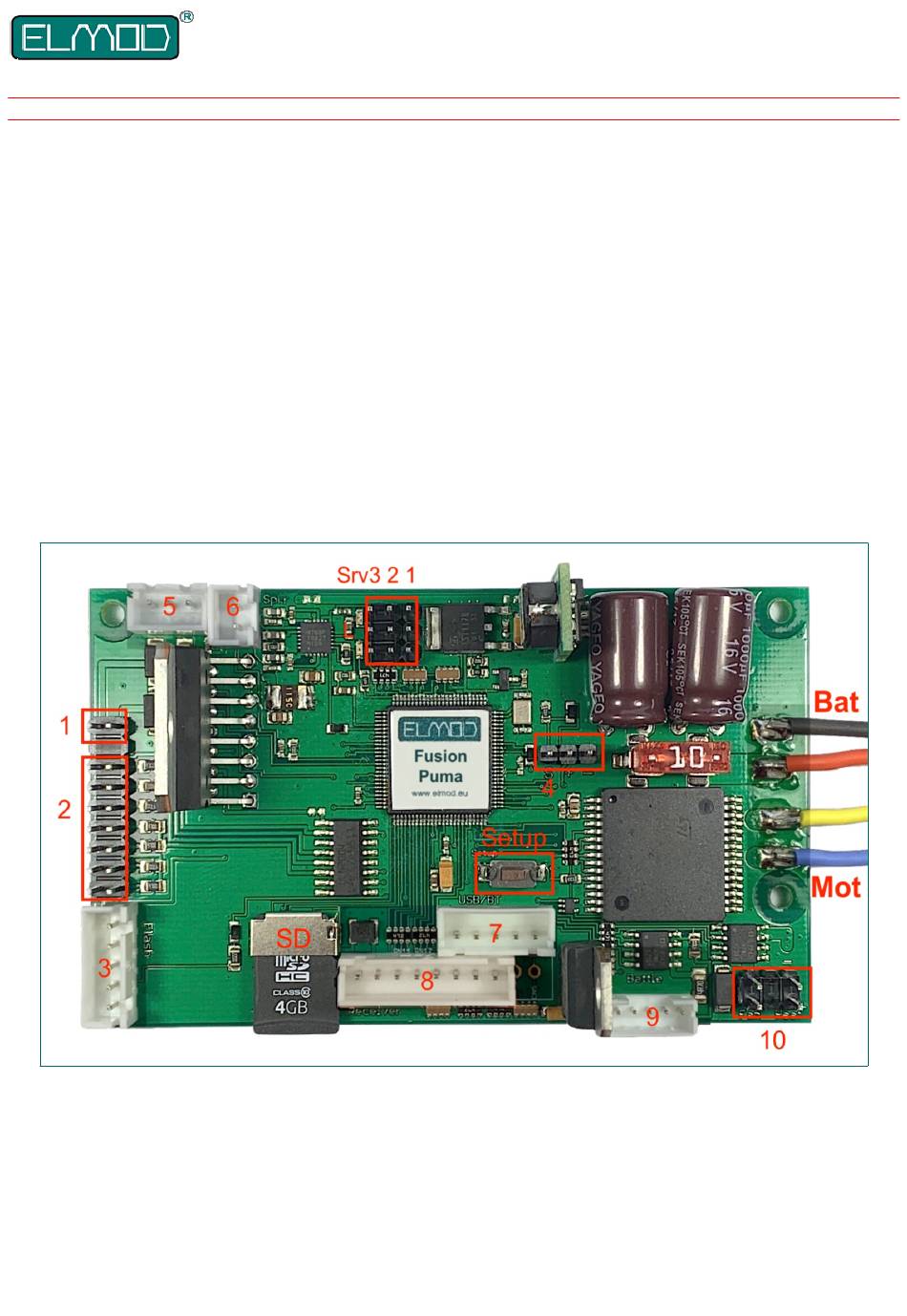

ElMod Fusion Puma Board
3
Main gun muzzle flash connector
4
Connector for optional external ESC
5
Connector for volume control knob
6
Connector for loudspeaker
7
Connector for USB-Dongle und ElMod Bluetooth
8
Connector for RC-receiver
9
Connector for IR-Battle add-on
10
Connector for a smoker unit
- 1 -
© ElMod - 19-12-26
