Summary of Contents for Hoyos SCIROCCO

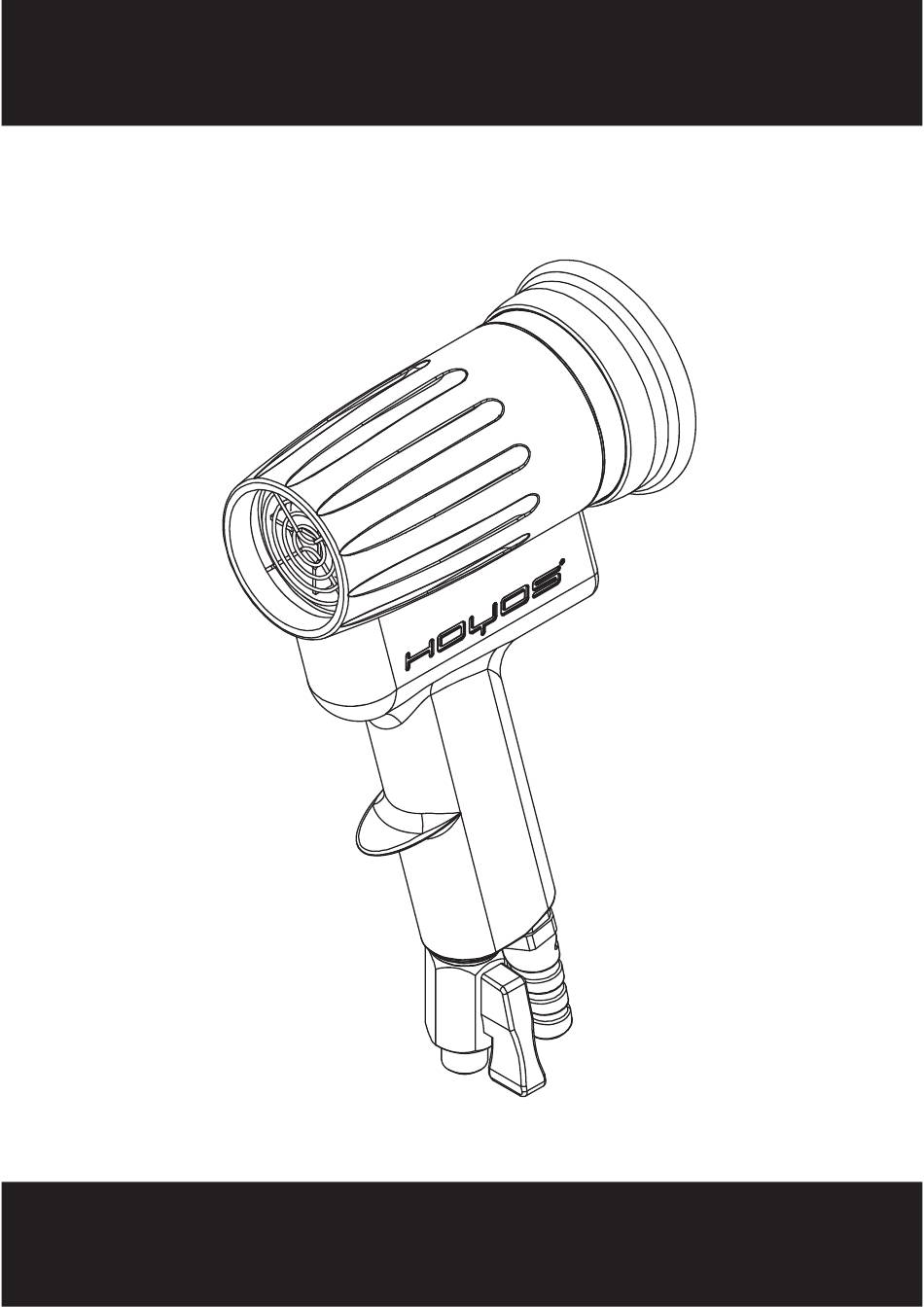

- Page 1 SAFETY MANUAL AND USER INSTRUCTS HEAT ASSISTED SPOT DRYER AIR GUN...
- Page 2 SYMBOLS Warning Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. Wear respiratory protective equipment Always read the operator’s manual Conformity to CE directive OPERATIONS INSTRUCTIONS: Note: Before using the tool, read this instruction booklet carefully.
- Page 3 SAFETY INSTRUCTIONS FOR YOUR HEAT ASSISTED SPOT DRYER AIR GUN IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE PERSONAL INJURY, DAMAGE EQUIPMENT OR INVALIDATE THE WARRANTY.
-
Page 4: Electrical Information
ELECTRICAL INFORMATION WARNING! Earth Requirment: This paint dryer must be connect to an earthed electrical supply! Failure to ensure a correctly earthed connection may result in personnel injury. Important note: Be sure the supply is the same as the voltage given on the rating plate. The tool is fitted with a three-core cable and plug. -
Page 5: General Operating Information
GENERAL OPERATING INFORMATION 1 Hot air outlet 5 Handle 2 Barrel - 6 Air line valve - WARNING may become hot during use Vertical is on 3 Cool air inlet 7 Electrical cable - Appliance must be earthed 4 Heat assist power switch 8 Air line connection Page 4... -
Page 6: Technical Data
TECHNICAL DATA ELECTRICAL / MECHANICAL DATA Voltage: 220-240V~ 50Hz Input power: 1200W Protection class: Plug: CEE 7/4 Earthed Plug 140mm X 214mm X 72mm Unit size (excluding air line connector & electrical cable) 1.09kg Unit weight: MINUMUM AIR PRESURE/FLOW REQUIREMENTS Compressor Pressure: >... -
Page 7: Maintenance
MAINTENANCE WARNING: Always ensure that the paint dryer is switched off, unplugged from the power supply and disconnected from the air supply before conducting any maintenance. If the tool has been used it should be allowed to fully cool down before cleaning or storing. -
Page 8: Air Operation
AIR OPERATION AIR VALVE OPERATION APPLICATION OF HEAT: This heat assisted air dryer is fitted with a pressure switch for safety and accident prevention. To activate the heating element the airline must be switched on fully in the vertical position to provide sufficient operating pressure. -
Page 9: Declaration Of Conformity
Fields Road Cheltenham Gloucestershire GL54 4NG Declare that the product: Designation: SCIROCCO Model Number2: 0101-240-EU and 0101-240-UK Complies with the following Directives: 2014/35/EC Low Voltage Directive 2011/65/EC Restrictions of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment...
