Jispro Cheetah Manual

Thanks for purchasing the kit designed especially for flying the RCEP (F5D – 400) Pylon Racing cathegory. The kit is manufactured using
an state-of-art sandwich technology.
For finishing the kit you need (not included in the kit):
sharp knife, scissors, cyanoacrylate glue, thermoplastic glue and the approprite heating gun, drill, needle files, screwdriver
For flying you need (not included in the kit) :
RC set, 3 channels minimum
Motor: Speed 400 (6 V)
Accus: 7 x Sanyo 500 mAh
Speed controller: any one suitable for the motor control
Propeller: 5.2x5.2 (13x13 cm)
RC functions:
Butterfly tail – elevator only
Ailerons

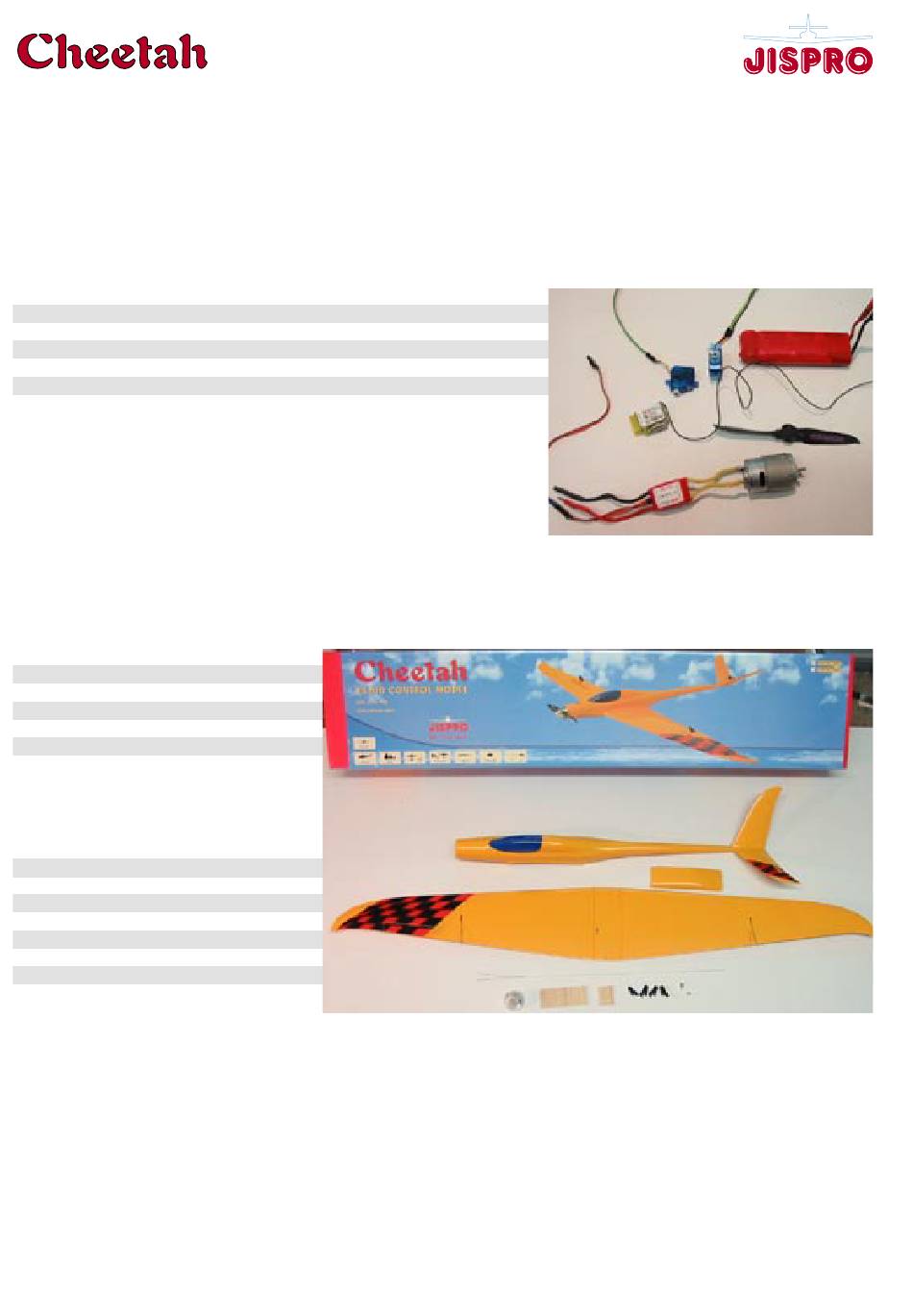

List of parts supplied in the kit :
1. composite fuselage
2. composite wing
3. fuselage bottom cover
4. alu spinner
5. accessories
6. building instructions

Specifications :

Length 555 mm
Wingspan 832 mm
Wing area 6.58 dm
Total flying weight 380 g
Wing loading 57.75 grams per dm
Motor Speed 400 (6 V)
Airfoil MH 24

Design features:

Fuselage - a combination of glass, carbon and kevlar fibre composite in acrylic paint finish
Wing - crescent-shaped leading edge, manufactured using an state-of-art sandwich technology with carbon fibre spars, finished in
acrylic paint.
WARNING!
You are fully responsible for safety when using this model. Improper use of this product can lead to bodily harm or property damage.
Fly it far enough from the built-up areas. Be sure nobody else uses the same frequency as you do. Do not leave the model in a space with a
high ambient temperature, such as inside a closed car or in the direct sunlight. The temperatures above 40 degrees Centigrade (104 deg
F) can decrease the strength of some parts. For persons 14 years old and above. To be used under a supervision of an adult.
JISPRO, http.//www.mujobchod.atlas.cz./jispro, e-mail: jispro@volny.cz
2
2
suggested servo:
1 x micro servo
1 x micro servo
„Hitec 55"
„Hitec 55"
