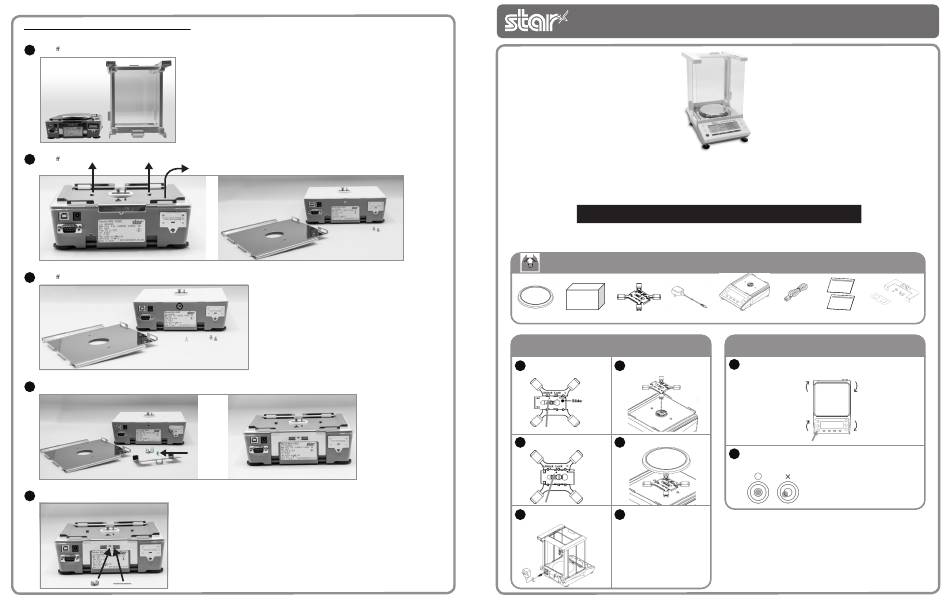

Star mG-S Series Support Manual

Star mG-S Series Wire Sealing Guide
mG-S322
Take o the wind shield.
1
2 Take o M3 hexagon screws (opposite side size: 5.5mm) and base frame.
3 Take o the screw on the back.
4 Attach wire sealing holder to back of scale using the back screws.
Slim head screws
Holder
Run wire through the 2 holes and secure them to the counter.
5
Copyright © 2018 Star Micronics Co., Ltd. SMA-MG322-Insert-1118 Rev-11
Scale Support Guide
Thank You for Purchasing Star's mG-Scale!
Your new scale has a lot to offer! This scale is NTEP Certified meaning you can sell the products that you are weighing. There are
a few steps before you can legally use it. Every state has different rules and regulations.
For more information about your state, please refer to
https://starmicronics.com/Pages/mgscalessupport
WARNING: PRODUCTS SOLD ON A SCALE THAT IS NOT PROPERLY REGISTERED CAN RESULT IN LEGAL ACTION.
Check Supplied Accessories
Round Pan Windshield box Pan Base AC-Adapter

Assemble the Scale

1 Make sure the slide is 2 Put the Pan Base on the scale.
in Unlock position.
3 Slide to Lock position. 4 Put the Pan on the scale.
5 6 Connect AC adaptor.
Assemble and attach the windshield.
Refer to Assembling the windshield.
Star Micronics America - mG-S Series Scale Support Guide
For more details about unit's setup, usages and specifications, refer to the manual on the link. http://www.star-m.jp/prjump/000106.html
mG-S322
This Manual
Operation
Manual
Main Unit USB Cable Setup Guides

Level the Scale

1 Before turning on the scale, place the scale on a stable surface.
Then, adjust the four feet at the corners.
2 Make sure the level bubble is in the center as below.
37967880
mG-S Series
Parts for Sealing
