Specifications - Lectrosonics ISO9VOLT Technical Data

Specifications

Input:
Minimum: 10.5 VDC
Maximum: 18 VDC
Connector: DC sleeve type
Output:
Voltage: 9 VDC regulated
Power: 200 mA maximum
Size and Weight:
Height: .67 in. (17 mm)
Width: .99 in. (25 mm)
Length: 1.76 in. (45 mm) housing only
1.91 in. (49 mm) including battery
contacts)
Weight: .6 ozs. (16.4 grams)
581 Laser Road NE • Rio Rancho, NM 87124 USA • www.lectrosonics.com
(505) 892-4501 • (800) 821-1121 • fax (505) 892-6243 • sales@lectrosonics.com

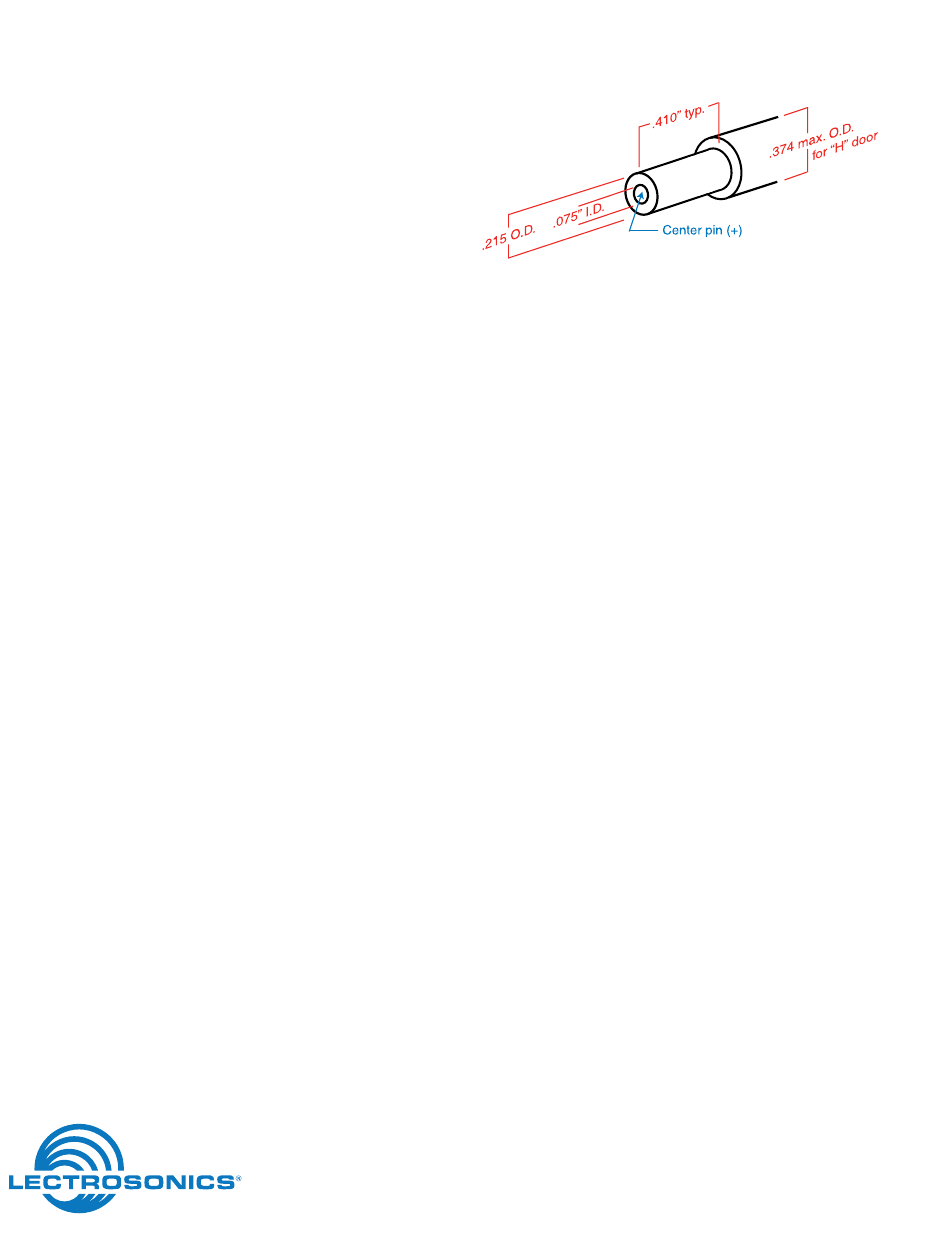

Mating Plug Dimensions and Polarity
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
November 10, 2006
