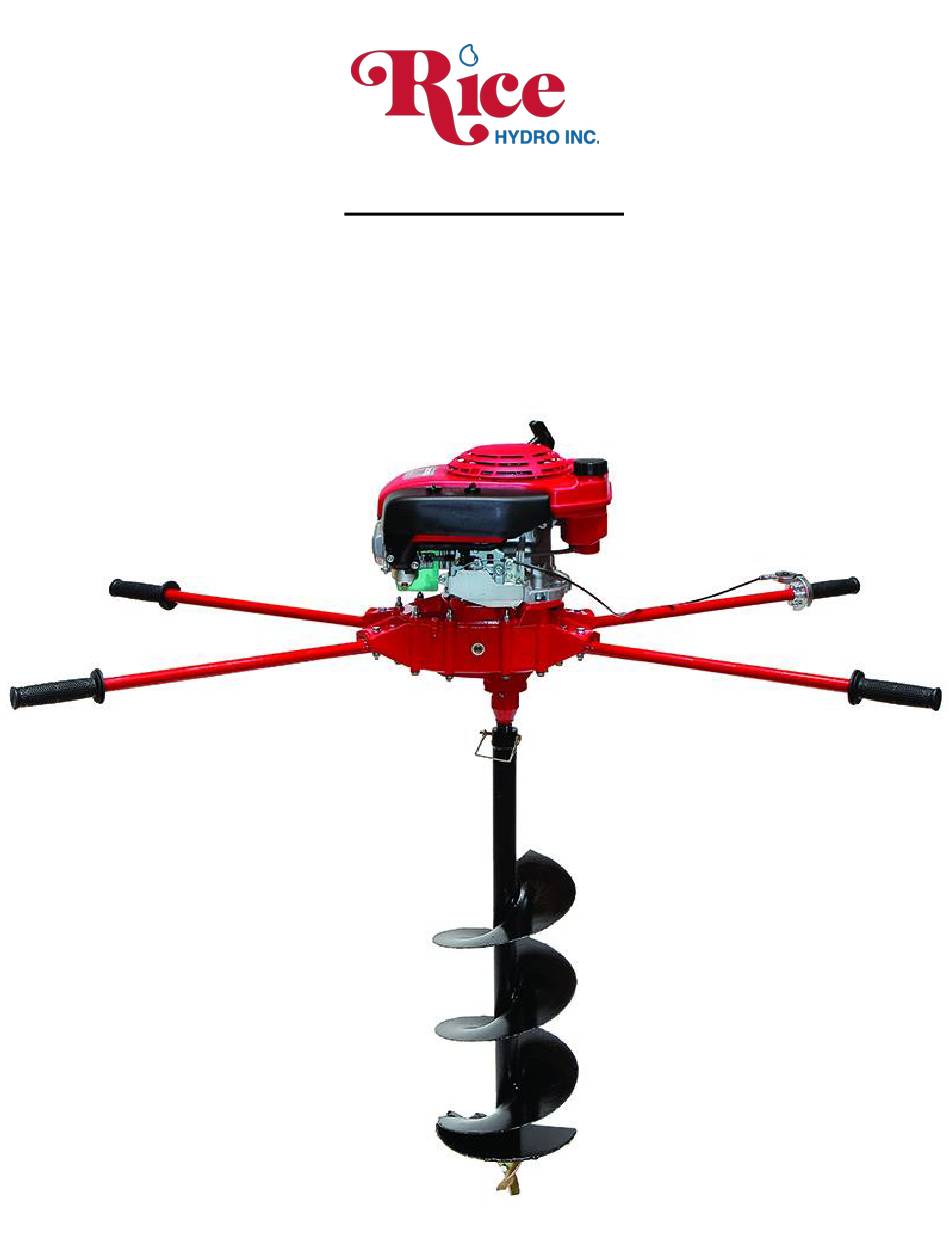

- Page 1 MANUFACTURER'S HOW TO ASSEMBLE INSTRUCTIONS: DIRTDAWG-TM11 TWO MAN POST HOLE DIGGER – GAS POWERED FOR WARRANTY REGISTRATION CALL: 1-800-245-4777 RICEHYDRO.COM...
- Page 2 ASSEMBLY INSTRUCTIONS (1) LEFT HAND MARKED “OPERATOR” HANDLE (1) MARKED “ASSISTANT” KILL SWITCH ASSISTANTS HANDLE (1) MARKED “LEAN ON THESE HANDLES” (1) RIGHT HAND THROTTLE HANDLE (1) TRANSMISSION HONDA ENGINE RECOMMENDED TOOLS: ½” WRENCH ½” SOCKET RACHET SCREWDRIVER...
- Page 3 CONNECTING HANDLES PLACE TRANSMISSION HONDA ENGINE ON A SECURE TABLE FOR ASSEMBLY. CONNECT TWO HANDLES ON ONE SIDE THEN CONNECT THE OTHER TWO ON OPPOSITE SIDES TO BALANCE. Step 1 . CONNECT RIGHT HAND THROTTLE HANDLE WITH LABELED THROTTLE SIDE OF TRANSMISSION Connect OPERATOR RIGHT HAND THROTTLE into TRANSMISSION HONDA ENGINE where it says...
- Page 4 CONNECTING CABLE WIRES Step 1. CONNECT RIGHT HAND THROTTLE HANDLE CABLE WIRE As shown in picture, connect the throttle cable thru clamp, securing clamp at the one o’clock positions then secure the cable eyelet & tighten screw. *To prevent binding of the throttle cable, maintain loop as shown in picture. Step 2.
