ALL200/ALL200-CM
INSTALLATION INSTRUCTIONS
Aladdin Light Lift, Inc.
61 Shields Road
Huntsville, AL 35811
Patent #5105349
WARNING: Disconnect power source before servicing to avoid electrical shock
CAUTION: To Reduce the Risk of Electric Shock or Injury, Use Indoors Only.
Light and motor circuits are rated at AC 110V
Pour usage seulement dans un endroit
Avec acces au dessus du plafonds
Model Number: ALL200 (200lb. rated working load, 1/8" steel galvanized lay cable, 1.5amp, 50/60Hz)
__
MC Cable _(if checked)
Light lift is equipped with a 35' cable unless checked below:
______65'
______90'
______120'
Light lift is equipped with a 1,650 watt (15 amps)
lighting capacity unless checked below:
______2200 watts (20 amps)
________________________
Manufacture Date
(256) 429-9700
(877) 287-4601
www.aladdinlightlift.com
© 2017 All Rights Reserved
Electric Hoist
91F5
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Aladdin ALL200
Summary of Contents for Aladdin ALL200
- Page 1 Pour usage seulement dans un endroit Avec acces au dessus du plafonds Model Number: ALL200 (200lb. rated working load, 1/8” steel galvanized lay cable, 1.5amp, 50/60Hz) MC Cable _(if checked) Light lift is equipped with a 35’ cable unless checked below: ______65’...
- Page 2 Instructions and orange safety precautions supplement. V. During installation of the ALL200, take one step at a time and check off each step upon completion. VI. The Troubleshooting Guide is located in the back of the Installation Instructions. Call Aladdin Light Lift (877) 287-4601 if assistance is needed for installation and/or operation of the ALL200.
- Page 3 Never install the ALL200 where the ceiling height exceeds five feet less than the exact length of winch cable. For example, if the ALL200 is equipped with a 35ft. cable, do not install the ALL200 in a ceiling that is greater than 30ft. This could cause the cable to become reverse wrapped on the winch. An ALL200 installed with a reverse wrapped cable could cause the chandelier to fall, which could cause death, personal injury, and/or property damage.
- Page 4 Tighten temporary five pound weight to fixture coupler on bottom contact plate. Make sure jam nut on weight is tight. Never install or operate an ALL200 before securing the temporary five pound weight to the fixture coupler. This could cause the temporary weight to fall, which could cause death, personal injury, and/or...
- Page 5 STEP 7 Position ALL200 where ceiling box will be centered in ceiling hole. Weight and bottom contact plate assembly should hang down through ceiling hole. Adjustments can be made loosening 3/8” channel strut bolts that hold ALL200 to channel struts. Retighten channel strut bolts after adjustments are made.
- Page 6 STEP 9 Shim and adjust ALL200 so that winch cable hangs plumb through center of hole in top contact plate on ceiling box. See Diagram E. Look up at ceiling box from floor level to verify cable is plumb. https://youtu.be/wpEWV0C0VCM Never install the ALL200 where the cable is not plumb through the center of the ceiling box.
- Page 7 STEP 12 Turn off supply power before wiring ALL200. Turn off light switch in square box. Wire light switch with 110V wiring. The 110V light switch leg can not be used as motor feed. Keep light and motor neutrals separate.
- Page 8 Call Aladdin Light Lift (877) 287-4601 immediately if ALL200 does not shut off at CEILING POSITION. Never extend the full length of winch cable from the ALL200. This could cause the cable to become reverse wrapped on the winch. An ALL200 installed with a reverse wrapped cable can cause the chandelier to fall, which could cause death, personal injury, and/or property damage.
- Page 9 Adjust chandelier chain to desired length and attach to screw collar loop. Never cut, modify, or adjust the winch cable and never install an ALL200 with a cut, modified or adjusted winch cable. Adjust the chandelier elevation by adjusting the chandelier chain or stem. An ALL200 installed with a cut, modified, or improperly adjusted cable could cause the chandelier to fall, which could cause death, personal injury, and/or property damage.
- Page 10 STEP 23 Adjust canopy and telescopic conduit assembly so contact plates meet before the canopy touches the ceiling. See Diagram I. https://youtu.be/eQqLRAexFq8 Never allow the chandelier canopy to make contact with the ceiling before the contact plates meet. This could interfere with the automatic shutoff system and could cause the chandelier to fall, which could cause death, personal injury, and/or property damage.
- Page 11 Apply supplied liquid thread lock (part D) to all fittings including fixture coupler and screw collar loop fittings. Never attach the chandelier to the ALL200 improperly. Failure to secure the fixture coupler set screws and properly apply thread lock could cause the chandelier to fall, which could cause death, personal injury, and/or property damage.
- Page 12 1. Confirm motor switch in the square box is turned on. The square box is mounted on the chassis plate of the ALL200, right in front of the control board. If it was found in the off position, flip it to the on position and use the controller to test the ALL200.
- Page 13 2. Confirm light and motor switch in the square box are turned on. The square box is mounted on the chassis plate of the ALL200, right in front of the control board. If it was found in the off position, flip it to the on position and test the chandelier.
-
Page 14: Warranty Agreement
Warranty Agreement Aladdin Light Lift, Inc. warrants its chandelier light lift unit for one year from the date of purchase. The warranty includes all parts provided the unit is installed properly by a licensed electrician. Labor charges will be the responsibility of the purchaser. If the unit does not operate properly, the purchaser must contact a factory authorized service technician approved by Aladdin Light Lift, Inc.
Need help?
Do you have a question about the ALL200 and is the answer not in the manual?
Questions and answers

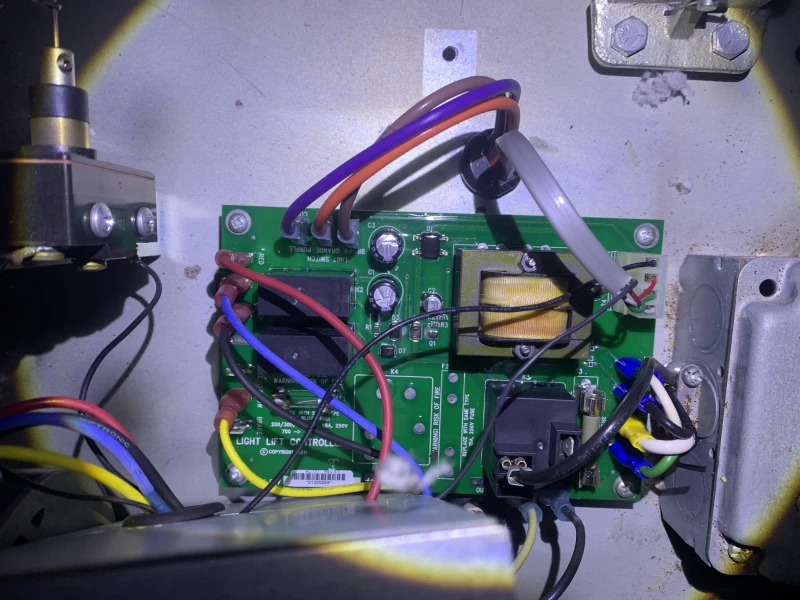

How can I get parts for a all 200 lift ? Specifically the circuit board.
You can find the ALA CB200 circuit board for the Aladdin ALL200 lift at Cooper Electric. It is listed under catalog # CB200 and Cooper Electric part # 762804 for $86.00 each. However, it is currently out of stock, so you may need to contact a sales representative for availability, pricing, and lead times.
