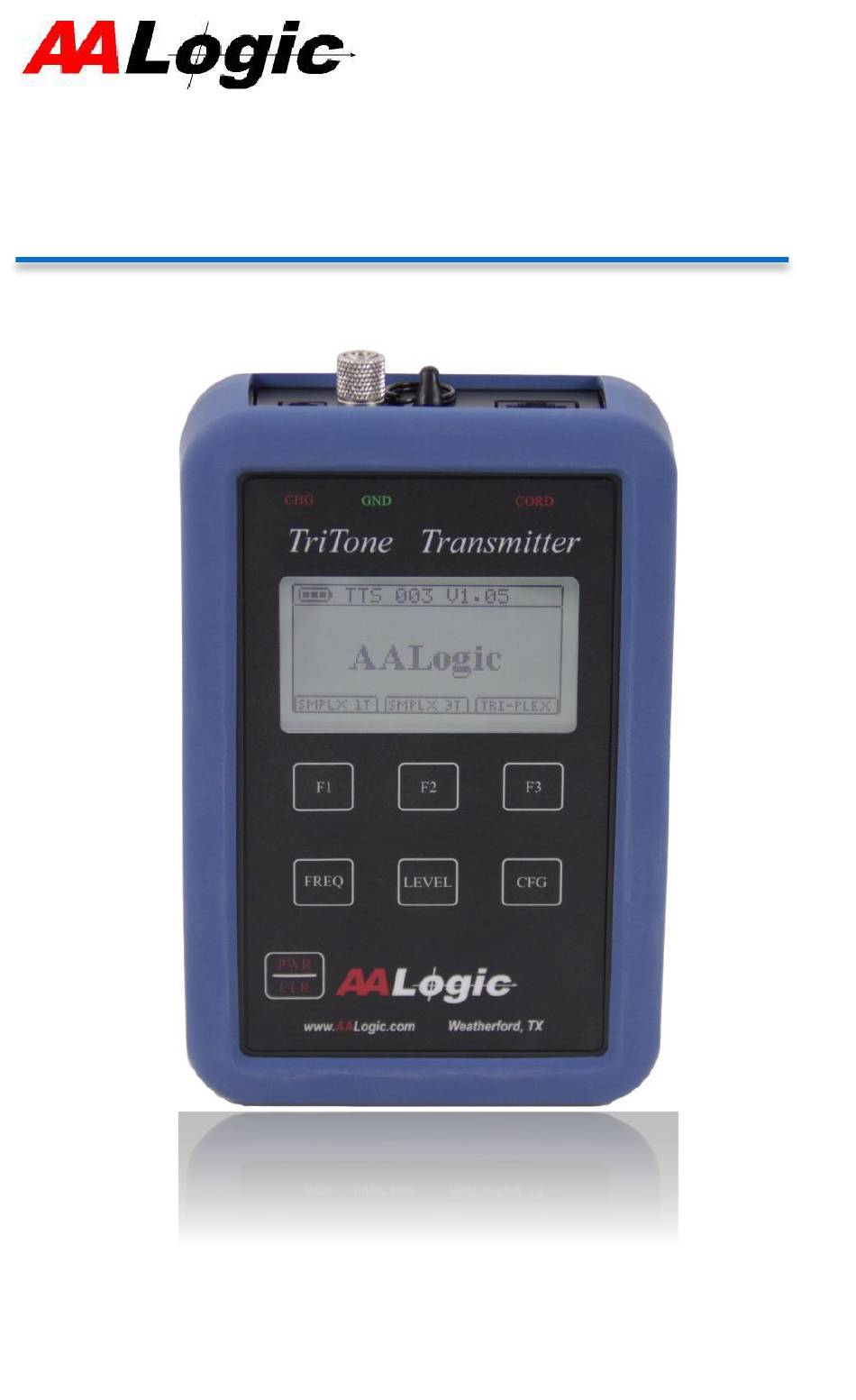

- Page 1 TRITONE TRANSMITTER 3 User Guide Version 1.3 Allied Analogic, Inc.
- Page 2 CONNECTIONS The TriTone Transmitter 3 has a Pair Cord, with Red and Black needle clips, and a Ground Cord. Connect the Pair Cord assembly and the Ground Cord to the jacks located on the top of the TriTone Transmitter 3.
-
Page 3: Operation
TONE SELECTION The TriTone Transmitter 3 generates 577.5 Hz or 987 Hz tone. The TriTone Transmitter 3 retains the previous selection when the power is turned on. The frequency can be set from the main screen or any operating screen. -
Page 4: Mode Selection
The TriTone Transmitter 3 retains the previous selection when the power is turned on. The level can be set from the main screen or any operating screen. Press the LEVEL, use the [F2] or to select the desired level, and press [F1] SET. - Page 5 Tip and Ring wires. There should be a significant increase in tone on only the correct pair. AALogic manufactures a DAP-125 probe compatible with the D-105 Cable Test Set and other AALogic products. This probe is a differential probe and is especially designed to enhance pair location when using TRI-PLEX tone. Allied Analogic, Inc.
- Page 6 METALIC TONE Metallic tone may be applied between the Ground cord and Red clips of the TriTone Transmitter 3. This allows the user to apply tone for a variety of applications. PAIR IDENTIFICATION This mode is not dependent on the condition of the grounds or bonds but tone will not be heard if one side of the pair is open.
-
Page 7: Specifications
TriPlex and Simplex. WARRANTY The TriTone Transmitter 3 is warranted against defects in materials and workmanship for a period of one year from the date of purchase. Contact your local sales representative or the manufacturer for a Return Authorization (RA) number and instructions on returning the product for service.
