Summary of Contents for Teesing Aeroqual Dust Sentry Pro

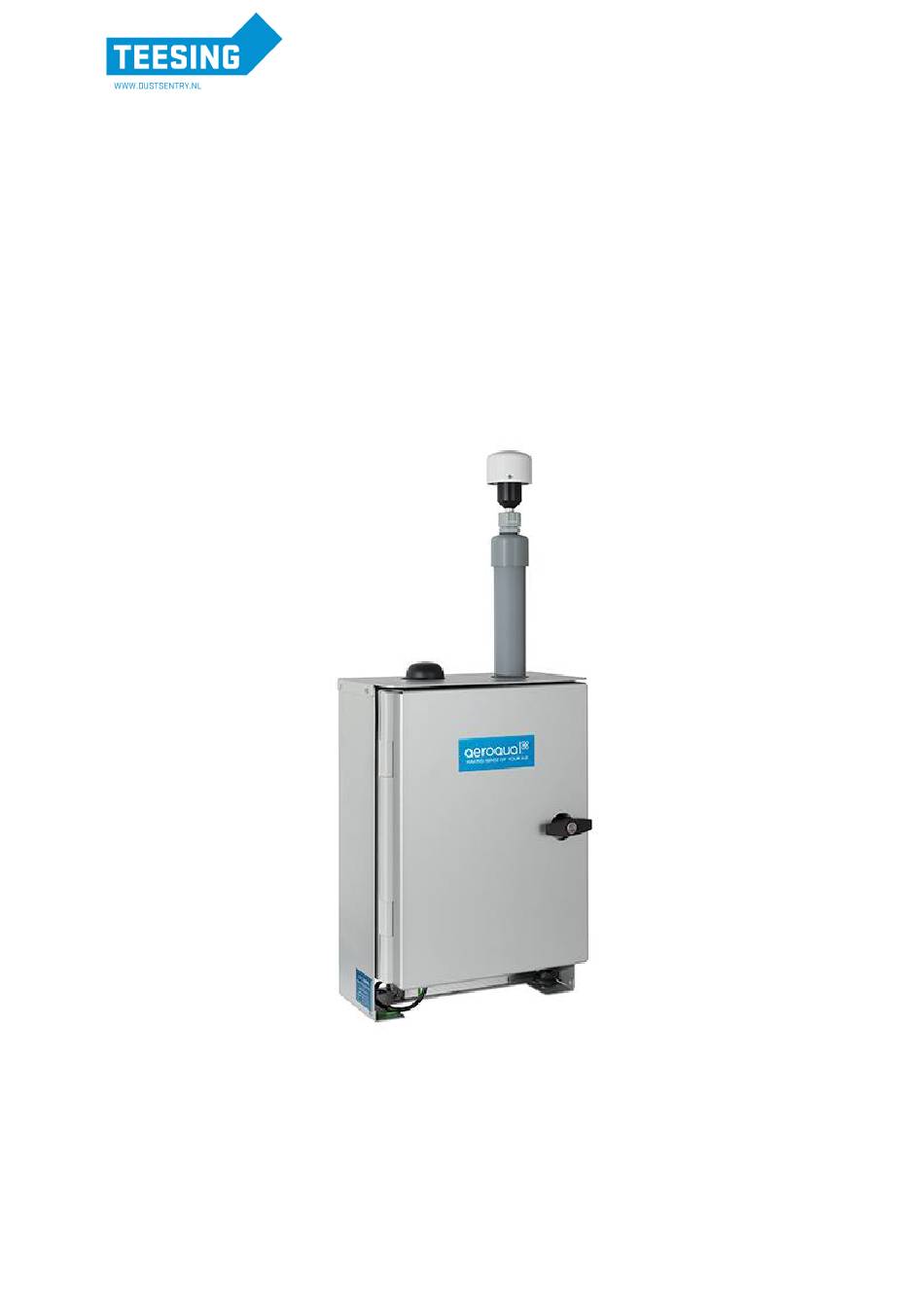

  • Page 1 WWW.DUSTSENTRY.NL | +31 70 413 70 50...

  • Page 2: Table Of Contents

    Table of Contents User Guide Revision History ......................4 Description ........................... 5 Optical Particle Counter ......................6 1.1.1 Electrical connections ..................... 6 1.1.2 Data Outputs ........................6 1.1.3. Inlet Heater ........................7 1.1.4. Filters ..........................7 1.2. Pump Module .......................... 7 1.3.
  • Page 3 4.2.5. Filter Changes ........................ 28 4.2.6. Inlet Cleaning ........................ 28 4.2.7. Pump Module Removal ....................28 Calibration ......................... 29 Troubleshooting ......................... 30 Specifications ........................32 Schematic Diagrams ......................33 8.1. Pneumatics ..........................33 8.2. Electrical ..........................33 8.3. Communication ........................34 Third Party Sensors ......................

  • Page 4: User Guide Revision History

    Product Version: 1.2 Document Version: 1 Date released: April 2014 Description: User Guide for Dust Sentry Pro This user guide is a newly created document for the use of the Aeroqual Dust Sentry Pro. Date Revision number Description of change...

  • Page 5: Description

    1. Description Aeroqual’s Dust Sentry Pro is a user friendly instrument designed to provide continuous particulate measurement of PM , PM , PM , and TSP. It uses an optical particle counter to count and classify particulate matter according to size. The instrument then converts the size distribution into a mass measurement.

  • Page 6: Optical Particle Counter

    Optical Particle Counter Aeroqual uses an OEM optical particle counter from Met One Instruments. The particle counter uses scattered light to measure and count particles. Light from a laser diode is collimated to illuminate the aerosol sample flow. When a particle is present it scatters the incident laser light which is detected using a 60 solid angle elliptical mirror at right angles...

  • Page 7: Inlet Heater

    Sensor name Definition Range Units Default configuration Particle mass below 1 µm µg/m3 PM2.5 Particle mass below 2.5 µm 2000 µg/m3 PM10 Particle mass below 10 µm 5000 µg/m3 Total suspended particle mass 5000 µg/m3 Optional configuration 8PC0.3 Number of particles with diameter larger than 0.3 µm 0-1000000 particles/L Number of particles with diameter larger than 0.5 µm...

  • Page 8: Control Module

    1.3. Control Module The control module is the interface between the RS485 sensor bus and data communication links. It contains a display, a SD data card which logs data, a RS232 serial connector for external communication, a bus connector for internal communication with the sensor modules and a cable connector for the Sensiron Humidity and Temperature sensor (if fitted).

  • Page 9: Power Module

    1.4. Power Module The Dust Sentry Pro internal power requires regulated 12 VDC to maintain a constant pump speed. An external mains to 12VDC power supply (Meanwell HLG80-12A 60W 12V) is fitted on the outside of the enclosure and this will allow connection to mains supply. Note: If you wish to run the Dust Sentry Pro on solar power you will need to use a DC-DC convertor in order to supply a regulated 12 VDC for the Dust Sentry Pro –...
  • Page 10 Firmware: AUX_MODULE_01. Use for: Analogue inputs, Vaisala WXT520 weather, Gill Windsonic wind, Cirrus MK:427 noise. Function Default - standard Auxiliary module with AN1, AN2, Freq Vaisala WXT520 with RS232 communication + AN1, AN2, Freq Vaisala WXT520 with RS232 communication + Cirrus MK427 Noise Wind Sonic with RS232 communication + AN1, AN2, Freq Wind Sonic with RS232 communication + Cirrus MK427 Noise Cirrus MK427 Noise module only...

  • Page 11: Wiring Of Auxiliary Module

    1.6.1. Wiring of Auxiliary Module PIN 1: GND PIN 2: 12V FUSED PIN 3: RESERVED PIN 4: RESERVED PIN 5: RX PIN 6: TX PIN 7: 0-5V IN PIN 8: 4-20mA IN PIN 9: FREQ IN PIN 10: AGND PIN 11: METONE 034B PWR PIN 12: TIMED RELAY Example of wiring: (Pin 1) GND,...

  • Page 12: Specifications

    1.7.1. Specifications Features Incorporates Telit HE910-DG The Telit module handles all GSM/UMTS GPS module processing with PYTHON script GSM: 850/900/1800/1900MHz Frequency bands UMTS/HSPA+: 800/850/900/1700/1900/2100MHz Single supply voltage 6V DC to 55V DC Power supply connector 4 pin micro-fit 3mm Two outputs optocouplers open collector drive 100ma ADC and GPIO inputs Two inputs optocouplers, 0-55v One ADC 10 bit , 0-55V...

  • Page 13: Alarm Relay

    1.9. Alarm Relay The Dust Profiler has a built in alarm relay function that is set up via the Operation Dialog in the PC software (See Section 3.1.) Relay Output: This is fitted as standard and is activated by “Enable Alarm Relay Output” tick box. If the set point set in “Alarm trigger point”...

  • Page 14: Assembly And Installation

    2. Assembly and Installation 2.1. Assembly of heated inlet Parts List: A. Inlet Tube/Heater including power cable B. TSP Inlet Connect parts A and B Open door of enclosure and remove protective tape from the optical engine Tape iii. Insert Inlet Tube Assembly through base mount and fix the three mounting screws Mounting Screws Note: Ensure the power cable is fed through the inlet hole when connecting...

  • Page 15: Connect Mains Power

    Connect power to Inlet Tube/Heaterinside the enclosure Power cable from heated inlet 2.2. Connect Mains Power Caution: The high voltage mains supply must be wired by a certified electrician in compliance with local electrical regulations.  Locate the power connector terminal which is situated outside the enclosure at the bottom. The power supply will already be wired to the connector however the cable to connect to mains power needs to be wired.

  • Page 16: Dust Sentry Pro Operation And Software

    3. Dust Profiler Operation and Software 3.1. Getting Started Computer Requirements  CD-ROM Drive or internet connection for software download  RS232 serial port or USB – RS232 serial port converter and USB cable (included)  Windows OS version 2000 or later ...
  • Page 17 7. Check configuration a. Select Setup  Configuration b. Check the correct sensors in the Dust Profiler have been configured. c. These should match the sensors on the invoice and the sensors list in the instrument logbook. d. Click Save and Close. Note 1: The more sensors configured, the larger the data file will be.

  • Page 18: System Checks

    g. If the analogue output module is being used please select “Enable 4-20 mA module”. The module will follow the “Output Sensor” selected. Note 1: If “Active on diagnostic” is set the analogue output will go to full scale upon No Report or Sensor Failure condition.
  • Page 19 Configure   Select Setup Configure GPRS Modem  Enter the SIM card provider’s APN and username and password if applicable Note: To use the modem in Server Mode requires an unrestricted APN that can accept connections  Click save ...

  • Page 20: Further Information About Ip Address Solutions Using Gprs Systems

    3.3.1. Further information about IP address solutions using GPRS Systems GPRS is a communication technology that allows data acquisition systems to overcome the difficulty of cabling for wide area remote sites. GPRS applications are becoming more prevalent, but the dynamic IP address issues associated with GPRS networking continue to frustrate system integrators. The trouble with I/O devices with GPRS capability is that they receive a different IP address every time they connect to the GPRS network.

  • Page 21: Sms Message

     Select Setup  Email Recipients and enter the Email server and Email recipients  NOTE: the SMTP server will typically be one provided by your SIM card provider. The user name and password are often not required. 3.3.3. SMS Message This function assumes the modem is fitted and correctly configured.
  • Page 22 Export Logged Data Exports logged data from the Dust Profiler Import Files Imports file (aql file) Download Files Downloads files; including daily files and event log Note: Files can be either saved to the PC only by clicking Save/Save all or saved to the PC and the database by clicking Save &...

  • Page 23: Setup

    Zip database Zips the database Unzip database Unzips the database (prompted by a warning message) Exit Ctrl X Exits the Dust Monitor software 3.4.2. Setup Configuration Configures Monitor ID, Sensor Modules and Measurement Units Operations Configures the Data logging interval and Alarm and Analogue Output functions Test Connection Tests the connection to the Dust Profiler...

  • Page 24: Tools

    3.4.4. Tools View Configuration Views the configuration settings of the Dust Profiler Poll Data (Ctrl D) Polls data from the Dust Profiler (data will appear either in the real time table or real time graph depending on which is open) Switch User Change from User to Engineer mode Change Login User Password...
  • Page 25 Parameter Value Meaning Version Firmware version (software controlling instrument operation) Reserved 298.15 Ambient Temperature (K) TEMA Density 1 (PM1 measurement) TIMA 2.00 Density 2 (PM2.5 measurement) TEMR 2.00 Density 3 (PM10 and TSP measurement) TIMR Accumulation time Offset Volumetric flow rate (LPM) Ambient Pressure (Torr) PWMH Not used...

  • Page 26: Maintenance

    4. Maintenance 4.1. Maintenance Schedule Procedure Section Frequency Sample Flow Check 4.2.1. Monthly Sheath Flow Check 4.2.2. Monthly Manual Zero Air Check 4.2.4. Monthly Filter Changes 4.2.5. 6 to 12 months Inlet Cleaning 4.2.6. 3 Months Optical sensor factory Contact Aeroqual 12 Months calibration Note 1: Suggested intervals for maintenance procedures may vary with sampling intensity and...

  • Page 27: Sheath Flow Check

    Afterwards replace the inlet components with care making sure there is no leak. Exhaust adjustment 4.2.2. Sheath Flow Check 9722-1 engine The sheath flow is a constant stream of air which ensures the optics remains clean. It is important this is working correctly to maintain the accuracy of the measurement.

  • Page 28: Manual Zero Air Check

    4.2.4. Manual Zero Air Check A zero air check can be carried out manually. To do this the TSP inlet needs to be removed and the particle filter (supplied with the instrument) needs to be attached to the monitor. Ensure there is a good seal around the inlet.

  • Page 29: Calibration

    5. Calibration All particle monitors based on light scattering require a site calibration for optimum accuracy. This is because the average density and light scattering behaviour of dust particles will vary from site to site. This adjustment is sometimes known as a “K-factor”. Aeroqual recommends a site calibration be performed at the time of initial installation and then every 6-12 months.

  • Page 30: Troubleshooting

    6. Troubleshooting Symptom Possible Cause Fault isolation/Solution PM values seem Sample flow incorrect Check sample flow and adjust to correct incorrect value using flow adjusters Sample and/or purge filters dirty Replace filters Gain factors incorrect Perform span calibration Offset factor incorrect Perform zero calibration Flow cannot be set to Dirty filters...
  • Page 31 IP Modem connection Sim card account in debt Pay sim account lost Network down Wait for network Signal strength low Install high gain antenna or move instrument to site with better coverage. Low Sensitivity Laser is old Laser needs replacing. Send to your authorised distributor or contact Aeroqual technical support.

  • Page 32: Specifications

    7. Specifications The Dust Profiler uses a Met One Instruments Inc. 9722-1 OEM Particle Counter which operates on the principle of light scatter from suspended particulates to provide a continuous real time measurement of airborne particulate. An algorithm is then used to calculate the equivalent mass concentration.

  • Page 33: Schematic Diagrams

    8. Schematic Diagrams 8.1. Pneumatics 8.2. Electrical WWW.DUSTSENTRY.NL | +31 70 413 70 50...

  • Page 34: Communication

    8.3. Communication WWW.DUSTSENTRY.NL | +31 70 413 70 50...

  • Page 35: Third Party Sensors

    9. Third Party Sensors 9.1. Sensirion T/RH Sensor SHT75 Description: Measures air temperature and relative humidity Specifications: For full details visit the company website www.sensirion.com Air Temperature Range -40°C to + 124°C ±0.3°C Accuracy 0.01°C Resolution Relative Humidity Range 0-100 %RH Accuracy ±2 %RH Resolution...

  • Page 36: Met One Mso

    Wind Speed Range 0-75 m/s ±0.12 m/s @ < 10.1 m/s Accuracy ±1.1% @ > 10.1 m/s Resolution 0.7998 m/s Wind Direction Mechanical 0-360° Range Electrical 0-356° Accuracy ±4° Resolution < 0.5° Mechanical Finish Clear anodized aluminum Sensor Weight 0.81kg Environmental Operating range -30°C to +70°C...

  • Page 37: Vaisala Weather Transmitter Wxt520

    9.5. Vaisala Weather Transmitter WXT520 Description: Measures wind speed and direction; liquid precipitation; barometric pressure; air temperature; and relative humidity Specifications: For full details visit the company website www.vaisala.com Wind speed and Direction Speed Measurement range 0-60 m/s Accuracy ±0.3 m/s or ±3% (0-35 m/s); ±5% (36-60 m/s ) Direction Measurement range...

  • Page 38: Cirrus Mk:427

    9.6. Cirrus MK:427 Description: Class 1 outdoor noise meter Specifications: For full details visit the company website www.cirrus-environmental.com Output Type ‘A’ weighting SPL output in the form of a 4-20mA loop Frequency Weighting dB(A) to IEC 61672-1:2002 Time Weighting Factory set to Fast (‘F’) IEC 61672- 1:2002 Automatic Calibration Electrostatic Actuator System with DC...

  • Page 39: Mounting And Site Positioning Guidelines

    Mounting and Site Positioning Guidelines It is important that the positioning of the Dust Profiler is suitable so as to yield data which is representative of that specific location. 10.1. Mounting The Dust Profiler comes with 2x mounting brackets and 3x U-bolts for 2 inch poles.

  • Page 40: Measurement Interference

    10.3. Measurement Interference  The meteorological conditions of the site should be taken into consideration when positioning the Dust Profiler. For example, there should be no obstruction to the air flow in the predominant wind direction. A minimum clear sky angle of 120 degrees is recommended. ...

  • Page 41: Orbit Data

    Orbit DATA Orbit DATA is a cloud-based data acquisition and reporting system developed specifically for Aeroqual’s real-time air quality instruments. Using Orbit DATA customers are able to access their data online and in real time. The system comprises a proprietary modem which plugs directly into the serial port of your instrument.

  • Page 42: Using The Orbit Data Website

    11.4. Using the Orbit DATA Website Once the Dust Profiler has been configured with the Orbit Modem the unit can be accessed via www.Orbitdata.com  When the site is first accessed a default landing page will be shown  Select Options  Login and Settings ...

  • Page 43: Using The Graphs

     Navigate to your specific site and unit by: Selecting the correct country from the drop down menu Selecting the Region Selecting the Sub-region Selecting the Unit 11.4.1. Using the Graphs Once the correct unit has been selected the default 24 hour graphed data will be shown on the screen.

  • Page 44: Setting Alarms

    11.4.2. Setting Alarms To set an alarm email Aeroqual at technical@aeroqual.com with the following information: 1. What triggers the alarm (e.g. PM10 concentration > 100ug/m3) 2. What clears the alarm (e.g. PM10 concentration < 80ug/m3) 3. Who to notify in the case of an alarm (e.g. Email sales@aeroqual.com or SMS +64 21 123 456)

  • Page 45: Appendix

    Appendix 12.2. Warranty Please review the Aeroqual Warranty Policy on our website at www.aeroqual.com 12.3. Technical Support Technical information, service and spare parts are available through your distributor. In addition, worldwide technical support is available from Aeroqual Ltd. Please contact Aeroqual Technical Support by email: technical@aeroqual.com.

  • Page 46: Www.dustsentry.nl | +31 70 413 70

     USE SENSIBLY Use the Aeroqual DUST PROFILER instrument only as per this user guide.  USE AEROQUAL APPROVED SERVICE Only approved service personnel must work on this product.  ACCESSORIES Use only approved accessories. Do not connect incompatible products. ...
