Thank you for purchasing a Dirtydog 4x4 netting system.
-
Please read these instructions fully to familiarize yourself with
the installation. Set aside 15 minutes for the first time you
install your pet divider.

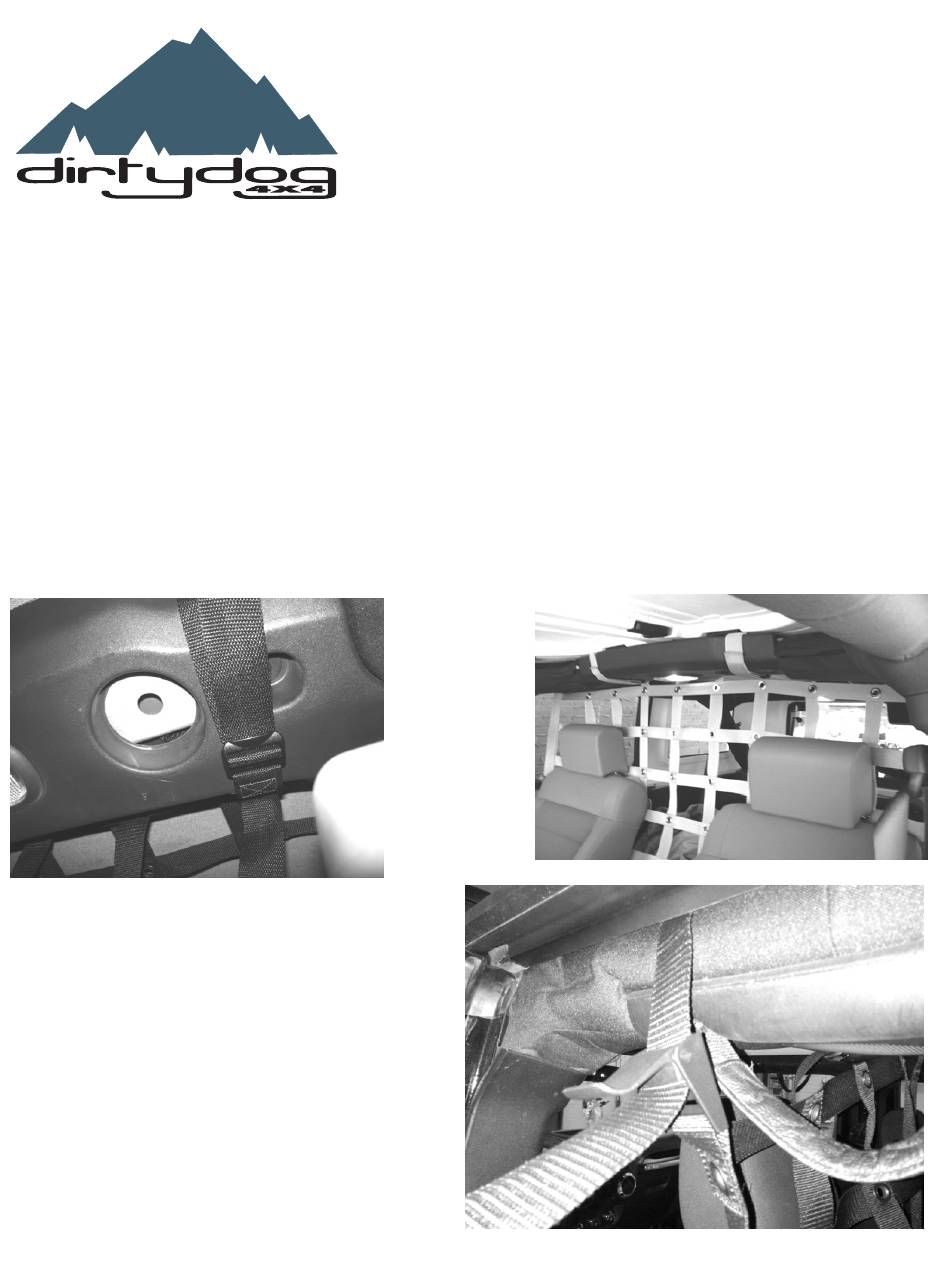

In order to position the net properly. The dirtydog logo faces
forward. There are 2 long straps at the top that wrap over the
roll bar and connect to the ladderloc sewn onto the net.Center
them and snug them up.
The two straps that run out
horizontilly at the top go over
top the roll bar and come out
around the side. These connect
into the cam buckles on the
net. (see Photo). Tighten up
both sides and postion the net
so everything is centered and
hanging evenly.
Installation Instructions
Pet divider (front) for JK 2007-up
DD-P-JKF-07
J4PD07F1
Advertisement
Table of Contents
Summary of Contents for Dirty Dog 4x4 DD-P-JKF-07
-
Page 1: Installation Instructions
Installation Instructions Pet divider (front) for JK 2007-up DD-P-JKF-07 J4PD07F1 Thank you for purchasing a Dirtydog 4x4 netting system. Please read these instructions fully to familiarize yourself with the installation. Set aside 15 minutes for the first time you install your pet divider. - Page 2 The long straps at the bottom pull down and wrap underneath the front seat seat brackets as shown. The JK and JKU have different style seat brackets. As seen in the two photos. The straps come back up and connect into the lower Cam buckle. On the 4 dr unlimited wrap the strap around...
