Summary of Contents for Firefly Electric Handcycle

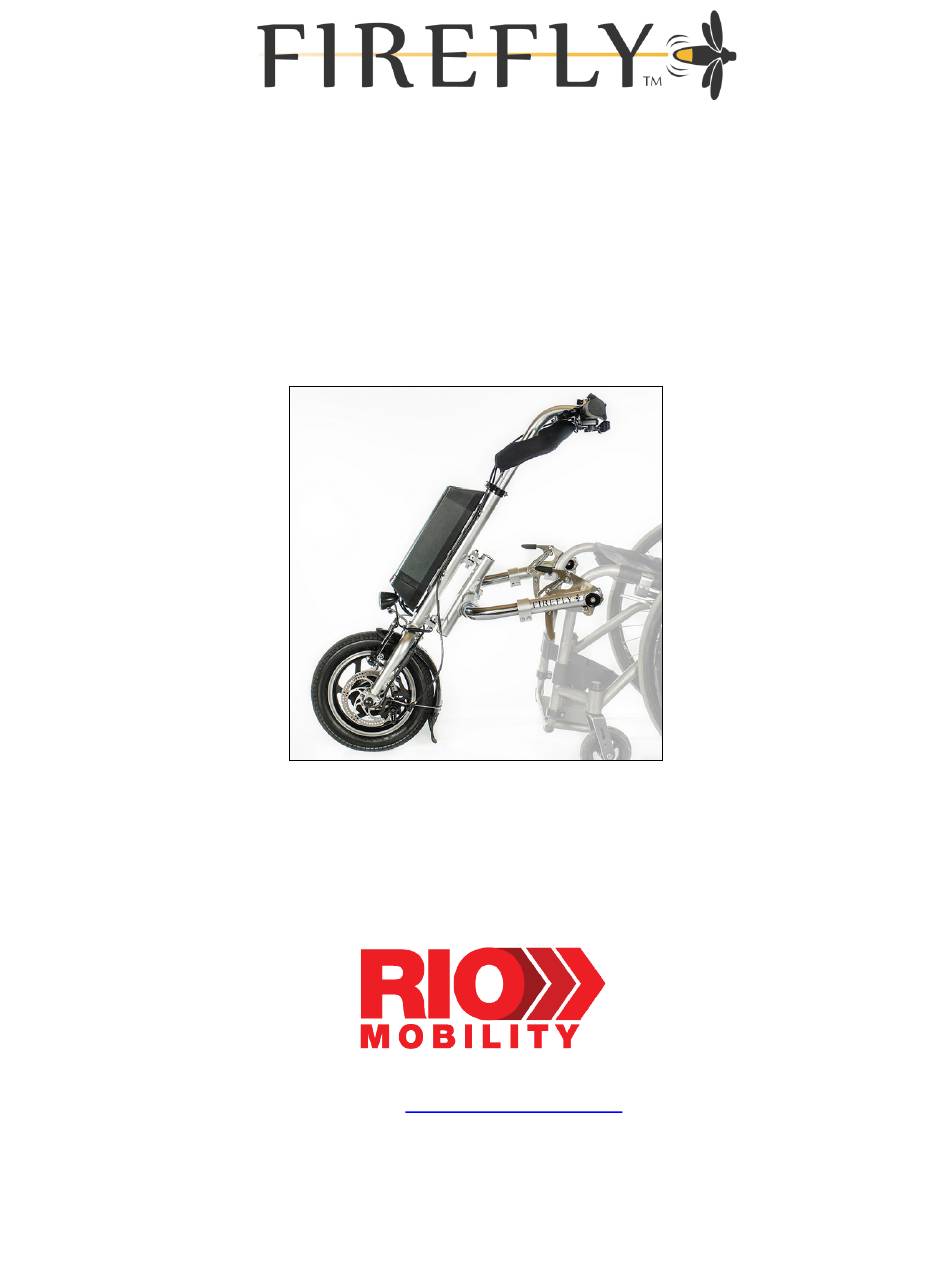

- Page 1 Electric Handcycle User Manual Phone: 415-552-6277 Email: sales@riomobility.com Website: www.riomobility.com...
- Page 2 IMPORTANT! Consult with your health care professional to determine if the Firefly appropriate for you. DO NOT OPERATE THIS EQUIPMENT WITHOUT FIRST READING AND UNDERSTANDING THIS MANUAL. IT IS RECOMMENDED THAT INITIAL SETUP OF THIS HANDCYCLE BE PERFORMED BY A QUALIFIED TECHNICIAN, SUCH AS A WHEELCHAIR OR BICYCLE MECHANIC.
-
Page 3: Wheelchair Requirements
If your wheelchair is not listed, please contact customer service at sales@riomobility.com. Frame Configuration The Firefly can accommodate chairs of seat width 35.5 cm-55.8 cm / 14 inches-22 inches. If your chair falls outside this range, contact customer service. - Page 4 2. Installing The Firefly Visit our website for the Firefly installation video: www.riomobility.com FRAME QUICK COUPLERS RELEASE PIN BATTERY HEADLIGHT V - BRAKE BRABRAK DISC BRAKE FRAME CLAMPS & PINS FRAME ADJUSTMENT SCREWS...
- Page 5 The optimal installation angle for your wheelchair attachment Good: 1) The chair clamps mounted high on straight tubing 2) Tire is as close to the foot rest while still allowing ample foot clearance from the tire while steering 3) The handlebar is high enough to clear the knees and allow body torso clearance when steering...
- Page 6 3. Controls *Headlight Parking Lock Switch Disc Brake V-Brake Bell Display Reverse Forward Throttle **Cruise Throttle Control *To activate the headlight: turn on the display, press and hold the UP arrow for 3~5 seconds to turn ON. Do the same in reverse to turn OFF. **To activate Cruise Control: hold the forward throttle in the same position and keep your speed constant (must be moving faster than 4mph/ 7kph.) Then push and hold the DOWN arrow until the “C”...
-
Page 7: Maintenance
F (-20 - 40 The Firefly is water-resistant, not waterproof. A light drizzle IS NOT DETRIMENTAL but it is recommended to cover the battery and controller with a plastic bag if you’re caught in a heavy rain. Clean the handcycle with a damp cloth. Do not soak or spray with water or use detergent. -
Page 8: Troubleshooting
Check that the front caster wheels are at least 5 cm/ 2 inches off the ground when the handcycle is installed. The Firefly won’t turn on. Make sure that the battery is fully charged. Ensure that both power switches (on the battery and on the handlebar) are in the ON position. - Page 9 Use your wheelchair as described in your wheelchair manual and use the Firefly in the same safe manner that you would a wheelchair with pushrims. Follow all additional warnings and instructions for the Firefly in this manual.
- Page 10 Be aware of road surfaces, especially on inclines Watch out for water, ice, and oil film. Transferring DO NOT attempt to transfer into or out of your chair with the Firefly attached. You MUST detach the handcycle before transferring.
-
Page 11: Limited Warranty
7. Limited Warranty Rio Mobility warrants the Firefly for one (1) year from the date of initial consumer purchase. This warranty covers any MANUFACTURING defects in materials and workmanship. Rio Mobility warrants the lithium Ion battery for three (3) months from the date of initial purchase.
