USAutomatic 030210 General Information

Transmitter
2-Button
Part # 030210
Made in Italy
Thank you for choosing this product.
Please read this manual carefully before using the product.
CONTENTS

1 - TRANSMITTER INTRODUCTION

1A - General information 1B -
Technical specifications 1C -

Main features

1D - Model Types
2 - SECURITY CODE
3 - PROGRAMMING
4 - BATTERY AND DIP-SWITCH ACCESS

5 - TROUBLESHOOTING

1A - General information
The Transmitter has been designed to control automatic opening
systems and anti-burglar systems.
The operating frequency is 433.92 MHz.
During installation, the receiver must be connected to the device it
controls ( gate, rolling shutters, awnings, anti-burglar appliances,
lighting ).
The transmitter security code is created by 9 ways three-position dip-
switches. This allows up to 19,683 code combinations.
All the receivers for this transmitter type can store the code for
multiple transmitters into the receiver's memory.
Each transmitter ( or its different buttons) can also be stored into
multiple receivers to perform additional functions.
99/5/CE, 89/336/CEE, 73/23/CEE and with the Part 15 of FCC
Regulations.
1B - Technical specifications
Number of keys: Supply :
Battery Type:
4-Button
Battery life:
Part # 030212
Current consumption :
Operating frequency :
Code combinations :
Modulation :
Rated e.r.p. :
Range in free space:
Operating temperature:
Overall dimensions:
Weight:

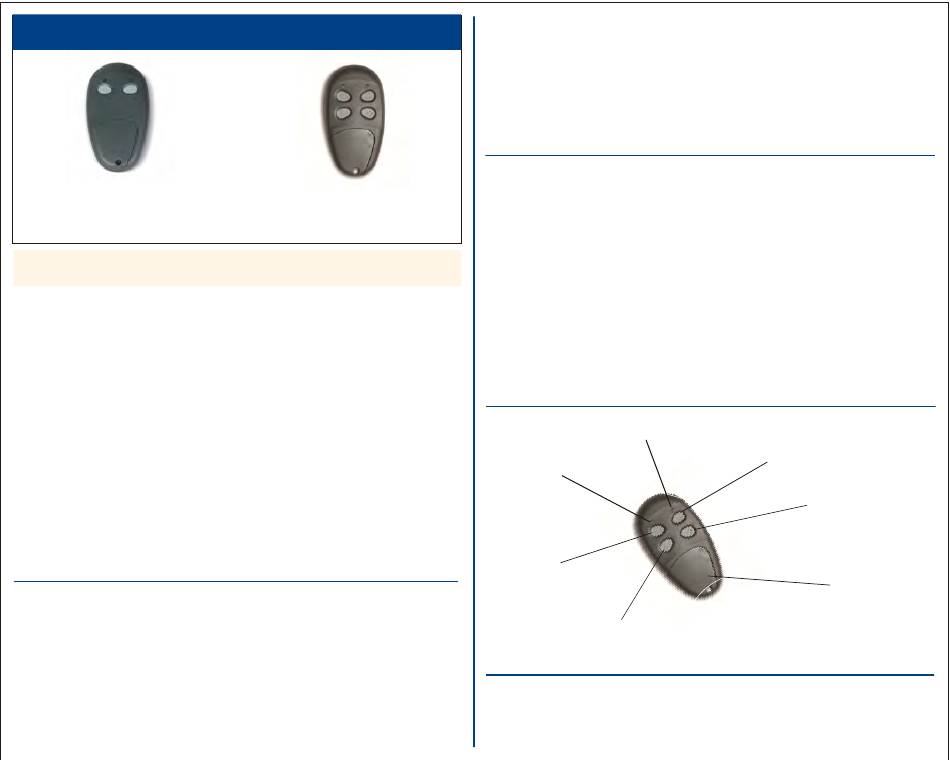

1C - Main features
BUTTON 1
CHANNEL A
1D- Model Types
2 button dip-switch transmitter : Item 030210
4 button dip-switch transmitter : Item 030212
2 / 4
1 Alkaline Battery 12V type 23A
12 - 18 months
25 mA
433.92 MHz
19683
AM / ASK
50 - 100 µW
180 - 360 feet
0 - 130 °F
3.26 x 1.88 x 0.62 in
20 gr.
RED LED
RED
LED
BUTTON 3
CHANNEL C
BUTTON 2
CHANNEL B
BUTTON 4
CHANNEL D
BATTERY
DOOR
