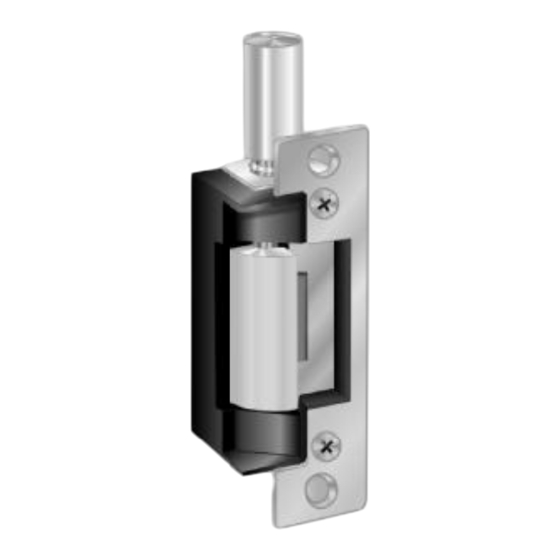

Summary of Contents for FOLGER ADAM SECURITY 500 Series
-
Page 2: Table Of Contents
500 Strike 500 Series Parts FOLGER ADAM SECURITY INC. A member of the Yale Security Group Table of Contents 500 Strike Assembly Views ....................1 500 Strike Repair Parts ......................2 500 Strike Repair Parts ......................3 500 Strike Repair Parts ......................4 500 Strike Repair Parts Kit .................... -
Page 3: 500 Strike Assembly Views
500 Strike 500 Series Parts FOLGER ADAM SECURITY INC. A member of the Yale Security Group Front View Front View Pull Type Solenoid 506 Pull Type Solenoid 501 Fail Safe - LCM Switch Fail Safe - LCM Switch Rear View... -
Page 4: 500 Strike Repair Parts
500 Strike 500 Series Parts FOLGER ADAM SECURITY INC. A member of the Yale Security Group Description Item Case 500 Mach 013-0621-001 Latch Keeper 3/4 013-0626-001 Locking Cam Pin 011-0601-001 Locking Cam Spring FS 710 FS 730 003-0209-001 Locking Cam Spring NFS 710... -
Page 5: 500 Strike Repair Parts
500 Strike 500 Series Parts FOLGER ADAM SECURITY INC. A member of the Yale Security Group Strike Frame Front View Rear View... -
Page 6: 500 Strike Repair Parts
500 Strike 500 Series Parts FOLGER ADAM SECURITY INC. A member of the Yale Security Group Description Item Front Cover Plate 008-0620-001 Back Cover Plate 008-0628-001 PHPMS 4-40 x 3/16 SST 002-2303-024 Strike Frame 013-0628-001 Connector Contact Pin 005-1707-001 Connector Plug 3 Pin 3100... -
Page 7: 500 Strike Repair Parts Kit
500 Strike 500 Series Parts FOLGER ADAM SECURITY INC. A member of the Yale Security Group Dwr. 1 Dwr. 2 Dwr. 3 Dwr. 4 Dwr. 5 Dwr. 6 Dwr. 7 Dwr. 8 Dwr. 9 Dwr. 10 Dwr. 11 Dwr. 12 Dwr. -
Page 8: 500 Strike Repair Parts Kit
500 Strike 500 Series Parts FOLGER ADAM SECURITY INC. A member of the Yale Security Group Description Item Part Number Storage Cabinet 36 Drawer 1015-0203-001 Drawer Description Qty. Part Number Latch Keeper Pin w/Notch 011-0603-001 Latch Keeper 3/4 013-0626-001 Locking Lever... -
Page 9: 500 Wiring Diagrams
500 Strike 500 Series Parts FOLGER ADAM SECURITY INC. A member of the Yale Security Group CAUTION! Installation Must Be Properly Grounded Per National Electrical Code Article 250 Attachment of New Rectifier 500 LCM Wiring Diagram (Required when supplying AC power... -
Page 10: 500 Wiring Diagrams
500 Strike 500 Series Parts FOLGER ADAM SECURITY INC. A member of the Yale Security Group Strike Wires Field Receptacle Pin Location Field Receptacle Solenoid Wires Pin Location Voltage Electrical Ratings for All 500 Strike Solenoids Resistance in OHMS ± 10% Watts 3.48... -
Page 11: 500 Strike Installation Instructions
FOLGER ADAM SECURITY INC. A member of the Yale Security Group The following instructions cover all models of the 500 series strike: 501, 502, 503, 504, 505, 506 and 508 INSTALLATION 1. For proper installation of the 500 strike refer to the appropriate template drawing. -
Page 12: Otional Features
500 Strike 500 Series Parts FOLGER ADAM SECURITY INC. A member of the Yale Security Group OPTIONAL FEATURES 1. LCM SWITCH (Locking Cam Monitor): A switch operated by the roll pin on the locking cam that monitors the position of the locking cam and signals that the strike is either locked or unlocked. -
Page 13: Lubrication And Maintenance
500 Strike 500 Series Parts FOLGER ADAM SECURITY INC. A member of the Yale Security Group MAINTENANCE AND LUBRICATION Under normal usage the 500 electric strike should be cleaned and lubricated once a year to maintain its reliability. In applications with high usage or dirty conditions are frequent service may be necessary. -
Page 14: Lubrication And Maintenance
500 Strike 500 Series Parts FOLGER ADAM SECURITY INC. A member of the Yale Security Group TO INSPECT AND LUBRICATE THE STRIKE 1. Remove the strike from the faceplate [held on by two (2) 10-32 x 3/8 FHPMS]. Remove the strike frame [held on by two (2) 8-32 x 3/8 PHPMS]. -
Page 17: Adding Switches
500 Strike 500 Series Parts FOLGER ADAM SECURITY INC. A member of the Yale Security Group ADDING SWITCHES Instructions for adding a LCM (Locking Cam Monitor) switch. Parts required: Description Qty. Part Number LCM Switch Assembly 076-1203-001 Switch Insulator 005-0719-001... -
Page 18: Changing 500 Keepers
500 Strike 500 Series Parts FOLGER ADAM SECURITY INC. A member of the Yale Security Group CHANGING AND REPLACING THE KEEPER (Special tool required! Keeper spring tool P/N 007-0010-001) TO REMOVE THE KEEPER: 1. Loosen the SSSC (setscrew) holding the keeper pin.
