Solid Signal's
WHITE
PA P E R
A Guide
to Networking

Advertisement

loading
Need help?

Need help?

Do you have a question about the DECA BROADBAND and is the answer not in the manual?

Questions and answers

Summary of Contents for Solid Signal DECA BROADBAND

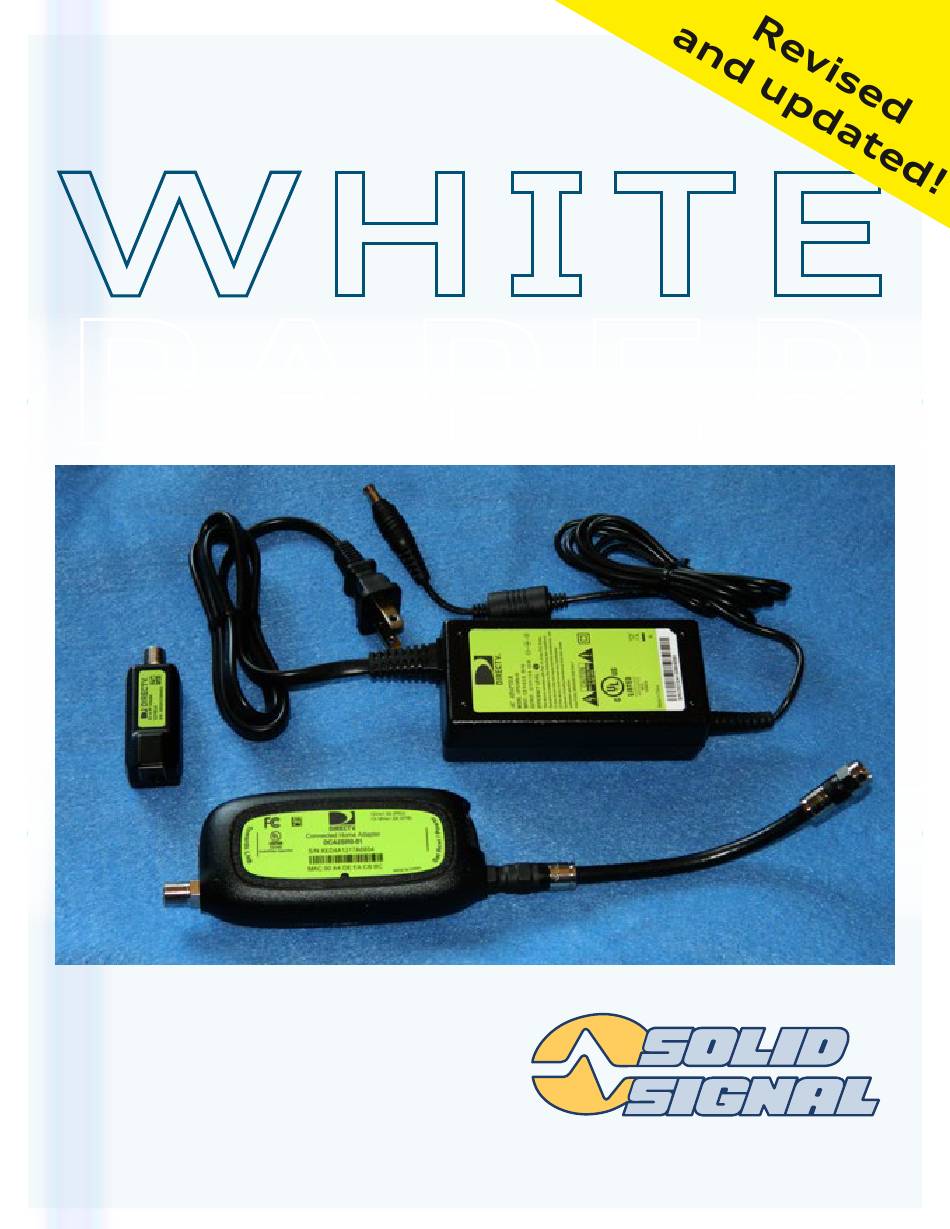

  • Page 1 Solid Signal’s WHITE PA P E R A Guide to Networking...
  • Page 2 N e t w o r k i n g c a n b e h a r d . When you’re connecting a computer network to a complex home theatre system, it can be even harder. DIRECTV provides tools and parts for connecting its receivers and DVRs, but they don’t always make it easy to understand what you need to do.

  • Page 3: Connecting Via Ethernet

    I N T H E B E G I N N I N G . . . There was Ethernet. Before 2006, DIRECTV receivers didn’t have any network connections. However, almost every receiver made since then has had a jack for a plain old ethernet cable.
  • Page 4 C O A X N E T W O R K I N G “Don’t Call Me DECA” There’s a lot of confusion about the term “DECA. ” A lot of people use the term to mean networking using your satellite cables.This is actually just called Coax Networking.
  • Page 5 Both work identically. The purpose of the DECA Broadband is to give internet access to your home network. You hook up one end to a coax cable attached to your satellite dish or multiswitch, and the other end is connected via Ethernet to your router. It’s self-configuring and should “just work”...
  • Page 6 DECA Broadband to create an instant Ethernet connection. You can even plug the DECA Broadband into a switch and plug several devices into it. HR24, H24, and H25 RECEIVERS: NO DECA REQUIRED DIRECTV HR24 DVR, H24,...
  • Page 7 You can even connect via Wi-Fi. if you have an older HR34 Genie DVR, it can also connect via Ethernet and take the place of a DECA Broadband but it does not have built-in wireless.
  • Page 8 You will need the following: DIRECTV Band Stop Filter (BSFR01) from Solid Signal) The following receivers should have a band stop filter in place before you start using coax networking: •...
  • Page 9 THR22 (TiVo) You will need the following (one for every receiver that requires it) DIRECTV DECA II Ethernet to Coax Adapter DECA (DCA2SR0) from Solid Signal) You can use the older-style white-box DECAs if you have them. With all these receivers (except the HR20-100) connection is very easy. Disconnect the satellite line from the back of the receiver.
  • Page 10 ©2014, SolidSignal.com Reproduction is permitted as long as copyright information is intact. I N S T A L L I N G A D E C A The following receivers need a DECA: HR20, HR21, HR22, HR23, H21, H23, THR22 (TiVo), R22 Some cables are shown longer than actual size.
  • Page 11 You will need the following: DIRECTV Cinema Connection Kit (DECABB1R0) from Solid Signal) The easiest way to connect a DECA Broadband is to come from an open port on a splitter into the coax connection on the DECA Broadband. Connect the ethernet cable from the DECA Broadband to the router or switch, and plug the power supply into a wall outlet.
  • Page 12 ©2014, SolidSignal.com Reproduction is permitted as long as copyright information is intact. INSTALLING A DECA BROADBAND Connecting your coax network to your internet connection Some wiring and items have been omitted from this diagram in the interest of clarity. Consult other diagrams for satellite wiring.

  • Page 13: Getting Connected

    G E T T I N G C O N N E C T E D At this point, after about 5 minutes you should have all green lights on every DECA and on the CCK. If not, check your connections. A light that is not lit means that something is disconnected;...
  • Page 14 INSTALLING A WIRELESS CINEMA CONNECTION KIT The Wireless Cinema Connection Kit (CCK) can be a little harder to install. There are several choices you must make. You will need the following: DIRECTV CCK-W Wireless DECA Cinema Connection Kit (CCK-W) Within the box, you’ll find a short ethernet cable and a short coaxial cable. First, use one of the following procedures to connect the CCK to your home wireless network.
  • Page 15 ©2014, SolidSignal.com Reproduction is permitted as long as copyright information is intact. WIRELESS CINEMA CONNECTION KIT STEP 1: You must complete step 1 and step 2 STEP 1: You must complete step 1 and step 2 Some wiring and items hav been omitted from this diagram in the interest of clarity. Consult other diagrams for satellite wiring. OPTION 1: Set your router into WPS mode...
  • Page 16 INSTALLING A WIRELESS CINEMA CONNECTION KIT (STEP 2) After you have successfully joined your Wireless CCK to your home network you have two options for placement. OPTION 1: 1. If you have an open port on your splitter and do not want it in the same room as a DIRECTV receiver: 2.
  • Page 17 ©2014, SolidSignal.com Reproduction is permitted as long as copyright information is intact. WIRELESS CINEMA CONNECTION KIT STEP 2 STEP 2 Some wiring and items hav been omitted from this diagram in the interest of clarity. Consult other diagrams for satellite wiring. OPTION 1: Leave cap on port labeled “Satellite Receiver”...
  • Page 18 USING A GENIE DVR IN PLACE OF A DECA BROADBAND The Genie DVRs can be used to take the place of a DECA Broadband, because they have the same electronics as a DECA Broadband within them. Newer Genie DVRs have the option of wired or wireless, while the older HR34 Genie is wired only.
  • Page 19 ProSafe FS105 5-port 10/100Mbps Ethernet Switch (FS105) any wired switch 7 ft Enhanced Category 5 Cable - Grey (or any Cat5e or Cat6 cables (or make your own) Solid Signal Custom Cable Lengths RG6 with High Quality Solid Signal Connectors To install: 1.
  • Page 20 ©2014, SolidSignal.com Reproduction is permitted as long as copyright information is intact. PROVIDING ETHERNET USING A DECA Use a DECA Broadband or receiver DECA to connect all your devices OPTION 1: For HR24, H24, and H25, as well as Genie DVRs Note: Power adapters are not shown.
  • Page 21 I F YO U ’ R E H AV I N G P R O B L E M S. . . If you’re having problems sharing programs between your receivers, or if you’re having problems with on-demand content, you might want to try some quick diagnostic steps.
  • Page 22 SolidSignal.com is your source for DIRECTV equipment, supplies, and support. We have over 10 years’ experience in installing and supporting satellite equipment. Our technical staff is ready to answer all your questions! visit SOLIDSIGNAL.COM for the best selection of equipment and supplies for the high-end installer or do-it-yourselfer! FORUMS.SOLIDSIGNAL.COM...
