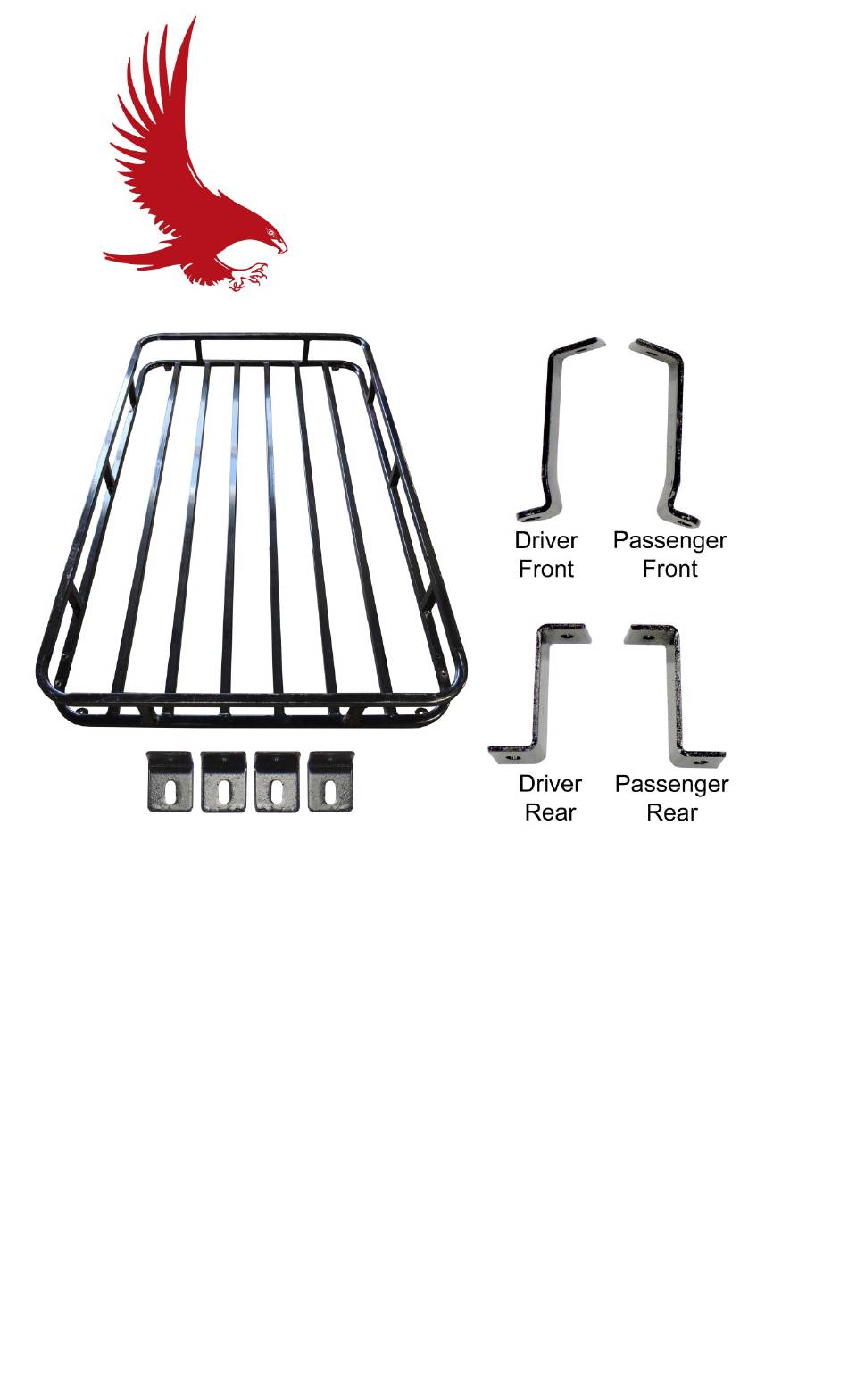

Contents of ACC-RR05 Yamaha Drive Roof Rack:
a
b
c
d
e
f
g
h
i
j
k
Caution: Please read through the instructions carefully. Look behind
each drill location BEFORE YOU DRILL. Installer is responsible for
damage (i.e. drilling into a wiring harness, battery, fuel tank etc.).
Installation Instructions
(1 ea.) Roof Rack
(2 ea.) Front Mounting Brackets
(2 ea.) Rear Mounting Bracket
(4 ea.) L-Brackets
(2 ea.) M6 x 25mm Hex Bolts
(2 ea.) M6 x 40mm Hex Bolts
(8 ea.) M6 Flat Washers
(4 ea.) M6 Lock Nuts
(4 ea.) M8 x 20mm Hex Bolts
(8 ea.) M8 Flat Washers
(4 ea.) M8 Lock Nuts
ACC-RR05
Roof Rack
Yamaha Drive
Advertisement
Table of Contents
Summary of Contents for RHOX ACC-RR05
-
Page 1: Installation Instructions
ACC-RR05 Roof Rack Yamaha Drive Installation Instructions Contents of ACC-RR05 Yamaha Drive Roof Rack: (1 ea.) Roof Rack (2 ea.) Front Mounting Brackets (2 ea.) Rear Mounting Bracket (4 ea.) L-Brackets (2 ea.) M6 x 25mm Hex Bolts (2 ea.) M6 x 40mm Hex Bolts (8 ea.) M6 Flat Washers... - Page 2 Install Rear L-Brackets and Rear Mounting Brackets 1. On the Rear Top Struts, remove the bolts, washers and nuts from the hole closest to the bend in both Struts. Retain the hardware. 2. Position (1) L-Bracket on the outer side of the Strut where the hard- ware was removed.
- Page 3 3. Position (1) L-Bracket on the inner side of the Strut where the hardware was removed. The slot will match up to the empty hole. The other side of the L-Bracket will touch the underside of the Top. 4. Mark the hole location and drill the Top as you did in the rear.
- Page 4 2. Once the Brackets are aligned, mark the hole locations on the un- derside of the square tubing of the Roof Rack for the Front Mounting Bracket holes. 3. Lower The Roof Rack to a safe, flat location and place it on a piece of cardboard to prevent from scratching the finish.
